- Page 1 iQ SONIC MAXIMIZER LO CONTOUR PROCESS iR SONIC MAXIMIZER LO CONTOUR PROCESS Sonic Maximizer iX SONIC MAXIMIZER LO CONTOUR PROCESS USER MANUAL www.aarrss.com...
- Page 2 IMPORTANT SAFEGUARDS For your protection, please read these safety product may fall, causing serious injury to a child receptacle holds the power cord plug firmly and se- instructions completely before operating the appli- or adult, and serious damage to the product. Use curely.
-
Page 3: Table Of Contents
CONTENTS Product Features ....2 Rear Panel - 282iQ ....5 Service and Maintenance ..8 BBE Process Explained ..3 Rear Panel - 282iR ....6 Warranty ......9 Front Panel ......4 Rear Panel - 282iX ....7 Specifications..... -
Page 4: Bbe Process Explained
THE BBE PROCESS — ”WHAT IT IS” Loudspeakers have difficulty working When these complex relationships BBE Sound, Inc. conducted ex- with the electronic signals supplied by pass through a speaker, the proper tensive studies of numerous speaker an amplifier. These difficulties cause order is lost. -
Page 5: Front Panel

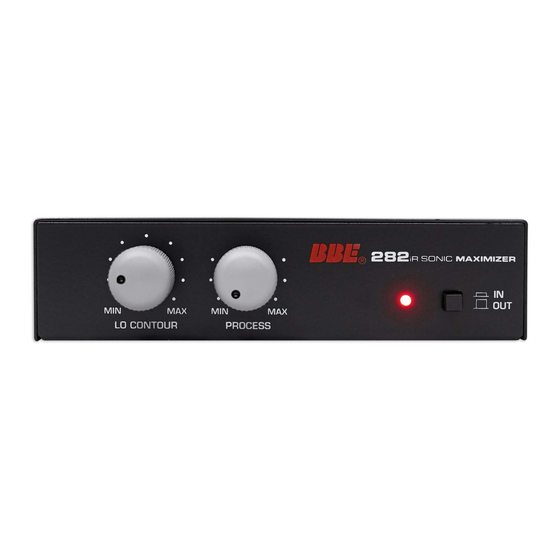

FRONT PANEL (all 282i models) LO CONTOUR CONTROL PROCESS CONTROL Regulates the amount of phase Regulates the amount of phase corrected low frequencies. corrected high frequencies. iQ SONIC MAXIMIZER LO CONTOUR PROCESS LED INDICATOR IN/OUT BUTTON When LED indicator is RED, Sonic Engages the Sonic Maximizer Pro- Maximizer function is off. -
Page 6: Rear Panel - 282Iq
282iQ REAR PANEL AC Inlet Power Switch Input and Output Connection 12 VAC only. Unbalanced ¼” Connections Left and Right. SONIC MAXIMIZER... -
Page 7: Rear Panel - 282Ir
282iR REAR PANEL Input and Output Connection Unbalanced 3.5mm Stereo Mini Jack Left and Right. (Tip = Right, Ring = Left) AC Inlet Power Switch Input and Output Connection Unbalanced RCA Connections Left and Right 12 VAC only. -
Page 8: Rear Panel - 282Ix
282iX REAR PANEL AC Inlet Power Switch Input and Output Connection 15 VAC only. Balanced XLR Connections Left and Right. SONIC MAXIMIZER... -
Page 9: Service And Maintenance
RIZATION.” Include a copy of the bill of sale with the unit not be opened for any reason unless you are a qualified when it is shipped to BBE Sound, Inc. so that the service can technician. Calibration should be performed if parts are re- be expedited. -
Page 10: Warranty
BILL OF SALE OR OTHER MEANS OF This warranty will be consider null of service. PROOF OF PURCHASE TO VALIDATE and void by BBE Sound, Inc. if any of the BBE Sound, Inc. is NOT LIABLE THE WARRANTY IF WARRANTY FOR CONSEQUENTIAL DAMAGES. -
Page 11: Specifications
SPECIFICATIONS Frequency Response ......... 5Hz to 30kHz +/-0.5dBu, -10dBu input THD in process mode ......... less than 0.1% at -10dBu input, 20-20kHz Maximum Output ......... + 23dB (282iX), +20dB (282iR and iQ) Input Impedance ......... 47k Ohms, unbalanced 1/4” phone jack, RCA jack or balanced XLR Output Impedance ......... - Page 12 5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com Covered by U.S. Patent 5,736,897 and other U.S. and foreign patents pending • BBE is the registered trademark of BBE Sound, Inc. • 282i v1 6/13...
