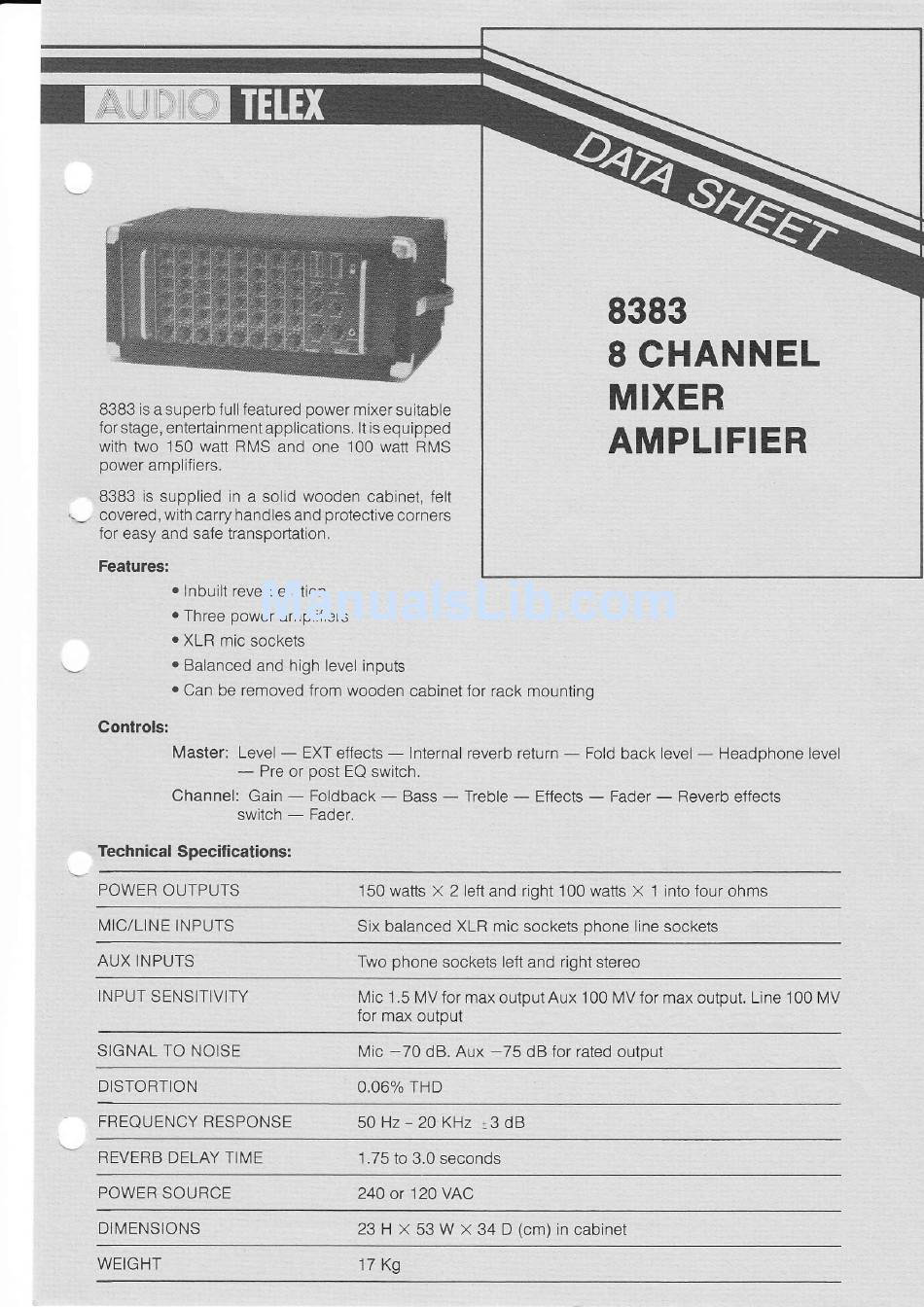

AUDIO TELEX 8383 Datasheet

8 channel mixer amplifier

Advertisement

8383
8 CHANNEL
MIXER
AMPLIFIER
8383
is a
superb tulllealured power mixersuitable
for
stage, entertainment
applications.
lt
is
equipped
with
iwo
150 watt
RN/S
and one 100 watt
RIVIS
power amplif iers.
8383
is
supplied in a solid wooden cabinet,
felt
covered, with carry handles and proteclive corners
for easy and safe transportation.
Features:
Controls:
switch
-
Fader.
Technical Specitications:
.
lnbuilt reverberation
.
Three power amplif iers
.
XLR mic sockets
.
Balanced and high level inputs
.
Can be removed from wooden cabinet for rack mountino
Master:
Level
-
EXT
effects
-
lnternal reverb return
-
Fold back level
-
Headphone
level
-
Pre
or post EQ switch.
Channel:
Gain
-
Foldback
-
Bass
-
Treble
-
Effects
-
Fader
-
Reverb eflects
POWER OUTPUTS
150
watts
x2leftand
right
100
watts
v l
intofourohms
MIC/LINE INPUTS
Six balanced XLR mic sockets phone
line
sockets
AUX INPUTS
Two phone sockets left and right stereo
INPUT SENSITIVITY
Mic
1
.5 MV
lor
max
output Aux
1
00
MV
for max oulput. Line 100 MV
for max output
SIGNAL TO NOISE
Mic
-70
dB.
Aux
75 dB for rated output
DISTORTION
0.06% THD
FREOUENCY RESPONSE
50Hz-20
KHz r3
dB
REVERB DELAY TIME
1
.75
to 3.0 seconds
POWER SOURCE
24O
ot
12O
VAC
DIMENSIONS
23H
X
53W X34D(cm)
in
cabinet
WEIGHT
17 Kg
