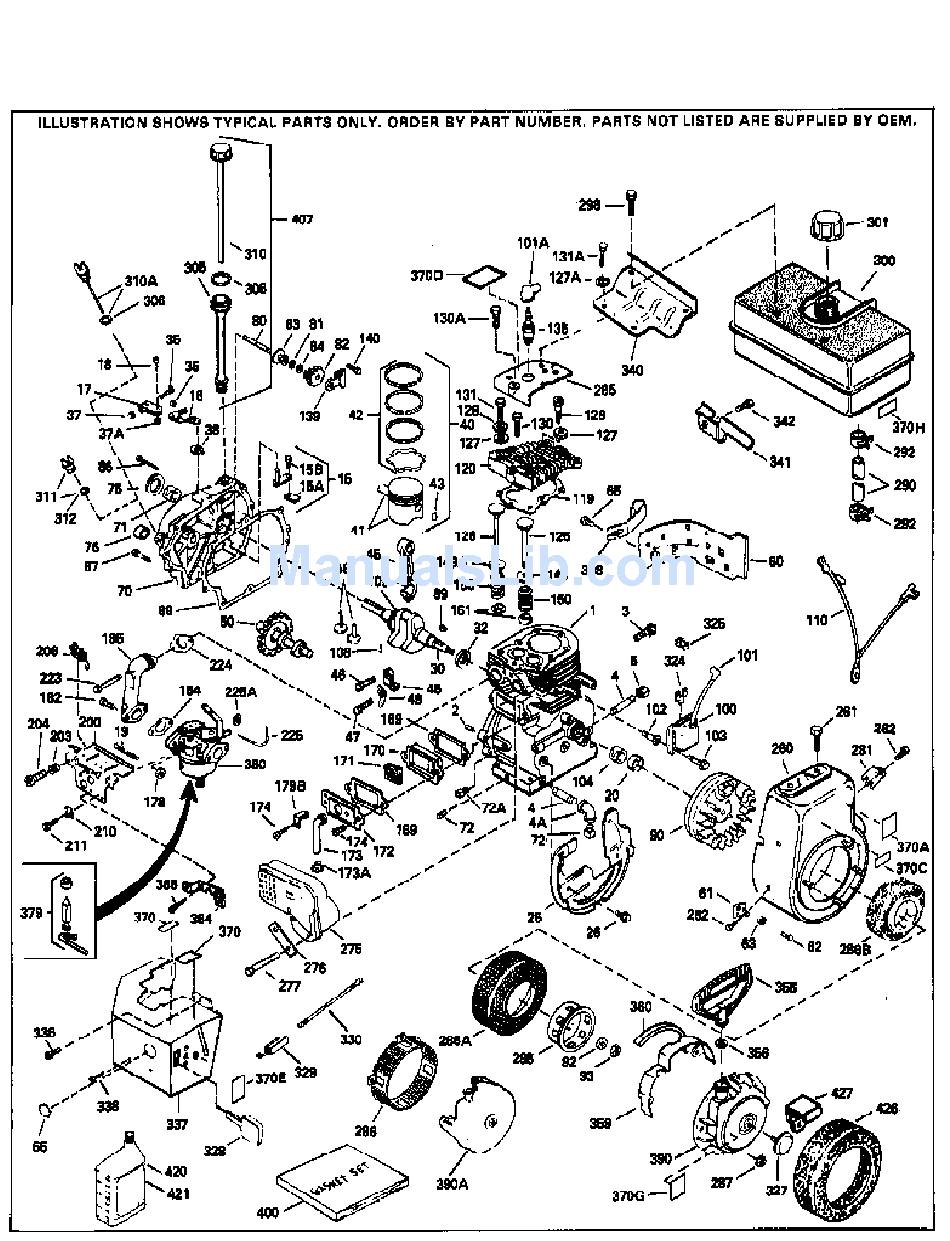

- Page 1 HM80-155267G Page 1 of 11 Engine Parts List #1...
- Page 2 32630 Seal, Oil 35256A Baffle, Blower housing 650561 Screw, 1/4-20 x 5/8" 35233 Crankshaft (Incl. 108 & 109) HM80-155267G Page 2 of 11 33628 Washer, Thrust Engine Parts List #1 29826 Screw, 10-32 x 3/4" 29918 Lockwasher, # 8 E.T.
- Page 3 650570 Washer, Flat (Use as required) 650691 Washer (Use as req., but not w/6021A screw) 650690 Washer, Belleville HM80-155267G Page 3 of 11 650727 Screw, 5/16-18 x 1-3/4" (Use as requi red) Engine Parts List #1 130A 6021A Screw, 5/16-18 x 1-1/2" (Use as required, but do notuse with...
- Page 4 1-1/2" I.D. opening use fuel cap 35355. 410144B Fuel Cap (White Plastic)(Std)(1-1/2" I.D.) 33032 Fuel Cap (Red Plastic) (Spurt Resistant, Low Profile) HM80-155267G Page 4 of 11 (1-3/16" I.D.) Engine Parts List #1 34210 Fuel Cap (Red Plastic) (Spurt Resistant, High Profile) (1-3/16"...
- Page 5 A.C. Lighting Connector (Use as required) (Refer to Mechanics Handbook for installation instructions). 611079 D.C. Charging Connector (Use as required) (Refer to HM80-155267G Page 5 of 11 Mechanics Handbook for installation instructions). Engine Parts List #1 590611 Alternator Shaft (4.00") (Use with engines equipped with cast aluminum starter)(Use as required) (Refer to Mechanics Handbook for installation instructions).
- Page 6 HM80-155267G Page 6 of 11 Engine Parts List #2...
- Page 7 Lockwasher, Heavy split, #10 (Buy loc ally) 650802 Screw, 1/4-20 x 5/8" (Use as required ) 650737 Screw, 1/4-20 x 1/2" (Use as required ) HM80-155267G Page 7 of 11 650738 Screw, 1/4-20 x 5/8" (Use as required ) Engine Parts List #2 650890 Washer, Lock, 5/16"...
- Page 8 Debris Screen (Can be used on HM80 with stamped steel recoil starter) 650907 Screw, 5/16-18 x 1-5/8" (Can be used on HM80 with stamped steel recoil starter) HM80-155267G Page 8 of 11 730130 Exh.Adapter Kit (Incl.274,277)(Use as req.) Engine Parts List #2 730572 Starter Muff Kit (Incl.
- Page 9 HM80-155267G Page 9 of 11 Engine Parts List #3...
- Page 10 Fuel Line (Braided 16")(41 cm)(Use as req.) 30962 Fuel Line (Braided 32")(81 cm)(Use as req.) 410144B Fuel Cap (White Plastic)(Std)(1-1/2" I.D.) HM80-155267G Page 10 of 11 33032 Fuel Cap (Red Plastic) (Spurt Resistant, Low Profile) Engine Parts List #3 (1-3/16" I.D.)
- Page 11 (Refer to Mechanics Handbook for installation instructions). 590636 Alternator Shaft (Use with engines equipped with stamped steel starter)(Use as required) (Refer to Mechanics Handbook for installation instructions). HM80-155267G Page 11 of 11 Engine Parts List #3...
