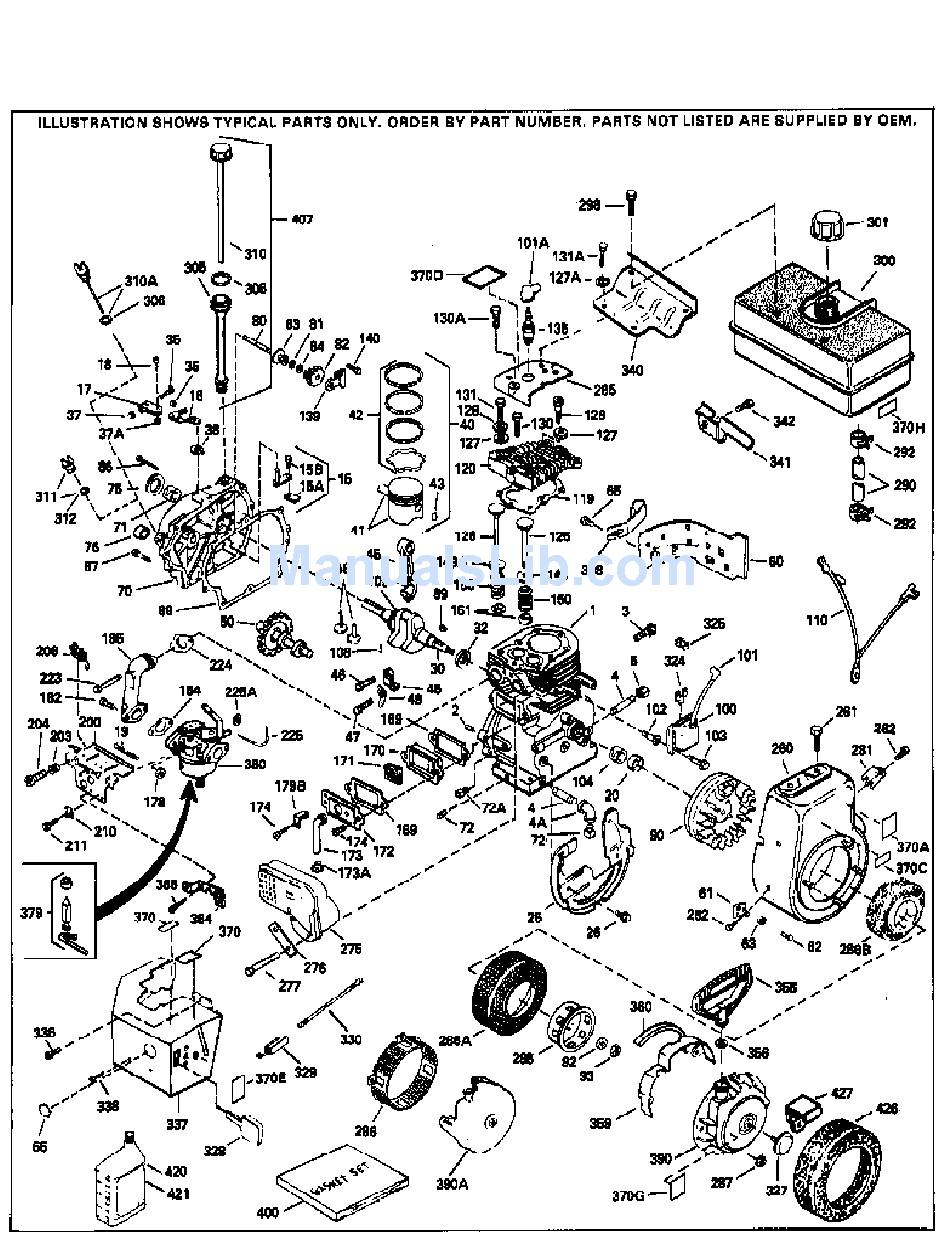

- Page 1 HM80-155162E Page 1 of 11 Engine Parts List #1...
- Page 2 Spring, Governor extension 32630 Seal, Oil 35256A Baffle, Blower housing 650561 Screw, 1/4-20 x 5/8" HM80-155162E Page 2 of 11 33365B Crankshaft (Incl. 108 & 109) Engine Parts List #1 29826 Screw, 10-32 x 3/4" 29918 Lockwasher, # 8 E.T.
- Page 3 Screw, 5/16-18 x 2" (Use as required) 130A 6021A Screw, 5/16-18 x 1-1/2" (Use as required, but do notuse with 650691 washer) HM80-155162E Page 3 of 11 131A 650713 Screw, 5/16-18 x 5/8" (Use as require d) Engine Parts List #1...
- Page 4 1-3/16" I.D. opening use fuel cap 34210. Tanks with the 1-1/2" I.D. opening use fuel cap 35355. 410144B Fuel Cap (White Plastic)(Std)(1-1/2" I.D.) HM80-155162E Page 4 of 11 33032 Fuel Cap (Red Plastic) (Spurt Resistant, Low Profile) (1-3/16" Engine Parts List #1 I.D.)
- Page 5 A.C. Lighting Connector (Use as required) (Refer to Mechanics Handbook for installation instructions). 611079 D.C. Charging Connector (Use as required) (Refer to HM80-155162E Page 5 of 11 Mechanics Handbook for installation instructions). Engine Parts List #1 590611 Alternator Shaft (4.00") (Use with engines equipped with cast aluminum starter)(Use as required) (Refer to Mechanics Handbook for installation instructions).
- Page 6 HM80-155162E Page 6 of 11 Engine Parts List #2...
- Page 7 Air Cleaner Ass'y. (Incl.238,239,240,241,243,245 & 370) (Use as required) 730164 Air Cleaner Ass'y. (Incl. 238, 239, 240, 241, 243 & 245) (Use as required) HM80-155162E Page 7 of 11 228A 650824 Stud, 1/4-20 x 7.33 (Use as required) Engine Parts List #2...
- Page 8 590609 Centering tube (Use with engines equipped with die cast aluminum starter)(Use as required) (Refer to Mechanics Handbook for installation instructions) HM80-155162E Page 8 of 11 590610 Centering tube (Use as required) (Refer to Mechanics Engine Parts List #2 Handbook for installation instructions).
- Page 9 HM80-155162E Page 9 of 11 Engine Parts List #3...
- Page 10 Ref # Part Number Description 610842 Magneto (Incl. 377 & 378) NOTE: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list. (Refer to Division 5, Section B, page 28 for breakdown or Fiche 18A-1, Grid G-1) 33371 Link, Governor...
- Page 11 Ref # Part Number Description 590609 Centering tube (Use with engines equipped with die cast aluminum starter)(Use as required) (Refer to Mechanics Handbook for installation instructions) 590610 Centering tube (Use as required) (Refer to Mechanics Handbook for installation instructions). 611078 A.C.
