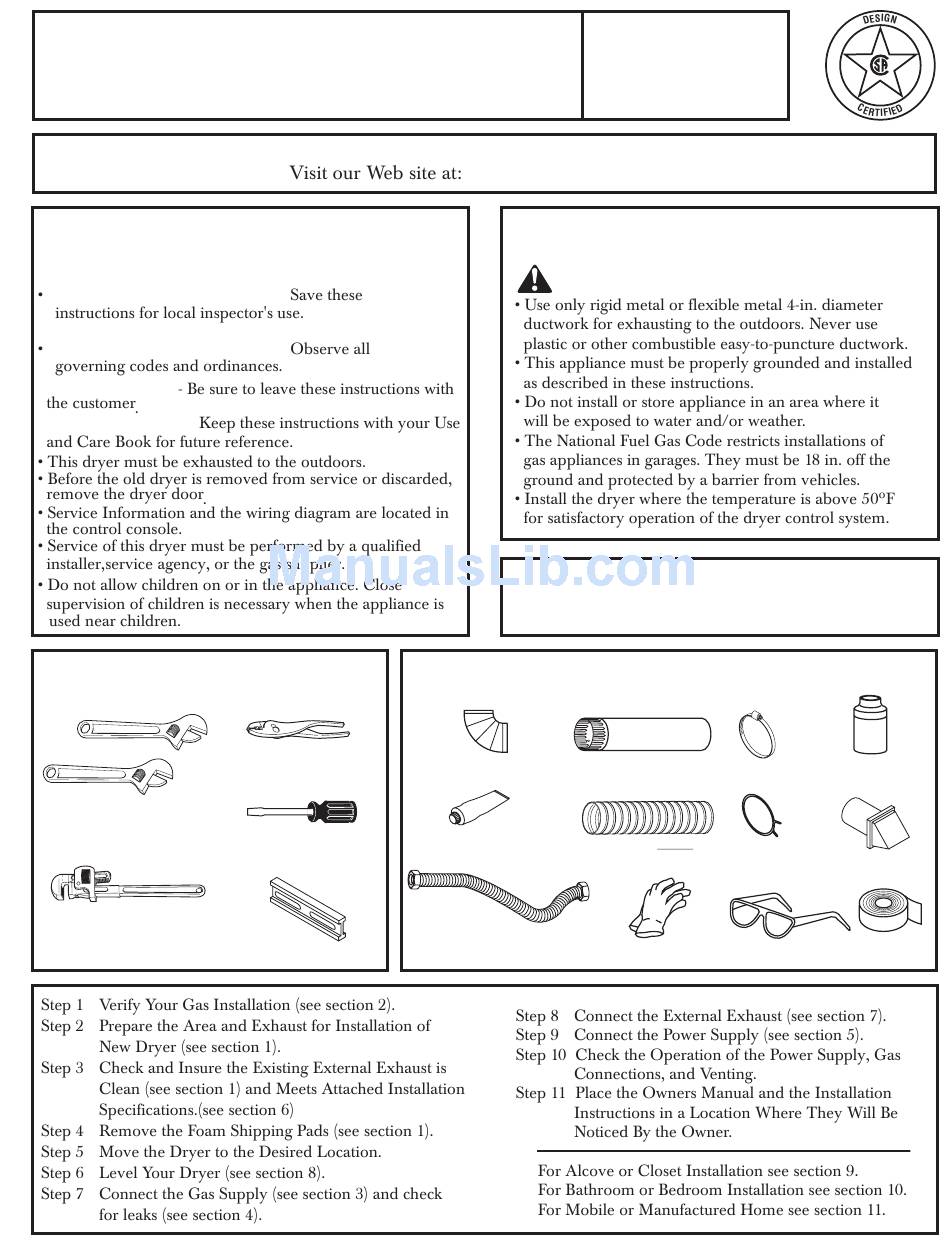

Owner's Manual
Installation
Instructions
If you have any questions, call 1-800-GECARES (US) or 1-800-361-3400 (Canada)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT -
IMPORTANT -
• Note to Installer
• Note to Customer -
TOOLS YOU WILL NEED
10" ADJUSTABLE WRENCHES (2)
8" PIPE WRENCH
or
MATERIALS YOU WILL NEED
SLIP JOINT PLIERS
FLAT BLADE SCREWDRIVER
LEVEL
Gas Dryer
www. GEAppliances.com
FOR YOUR SAFETY:
WARNING
Installation must be performed by a qualified or
licensed contractor, plumber, or gasfitter qualified or
licensed by the state.
4" DIA. METAL DUCT
4" DIA. METAL ELBOW
(RECOMMENDED)
PIPE COMPOUND
4" DIA. FLEXIBLE METAL DUCT
FLEXIBLE GAS LINE CONNECTOR
03
In the state of Massachusetts
DUCT
CLAMPS (2)
(IF NEEDED)
SAFETY GLASSES
GLOVES
SOAP SOLUTION
FOR LEAK DETECTION
EXHAUST HOOD
DUCT TAPE
Advertisement
Table of Contents
Related Manuals for Hotpoint NBXR333GGWW - 6.0 cu. Ft. Gas Dryer
Summary of Contents for Hotpoint NBXR333GGWW - 6.0 cu. Ft. Gas Dryer
-
Page 1: Gas Dryer
Gas Dryer Installation Instructions If you have any questions, call 1-800-GECARES (US) or 1-800-361-3400 (Canada) www. GEAppliances.com BEFORE YOU BEGIN FOR YOUR SAFETY: Read these instructions completely and carefully. WARNING IMPORTANT - IMPORTANT - • Note to Installer • Note to Customer - In the state of Massachusetts Installation must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or... -
Page 2: Gas Requirements
Installation Instructions Minimum Clearance Other Than Alcove or Closet Installation Minimum clearance to combustible surfaces and for air opening are: 0 in. clearance both sides and 1 in. rear. Consideration must be given to provide adequate clearance for proper operation and service. 1 PREPARING FOR INSTALLATION TILT THE DRYER SIDEWAYS OF NEW DRYER... - Page 3 Installation Instructions 3 RECONNECTING GAS Listed connector ANSI Z21.24 / CSA 6.10 FLARE 1/8" NPT PIPE PLUG FOR CHECKING GAS INLET PRESSURE 3/8" NPT PIPE SIZE PIPE SIZE AT LEAST 1/2" Note: The connector and fittings are designed for use only on the original installation and are not to be reused for another appliance or at another location.
-
Page 4: Electrical Connection Information
Installation Instructions 5 ELECTRICAL CONNECTION 6 EXHAUST INFORMATION INFORMATION Exhaust longer than specified will: • Increase the drying times and the energy cost. • Reduce the dryer life. • Accumulate lint, creating a potential fire hazard. Dryer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRI- CAL CODE, ANSI/NFPA NO. -
Page 5: Exhaust Connection
Installation Instructions 7 EXHAUST CONNECTION WARNING - TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY: • This dryer must be exhausted to the outdoors. FOR STRAIGHT • Use only metal duct. LINE INSTALLATION, • Do not terminate exhaust in a chimney, any gas vent, CONNECT THE under an enclosed floor (crawl space), or into an attic. -
Page 6: Alcove Or Closet Installation
Installation Instructions USING FLEXIBLE METAL DUCTS 9 ALCOVE OR CLOSET INSTALLATION If rigid all-metal duct cannot be used, then flexible all-metal • If your dryer is approved for installation in an alcove or venting can be used, but it will reduce the maximum closet, it will be stated on a label on the dryer back. - Page 8 PLATE (KIT WE1M454) WARNING - NEVER LEAVE THE BACK OPENING WITHOUT THE PLATE. WARNING - LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION AFTER SERVICING/INSTALLATION. Pub. # 31-16139 500A420P003...
