Hotpoint NBXR453EVAA Specification

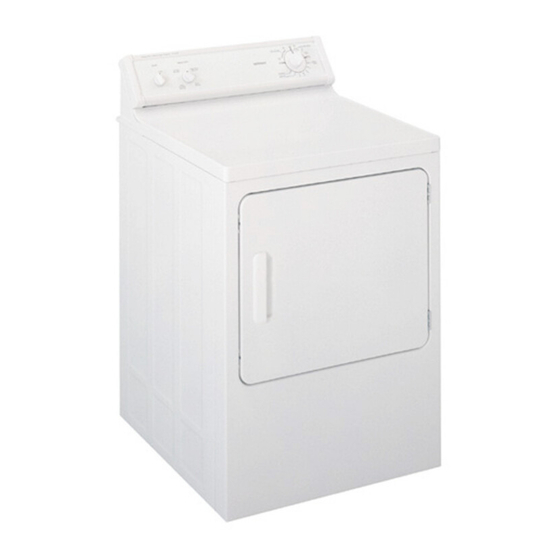

NBXR453GVWW—Hotpoint 6.0 Cu. Ft. Extra-Large Capacity Gas Dryer
Dryer Dimensions (in inches)
23-1/2 28-1/4
25-1/2
8-1/2
Side View
Specification Revised 8/99
27
42
11-1/2
36
2
3-1/2
2-1/2
Rear View

Exhaust Options:

3-way via rear, left and bottom. Dryer is shipped exhausted to the rear. Alternate exhausting knockouts are supplied.

Circuit Requirements:

An individual properly-grounded branch circuit, with a three-prong grounding-type receptacle, protected by a 15- or 20-
amp circuit breaker or a time-delay fuse is required.

Gas Dryer Electric Rating:

120V, 60Hz, 15 Amp
Gas (BTU/HR): 22,000. Factory-equipped for natural gas. Tested for LP gas. LP gas supply requires a conversion kit.
Check installation instructions for correct kit and have a qualified gas technician install a conversion kit. See dryer duct-
ing information for proper installation.
Installation Information: For complete information, see installation
instructions packed with product for current dimensional data.
Best Performance
Maximum Length of 4"
Dia. Rigid Metal Duct
A
A
Exhaust Hood Type
4
Number Cat. No.
B
of WX8X59
90° (Preferred)
Domestic 2-1/2
Turns A
Dryer Models 4" Opening
0 90 ft.
1 60 ft.
Super & Extra-Large 2 45 ft.
Capacity Models 3 35 ft.
All Electric Dryers 4 25 ft.
0 45 ft.
Super & Extra-Large 1 35 ft.
Capacity Models 2 25 ft.
All Gas Dryers 3 15 ft.
0 60 ft.
1 52 ft.
Large Capacity 2 44 ft.
Electric and 3 32 ft.
Gas Dryers 4 28 ft.
Maximum Length of 4"
Dia. Flexible Metal Duct
Exhaust Hood Type
Cat. No.
WX8X59
B (Preferred) B
2-1/2" 2-1/2"
A
Opening
Opening 4" Opening
60 ft. 55 ft. 45 ft.
45 ft. 40 ft. 30 ft.
35 ft. 30 ft. 20 ft.
25 ft. 20 ft. 15 ft.
15 ft. 15 ft. 10 ft.
30 ft. 30 ft. 15 ft.
20 ft. 20 ft. 10 ft.
10 ft. 10 ft. —
— — —
48 ft. 30 ft. 18 ft.
40 ft. 22 ft. 14 ft.
32 ft. 14 ft. 10 ft.
24 ft. — — ft.
16 ft. — — ft.
R
Listed by
Underwriters
Laboratories
