Operating Instructions
Tumble dryer
Save these instructions for future reference
Dear ASKO Customer,
Thank you for choosing this quality product from Scandinavia,
which was made in Sweden.
We want you to feel assured that the inside of your new ma-
chine is just as good as the outside and that the ethics and
standards that went into the production of this machine are
just as high as the quality and performance that you will re-
ceive from it. We hope that this product will give you many
years of pleasure.
To ensure that you get the most out of your new machine, we
recommend that you read the operating instructions before
using the machine. The operating instructions also contain
information on how to avoid damaging the environment.

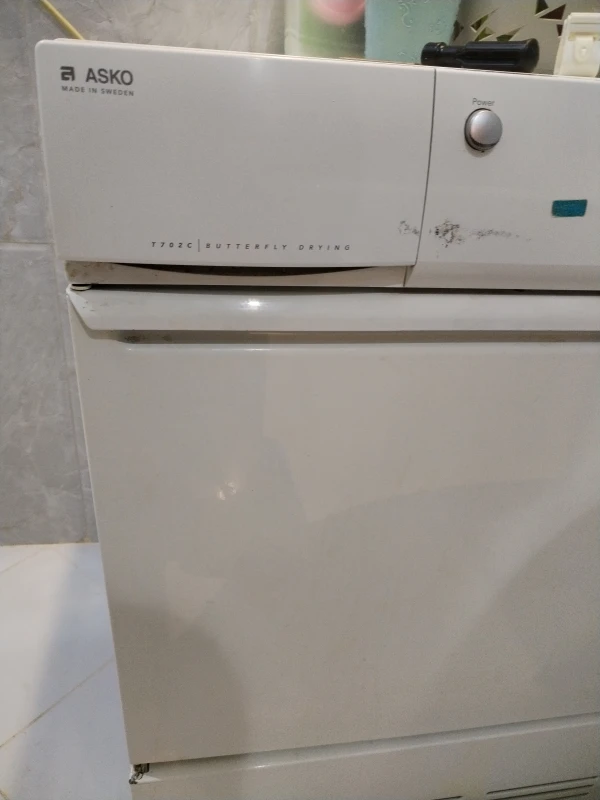

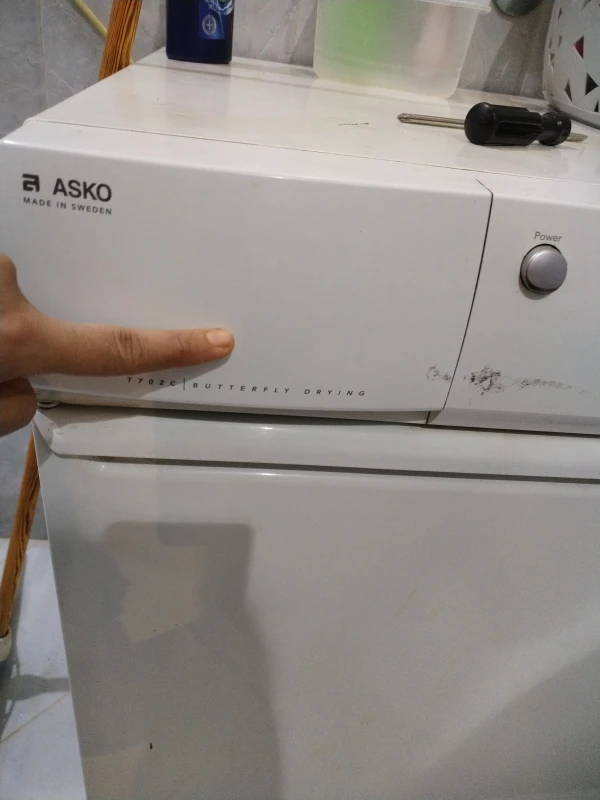

ASKO T702C
Advertisement
Table of Contents
Related Manuals for Asko T702C
Summary of Contents for Asko T702C
-
Page 1: Operating Instructions
Operating Instructions Tumble dryer Save these instructions for future reference Dear ASKO Customer, Thank you for choosing this quality product from Scandinavia, which was made in Sweden. We want you to feel assured that the inside of your new ma-... -
Page 2: Table Of Contents
Technical information Packing material Technical data Disposal Service and guarantee Child safety Warranty General How to contact the ASKO Appliances Inc. Description of the tumble dryer Installation instructions Front panel Positioning the tumble dryer Options button Adjusting the feet Advice and tips before you... -
Page 3: Before Using Your Machine For The First Time
Before using your machine for the first time Do you need this Use&Care Guide in spanish? Log onto www.askousa.com/customercare to download. ¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askousa.com/customercare y descárguesela. Do not tumble dry Certain materials are not suitable for tumble dry- ing. -
Page 4: Important Safety Instructions
See the "Installation" chapter. • The interior of the machine should be cleaned Warning! periodically by an authorized ASKO service agent. WARNING - To reduce the risk of fire, electric • Do not place items exposed to cooking oils in shock, or injury to persons when using your appli- your dryer. -
Page 5: Grounding Instructions
Important safety instructions B) Grounding instructions for a Grounding instructions permanently connected appliance: A) Grounding instructions for a grounded, This appliance must be connected to a grounded cord-connected appliance metal, permanent wiring system, or an equipment- In the event of malfunction or breakdown, grounding conductor must be run with the circuit grounding will reduce the risk of electric shock by conductors and connected to the equipment-... -
Page 6: Child Safety
Child safety General Do not allow children to play with the tumble dryer. The tumble dryer does not start automatically when the door closes (for example, if a child closes the door from inside). The tumble dryer has a magnetic catch, which allows the door to be opened from the inside. -
Page 7: Description Of The Tumble Dryer
Description of the tumble dryer Panel Outer door Condensed water container Fan (behind hatch) Serial number tag and rating plate Condenser (behind the front plate) Lint filter holder Lint filter Customer Care Center 1-800-898-1879 www.askousa.com... -
Page 8: Front Panel
Front panel Main power switch Options button Program selector Start/Stop Options button Button for selecting Low Temperature Customer Care Center 1-800-898-1879 www.askousa.com... -
Page 9: Advice And Tips Before You Tumble Dry
Advice and tips before you tumble dry Here are some tips that may help you before you Materials that should not be tumble begin tumble drying. dried Have the clothes been spun? This symbol means that the material is not suitable for tumble drying. -
Page 10: Operating Instructions
Operating instructions Warning! Auto Normal and Auto Delicate These programs shut off the heat once the load To reduce the risk of electric shock or injury to is dry but before it is "bone-dry". The Auto Normal persons, read the "Important Safety Instructions" program shuts off the heat slightly later than Auto section before operating this appliance. - Page 11 Operating instructions Program chart Here we present a few examples of the energy and time consumption of a few different program settings. Consumption can vary due to room temperature, humidity, load, variations in the power supply, and se- lected options For the consumption values given below, the requirements are as follows: Temperature of intake air:...
-
Page 12: Selecting Options
Operating instructions Selecting Options Press the Start button By selecting options, you can tailor drying Stopping or changing a program programs to suit your own laundry require- Press and hold the Start/Stop button for ments. The machine remembers the selected three seconds. -
Page 13: Drying Program Finished
Operating instructions Drying program finished To install the automatic drain hose, please see the section titled Installation Once drying has finished Important! • Clean the lint filter after each load. Turn off the main power switch. Remove the clothes and close the door to prevent Caution! small children from climbing into the machine. -
Page 14: Care And Maintenance Instructions
Care and maintenance instructions Cleaning the lint filter Cleaning the outside of the machine The lint filter must be cleaned after each load. If Clean the outside of the machine and the program you have very hard water, this can cause panel with a mild cleaner. -
Page 15: Cleaning The Condenser
Care and maintenance instructions 5. Replace the condenser. When refitting the Cleaning the condenser condenser, check that it is replaced correctly. The condenser should be cleaned at least three The top of the condenser is labeled "upp", "up", times a year. If you have pets, the condenser must and "oben". -
Page 16: Troubleshooting
Troubleshooting The machine will not start The laundry does not dry, or is too Check • that the door is properly closed. • The door has been opened while the program • that the main power switch is on. is running, which disrupts the moisture monitor- •... -
Page 17: Technical Information
Technical information Technical data Height: 33 1/2'' (850mm) Width: 23 7/16'' (595mm) Depth: 23,0" (585mm) Weight: 104lb (47kg) Cylinder volume: 29,3gal (111l) Max. drying capacity: 13lb (6kg) Speed: 52 rpm Rated power: See serial number tag and rating plate. Drum material: Stainless steel Outer casing material: Powder-coated and hot-galvanized sheet steel or... -
Page 18: Service And Guarantee
ASKO replacement parts (labor cost not included) for the stainless steel tank if it exhibits a manufactur- ing defect such as cracking or rusting through. Ser- vice must be provided by an authorized ASKO ser- vice agent. For non-residential installations One-year Full War-... -
Page 19: Warranty
• Replacement parts or repair labor costs for units operated outside the continental United States. • Pickup and delivery. ASKO washers are de- signed to be repaired in the home. In no event shall ASKO Appliances Inc. be responsible for any incidental or con- sequential damages. -
Page 20: Installation Instructions
WARNING - Risk of fire. B. Stacked Install the clothes dryer according to the manufac- The tumble dryer can be placed on top of a ASKO turer's instructions and local codes. washing machine. To stack the dryer, you need Do not install a clothes dryer with flexible plastic the stacking attachments (foot cups and anti-tip venting materials. - Page 21 Installation instructions C. Built-in ASKO dryers can be installed beneath a cabinet or worktop with a minimum height of 34” (864 mm). There must be a gap of about 1/2” (12 mm) all around the machine, including between the rear edge of the machine top panel and the back wall.
- Page 22 Installation instructions How to assemble the stacking kit: 5. Fit the plastic cups so that the "tags" marked 1. Undo the anti-tip device. with arrows are against the front edge or side edge of the cover and press them firmly onto the cover.
-
Page 23: Adjusting The Feet
(rated 208–240 V.) To use this receptacle, you Lock nut must use the ready-fitted plug supplied with the washing machine or an equivalent. ASKO washers rated 208–240 V have two internal Condensed water fuses of 15 A each. The machine should only be connected to a Install the dryer so the condensed water will con- grounded wall socket. - Page 24 Installation instructions Electrical Connections Connecting a 3-wire Power Cord Warning! Warning! Read the Electrical requirements and grounding Before starting this procedure, be sure the power instructions before connecting the tumble dryer. is turned off at the breaker/fuse box. Electric models of the dryer are manufactured for a 3-wire connection system.
- Page 25 Installation instructions 5. Connect ground (center) wire of power supply cord to the center, silver-colored terminal screw. Tighten screw. 6. Connect the other wires to outer screws. 7. Tighten the strain relief screws. 8. Replace terminal box cover on back of dryer. 9.
-
Page 26: Reversing The Door
Reversing the door 5. Next you must move the plastic plugs on the Reversing the door upper and lower edges of the door. Use a flat The tumble dryer comes with the door hinged on screwdriver. the left. However, it is possible to change the door to be hinged on the right. - Page 27 Reversing the door 14. Replace the screw you removed in step 11. 15. Replace the lower front plate. 9. Insert the cover washer in place of the door magnet. 10. Insert the screws so that the door magnet and cover washer are held in place. 11.
-
Page 28: Quick Guide
Quick guide Fabrics Press the Start/Stop button • Dry fabrics of the same type together to ensure they dry as evenly as possible. Turn on the main power switch Drying program finished • If the Anti Wrinkle option has been select- ed, the drum will rotate for 3 seconds every minute for 2 hours after the pro- Load the laundry...
