Draytek 2800 Series User Manual page 175

4.

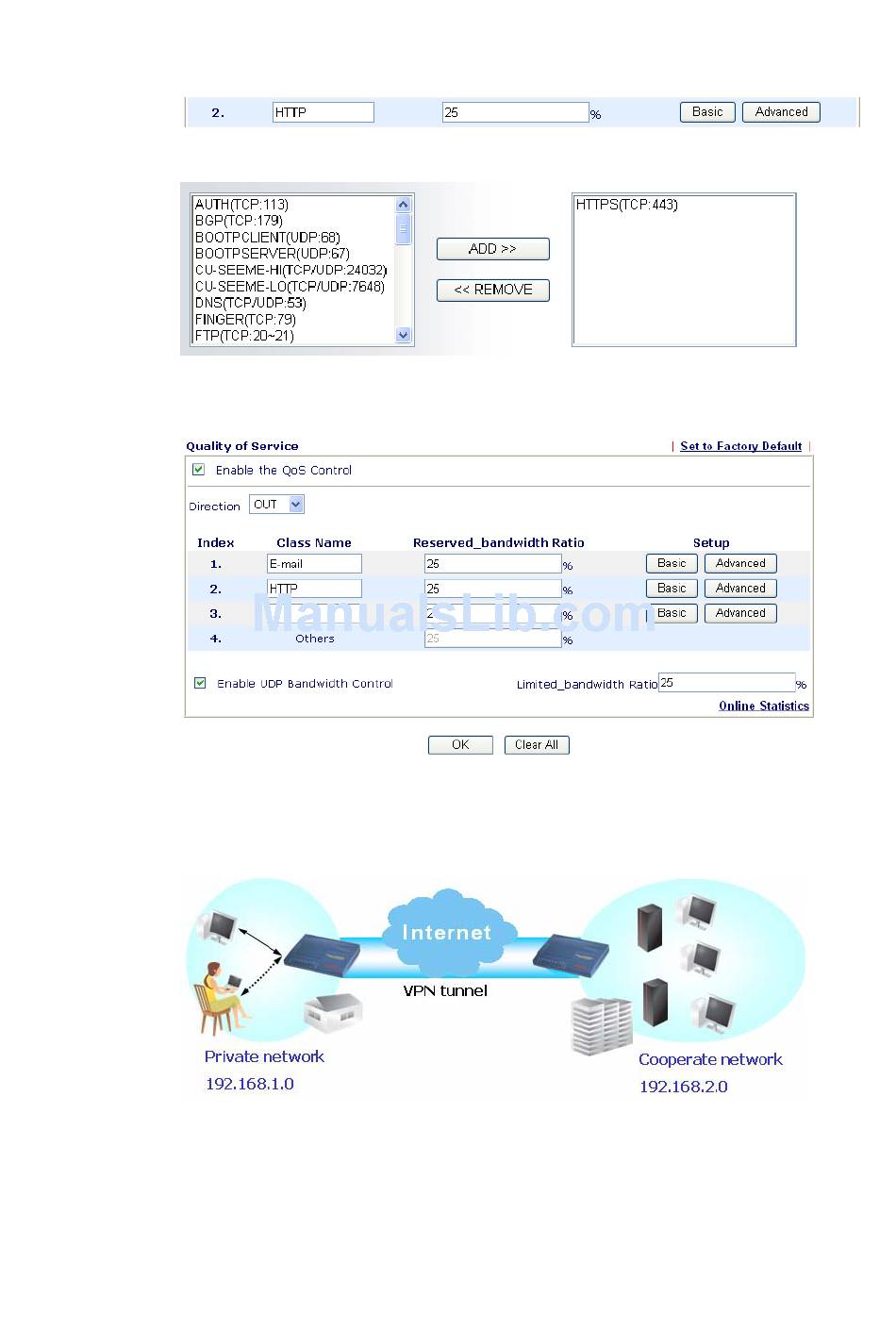

Enter the Class Name of Index 2. In this index, she will set reserve bandwidth for
HTTPS. And click Basic button on the right.
5. Select HTTPS in the list on the left column and click on ADD to add to right column.
Click OK to exit.
6. Check the Enable UDP Bandwidth Control on the bottom to prevent enormous UDP
traffic of VoIP influent other application.
7. If the worker has connected to the headquater using host to host VPN tunnel. (Please
refer to Chapter 3 VPN for detail instruction), he may set up an index for it. Enter the
Class Name of Index 3. In this index, he will set reserve bandwidth for 1 VPN tunnel.
And click Advanced button on the right.
8. Click edit to open a new window. First, check the ACT box. Then click SrcEdit to set a
worker's subnet address. Click DestEdit to set headquarter's subnet address. Leave
other fields and click OK.
Vigor2800 Series User's Guide 171
