3.2

Remote Control Panel (Master)

The Remote Control Panel can be mounted where desired using proper marine

grade mounting hardware.

For water-resistant installation, some sort of

gasketing (neoprene sheet, silicone sealant, etc.) may be used. In all cases, the

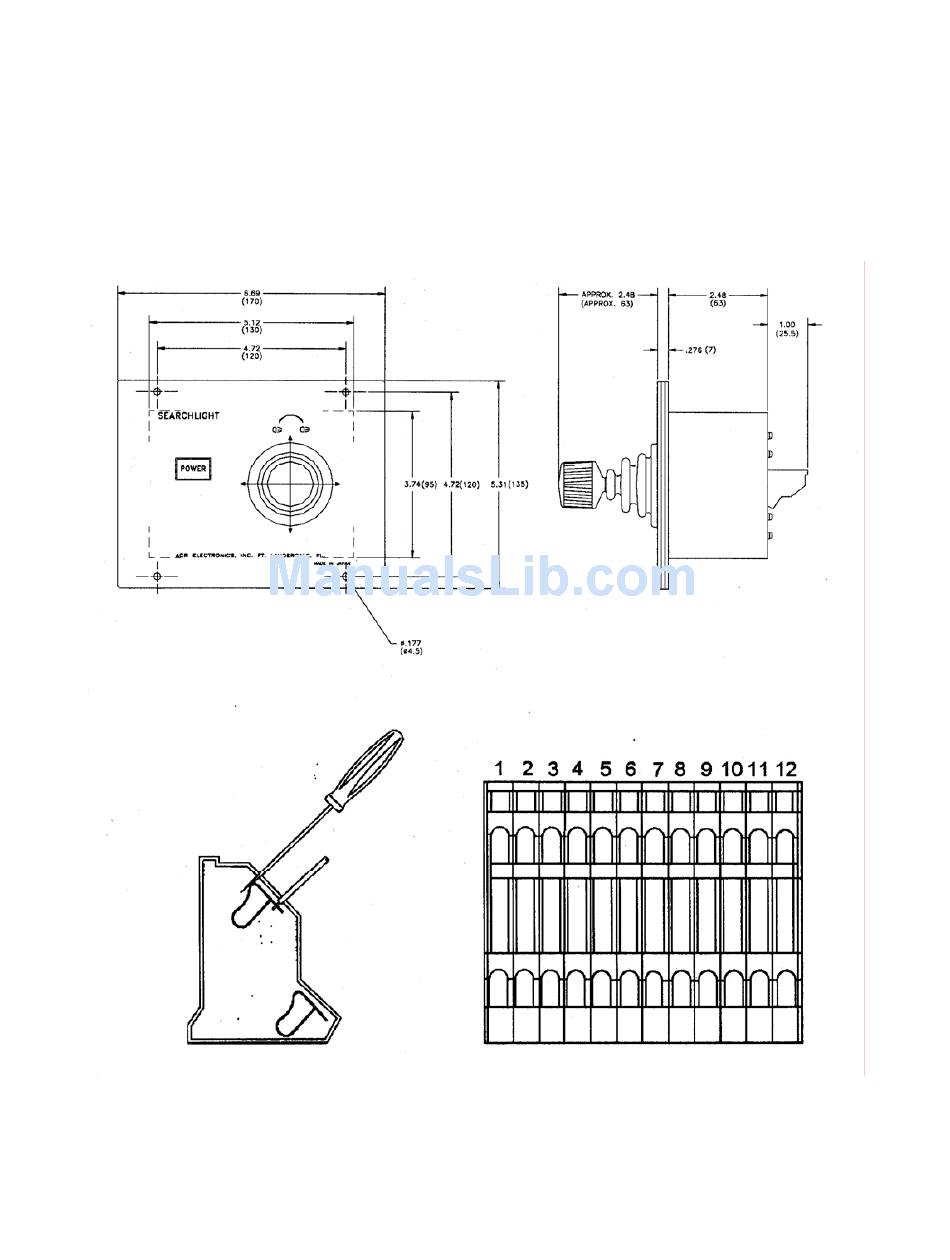

Remote Control Panel should be mounted in a protected area. Refer to Figure 2

for mounting and wiring details.

FIGURE 2

Y1-03-0139 Rev. C
