3. Safety Distances
The fl ue pipe cover has to adhere to a rear wall distance of 1
cm. For ceilings with fl ammable or combustible materials or
load-bearing elements, a minimum distance of 20 cm has to
be adhered to (see Fig. 1).
For ceilings containing fl ammable or combustible building
materials and/or load-bearing elements, the fl ue pipe con-
nection must adhere to a minimum distance of 40 cm.
For assembly and installation without fl ue pipe cover, a mi-
nimum distance of 40 cm must be kept maintained between
the connection piece to the chimney and any fl ammable or
combustible materials (see Fig. 2).
Ceiling connections are only permitted without fl ue pipe co-
ver and are subject to current local regulations.
WARNING!
Flammable fl ooring materials (e.g., wood,
laminate, carpeting,) must be protected with a
fl oorplate made of non-combustible material
(e.g., tiles, safety glass, slate, or sheet steel).
The size of the fl oorplate must be larger than
the base of the stove by at least 50 cm in front
and at least 19 cm at the sides of the stove
(Fig. 4).
32
2,5

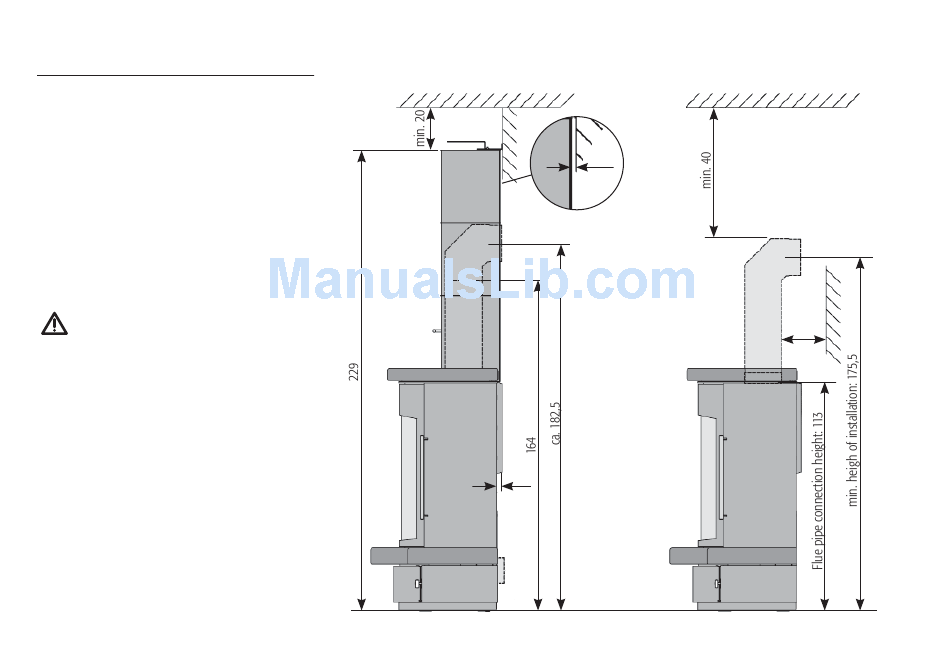

Fig. 1 Installation with flue pipe cover
1
Dimensions in cm
Fig. 2 Installation without flue pipe cover
min. 40
