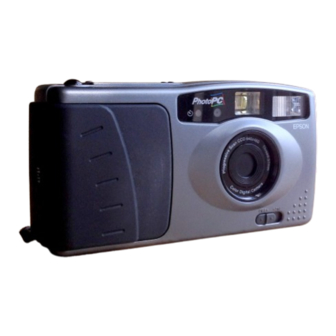

Epson PhotoPC - Color Digital Camera User Manual

red timer

Specifications

Technical
Product type CCD (charge coupled device) still frame
camera
Image size 640 x 480 pixels (high resolution)
320 x 240 pixels (standard resolution)
Bit depth 16 million colors, 24bit
S-pin DIN (camera);
Serial interface
RS-232C (computer)
Internal memory 1MB flash memory
Digital Camera
viewfinder
cover
Power switch
Optional expansion
memory
Photographic
Lens f = 6 mm (equivalent to a 43 mm lens
on a 35 mm camera)
Range 2 ft (60 cm) to infinity
Exposure Equivalent to IS0 130
Shutter
Automatic electronic shutter,
1/30 to 1/10,000 second
Viewfinder Optical
Aperture f5.6
Flash modes
Auto, forced flash, off
Flash range 3 ft to 10 ft (1m to 3m)
Physical Dimensions
Width
6.5 in. (166 mm)
Height
3.5 in. (88 mm)
1.9 in. (47 mm)
Depth
Weight 11 oz. (310g) without batteries
Power
Sources 4 AA batteries (single-use alkaline, single-
use lithium, or rechargeable NiCad)
Optional AC adapter (A882421)
Consumption
Approximately 100 milliwatt at power-on
Approximately 4 W during image
processing
Maximum
Batteries
Replace all four PhotoIT batteries with any of the following:
Caution
To amid the danger of fire or explosion, do not mix different types
batteries. Do not allow the battery contacts to touch metal objects
of
such as coins or keys, which could short out the battery's circuits.
12/95
EPSON PhotoPC
2MB (0.5MB flash memory x 4 chips)
4MB (0.5MB flash memory x 8 chips)
12 W during flash discharge
EPSON PhotoPC-1
