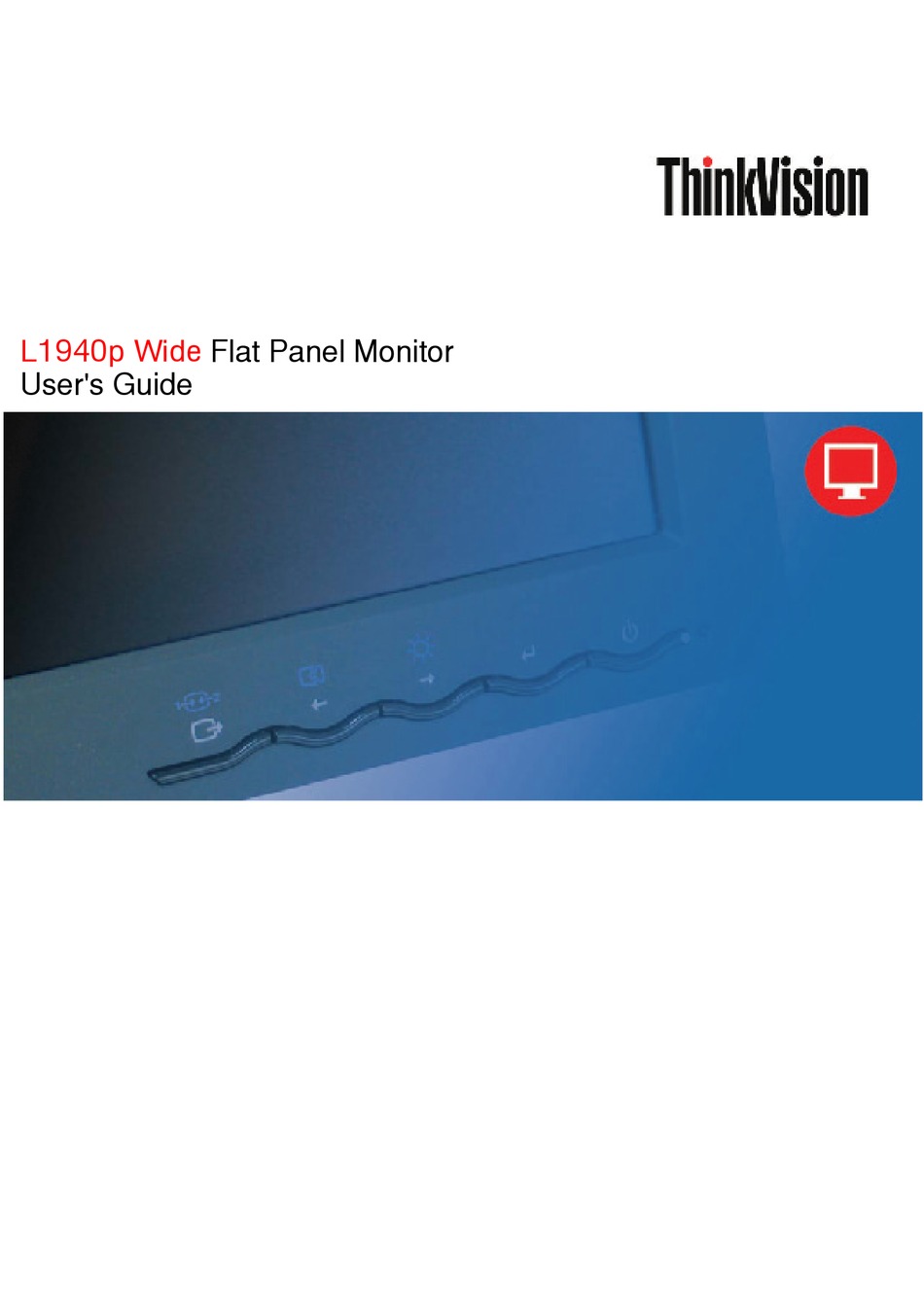

  • Page 1  L1940p Wide ...
  • Page 2 © Copyright Lenovo 2008. All rights reserved. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are asold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

  • Page 3: Table Of Contents

    Manually installing the monitor driver …………………………………………………………………… 3-4 Service information ………………………………………………………………………………………..3-7 …………………………………………..…………... Appendix A. Service and Support Online technical support ………………………………………………………………………..……………. A-1 Telephone technical support ………………………………………………………………………..………... A-1 Worldwide telephone list …….…………………………………………………………………….……… A-1 ………………………………………………………………….…… Appendix B. Notices Trademarks …………………………………………………………………………………………………… B-2 Copyright Lenovo 2008.
  • Page 4 Prije instaliranja ovog proizvoda obavezno pročitajte sigurnosne upute. sU m GanBt’ m anli ¥ t l¥ n ; mu n eBlcab; e pI þ m bBa© Ú l kmμ v i F I ii i...

  • Page 5: Important Safety Information

    Safety and Maintenance Guidelines Important Safety Information The power cord is designed for use with your monitor. To use a different cord, use only a power source and connection compatible with this monitor. WARNING: Always connect your monitor, the computer, and other equipment to a grounded (earthed) power outlet.
  • Page 6 Digital Interface Cable Cable Wrapper Cable Cover Note: To attach a VESA mount, please see “Detaching the monitor stand” on page 2-7.

  • Page 7: Product Overview

    Product overview This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock slot. Types of adjustments Tilt Please see the illustration below for an example of the tilt range. Swivel With the built-in pedestal, you can tilt and swivel the monitor for the most comfortable viewing angle.

  • Page 8: Monitor Pivot

    Monitor Pivot - Adjust height to the top position before rotation the monitor. - Rotate clockwise until the monitor stops at 90°. User controls Your monitor has controls on the front which are used to adjust the display. For information on how to use these controls, please see “Adjusting your monitor image ”...

  • Page 9: Cable Lock Slot

    Cable lock slot Your monitor is equipped with a cable lock slot located on the rear of your monitor (in the lower right corner). Please follow the instructions that came with the cable lock to attach it. Setting up your monitor This section provides information to help you set up your monitor.
  • Page 10 Connect the analog signal cable to the D-SUB connector of the monitor and the other end on the back of the computer. Plug the monitor power cord and the computer cord into grounded electrical outlets. Note: A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered.
  • Page 11 Rotate the head of the monitor into portrait view. Place the cables through the Main Clip. Then fasten the clip. Wrap the Cable Wapper around the cables. L1940p Wide Flat Panel Monitor User’s Guide...
  • Page 12 Remove the four rubbers from the stand. Replace the Cable Cover. 10. Power on the monitor and the computer. Chapter 1. Getting started...

  • Page 13: Registering Your Option

    Please take a few moments to ® register your product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you.

  • Page 14: Comfort And Accessibility

    For more detailed information on any of these topics, visit the Healthy Computing Web site at: http://www.lenovo.com/healthycomputing Arranging your work area Use a work surface of appropriate height and available working area to allow you to work in comfort.

  • Page 15: Quick Tips For Healthy Work Habits

    Accessibility information Lenovo is committed to providing greater access to information and technology to people with disabilities. With assistive technologies, users can access information in the way most appropriate to their disability. Some of these technologies are already provided in your operating system;...

  • Page 16: Adjusting Your Monitor Image

    Adjusting your monitor image This section describes the user control features used to adjust your monitor image. Using the direct access controls The direct access controls can be used when the On Screen Display (OSD) is not displayed. Note: The direct access controls are blue. Table 2-1.
  • Page 17 Table 2-2. OSD functions Controls and Controls and OSD Icon on Main Submenu Descirption Adjustments Adjustments Menu (Analog) (Digital) Same as Analog Adjusts overall brightness Brightness Brightness/ Contrast Adjusts difference between Contrast light and dark areas Control Locked- Moves the image left or Horizontal Position not required for right.
  • Page 18 Table 2-2. OSD functions Controls and Controls and OSD Icon on Main Submenu Descirption Adjustments Adjustments Menu (Analog) (Digital) This monitor can accept video signals through two Same as Analog different connectors. Most desktop computers use Input Signal a D-SUB connector. Select digital among OSD Controls when you use DVI connector.

  • Page 19: Selecting A Supported Display Mode

    Selecting a supported display mode The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes. The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using automatic image setup and the image controls.

  • Page 20: Image Rotation

    Image rotation Before rotating the monitor, you should set-up your computer to rotate the image. Rotating the image may require special rotation software or you may find that your computer is preloaded with video graphic drivers that allows image rotation. Check the Graphic Properties setting on your computer to see if this feature is available.
  • Page 21 4424-Hxx 56.1 4 02 241.1 9.50 440 2 7 34 Tilt range Range: 0°/+30° Stand Swivel Range: -45°, +45° Lift Range: 110.0 mm Pivot Yes (clock wise 90 degree) 81.4 18.95 55 2 408 2 6 07 Input signal Analog Direct Drive, 75 ohm 0.7 V 1440 pixels (max) Horizontal addressability Video input (Analog)

  • Page 22: Troubleshooting

    5% to 95% Troubleshooting If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem. Table 3-2. Troubleshooting...

  • Page 23: Chapter 3. Reference Information

    Table 3-2. Troubleshooting (continued) Problem Possible cause Suggested action Reference Screen is blank The monitor is in “Understanding power v Press any key on the and power Standby/Suspend management” on page keyboard or move the indicator is mode mouse to restore steady amber or operation.

  • Page 24: Manually Installing The Monitor Driver

    Installing the monitor driver in Windows Vista To install the device driver in Microsoft® Windows Vista, do the following: Note: You must download files from the Lenovo Monitor CD to use the Plug and Play feature in Windows Vista. 1. Turn off the computer and all attached devices.

  • Page 25: Installing The Monitor Driver In Windows Xp

    Color Matching Profiles. Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1440 x900 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

  • Page 26: Installing The Monitor Driver In Windows 2000

    Installing the monitor driver in Windows 2000 To use the Plug and Play feature in Windows 2000, files should be loaded from the Reference and Driver CD. 940pwD L1940p Wide Flat Panel Monitor User’s Guide...

  • Page 27: Service Information

    Service information Product numbers The product number for your monitor is located on the side of the display bezel as shown below. Customer responsibilities The warranty does not apply to a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.
  • Page 28 4424-Hxx Business 45J7674 L1940p FRU monitor 4424-HB6 Black 45J7675 L1940p FRU Stand Business 4424-HB6 Black assembled with base 45J7676 L1940p FRU Signal cable Business 4424-HB6 Black (Analog, 1.8m) L1940p FRU Signal cable Business 45J7677 4424-HB6 Black (Digital, 1.8m) L1940p Wide Flat Panel Monitor User’s Guide...

  • Page 29: Appendix A. Service And Support

    Telephone technical support Installation and configuration support through the Customer Support Center will be withdrawn or made available for a fee, at Lenovo’s discretion, 90 days after the option has been withdrawn from marketing, Additional support offerings, including step-by-step installation assistance, are available for a nominal fee.
  • Page 30 T T e e l l e e p p h h o o n n e e N N u u m m b b e e r r Africa Africa: +44 (0)1475-555-055 South Africa: +27-11-3028888 and 0800110756 Central Africa: Contact the nearest Lenovo service provider Argentina 0800-288-5366 (Spanish)
  • Page 31 Appendix A. Service and Support...
  • Page 32 C C o o u u n n t t r r y y o o r r R R e e g g i i o o n n T T e e l l e e p p h h o o n n e e N N u u m m b b e e r r Turkey 00800-4463-2041 (Turkish) United Kingdom...

  • Page 33: Appendix B. Notices

    Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

  • Page 34: Trademarks

    Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment. Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo ThinkCentre ThinkPad ENERGY STAR and the ENERGY STAR logo are registered US trademarks.
