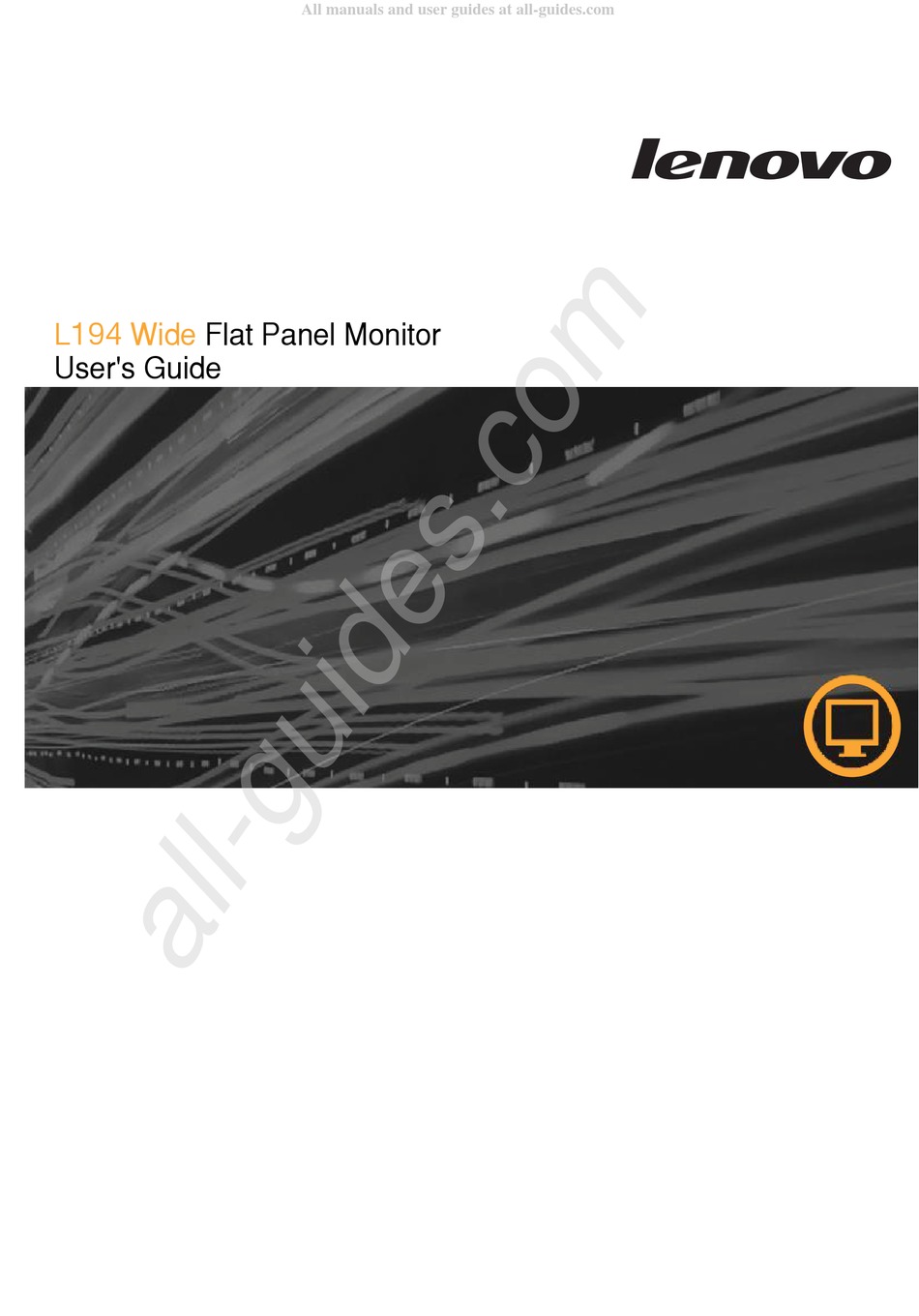

- Page 1 All manuals and user guides at all-guides.com L194 ...
- Page 2 All manuals and user guides at all-guides.com...
- Page 3 All manuals and user guides at all-guides.com...
- Page 4 All manuals and user guides at all-guides.com ii i...
- Page 5 All manuals and user guides at all-guides.com Digital Interface Cable not t...
-
Page 6: Product Overview
Your monitor has controls on the front which are used to adjust the display. For information on how to use these controls, please see “Adjusting your monitor image” on page 2-3. L194 Wide Flat Panel Monitor User’s Guide L194 Wide Flat Panel Monitor User’s Guide... -
Page 7: Cable Lock Slot
All manuals and user guides at all-guides.com Cable lock slot Your monitor is equipped with a cable lock slot located on the rear of your monitor (in the lower right corner). Please see the instructions that came with the cable lock to learn how to attach it. Setting up your monitor This section provides information to help you set up your monitor. - Page 8 N N o o t t e e : : The digital cable is included with the monitor. Insert the power cord into the monitor, then plug the monitor power cord and the computer cord into grounded electrical outlets. Power on the monitor and the computer. L194 Wide Flat Panel Monitor User’s Guide...
-
Page 9: Registering Your Option
Thank you for purchasing this Lenovo product. Please take a few moments to register your product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. - Page 10 All manuals and user guides at all-guides.com lenovo...
-
Page 11: Quick Tips For Healthy Work Habits
Accessibility information Lenovo is committed to providing greater access to information and technology to people with disabilities. With assistive technologies, users can access information in the way most appropriate to their disability. Some of these technologies are already provided in your operating system;... -
Page 12: Adjusting Your Monitor Image
All manuals and user guides at all-guides.com Adjusting your monitor image This section describes the user control features used to adjust your monitor image. Using the direct access controls The direct access controls can be used when the On Screen Display (OSD) is not displayed. - Page 13 Blue: Increases or decreases the saturation of ’blue’ in the image. • Save: Saves the custom color choices. • off native (1:1) Scaling • on expand the image to full screen L194 L194 Wide Flat Panel Monitor User’s Guide Flat Panel Monitor User’s Guide...
-
Page 14: Chapter 2. Adjusting And Using Your Monitor
All manuals and user guides at all-guides.com Table 2-2. OSD functions C C o o n n t t r r o o l l s s a a n n d d C C o o n n t t r r o o l l s s a a n n d d O O S S D D I I c c o o n n o o n n M M a a i i n n A A d d j j u u s s t t m m e e n n t t s s A A d d j j u u s s t t m m e e n n t t s s... -
Page 15: Selecting A Supported Display Mode
All manuals and user guides at all-guides.com Selecting a supported display mode The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes. The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using automatic image setup and the image controls. -
Page 16: Caring For Your Monitor
All manuals and user guides at all-guides.com Caring for your monitor Be sure to turn off the power before you perform any maintenance on the monitor. Do not: v Apply water or liquid directly to your monitor. v Use solvents or abrasives. v Use flammable cleaning materials to clean your monitor or any other electrical equipment. - Page 17 All manuals and user guides at all-guides.com 4434-Hxx 4 98 178.6 7.03 440 2 7 33 81.4 68.48 56 5 410 4 Input signal Analog Direct Drive, 75 ohm 0.7 V 1440 pixels (max) Horizontal addressability Video input (Analog) Vertical addressability 900 lines (max) Clock frequency 137MHz...
-
Page 18: Troubleshooting
5% to 95% Troubleshooting If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem. Table 3-2. Troubleshooting... -
Page 19: Manual Image Setup
All manuals and user guides at all-guides.com Table 3-2. Troubleshooting (continued) Problem Possible cause Suggested action Reference Screen is blank The monitor is in “Understanding power v Press any key on the and power Standby/Suspend management” on page keyboard or move the indicator is mode mouse to restore... -
Page 20: Manually Installing The Monitor Driver
14. Ensure that the CD drive letter is selected, and then click OK. 15. Select L194 Wide and click Next. The files will be copied from the CD to your hard disk drive. 16. Close all open windows and remove the CD. -
Page 21: Installing The Monitor Driver In Windows Xp
Color Matching Profiles. Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1440 x900 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz. -
Page 22: Installing The Monitor Driver In Windows 2000
Installing the monitor driver in Windows 2000 To use the Plug and Play feature in Windows 2000, files should be loaded from the Reference and Driver CD. 94 Wide L194 L194 Wide Flat Panel Monitor User’s Guide Flat Panel Monitor User’s Guide... -
Page 23: Service Information
All manuals and user guides at all-guides.com Service information Product numbers The product number for your monitor is located on the side of the display bezel as shown below. Customer responsibilities The warranty does not apply to a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications. - Page 24 4434 HB gned by L201p) cable (Analog) 44 (Assi D222 Wide FRU S lack 4434 H gned by L201p) Digital 1U5190 94 Wide FRU Stand 4434 H L194 Flat Panel Monitor User’s Guide L194 Wide Flat Panel Monitor User’s Guide...
