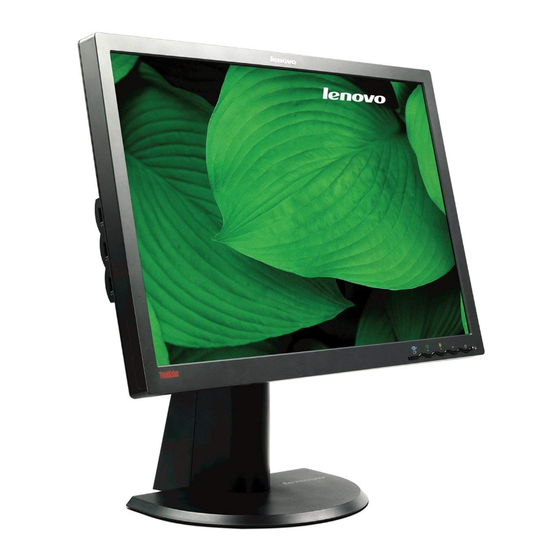

Lenovo ThinkVision L2440x Technical Specifications

A GREEN IDEA WITH
A GOLD RATING
LENOVO THINKVISION
WIDE MONITOR
As Lenovo's Greenest Monitor ever, the
L2440x Wide is Lenovo's first low halogen,
mercury-free and arsenic-free monitor.
Pioneering new energy conservation and
recycling technologies, it uses up to 60% less
power than conventional models.This new
white LED technology is the ideal choice for
environmentally conscious users and mobile
executives looking for excellent screen
performance along with up to 225% additional
work area over an ultra-portable notebook.
Attach all your latest devices with DisplayPort
and USB connectors.
FEATURES & BENEFITS
• Large display area with sharp and vivid images
• Up to 60% less power usage*
• Mercury, Arsenic and PVC free*
• Low halogen with trace levels of BFR and CFR**
• 65% recycled packaging materials
• Cables hidden for a cleaner desktop
• DisplayPort & USB connectivity
Availability: Specifications and availability may change without notice. Lenovo is not responsible for photographic or typographic errors. International Warranty Service: Available for most models in any country in which
this product is sold and serviced by authorized Lenovo agencies. Service delivery methods and parts availability vary by country, may be different from that in the country of purchase, and are subject to change without no-
tice. Fees and restrictions may apply in some countries. Warranty statements for all products are available for download from www.lenovo.com. Lenovo makes no representation or warranty regarding third party products
or services. Energy Star ™ : As an Energy Star Partner, Lenovo has determined that this product meets the Energy Star guidelines for energy efficiency. Trademarks: Lenovo, the Lenovo logo and ThinkVision are registered
of Lenovo. All rights reserved. Microsoft, Windows and Vista are registered trademarks of Microsoft Corporation. Other company, product and service names may be trademarks or service marks of others. Energy Star is a
U.S. registered trademark. * Compared with conventional LCD monitors with same size and resolution. ** Less than 900 Parts Per Million. *** English, French, Italian, German, Spanish, Japanese, Chinese, Russian.
L2440X
®
Lenovo ThinkVision
Technical Specifications
LCD PANEL
Panel Size
Aspect Ratio
Resolution
Viewable Area
Screen Dimensions (WxH)
Pixel Pitch
Dot/Pixel Per Inch (DP/PPI)
Brightness
Contrast Ratio
Viewing Angle (HxV @ CR 10:1)
Response Time (Typical)
Panel Type
POWER CONSUMPTION
Power Consumption (Typ./Max)
Power Consumption Sleep/Off Mode
Heat Dissipation (Typ./Max)
Power Supply
SIGNAL INPUT
Video Input Signals
Cables Supplied
Sync on Green
Plug 'n' Play
Preset/User Modes
OSD Menu
Lockable Controls
OSD Languages*
COMPLIANCE
TCO
EPEAT
Greenguard
Energy Star Rating
RoHS (EU 2002/95/EC)
Windows Vista ® Certification
Image Quality Capability
MECHANICAL
Tilt Angle (front/back)
Swivel Angle (left/right)
Lift
Pivot
VESA Mount
Kensington Lock Slot
USB Hub
Multimedia
Bezel Color
Bezel Width (Side)
DIMENSIONS
Size Unpacked (WxDxH)
Weight Unpacked
WARRANTY
Warranty
PART NUMBERS
Part Number
EAN EMEA
UPC US
UPC ASEAN
UPC ANZ
JAN Code
L2440x Wide
®
24" Wide
Wide (16:10)
1920x1200
24.0"/610mm
518.4 x 324.0mm
0.270mm
94
300cd/m 2
1000:1
170/160
5 ms
White LED TN
29w/45w
<1w
98.9Btu/153.5Btu
Internal
Analog+DVI-D (HDCP) + DP
Analog+DVI-D (HDCP)+DP + USB
No
DDC/CI
27/20
Yes
Yes
8
TCO' 03
Gold
Yes
4.1
Yes
Certified for Windows Vista
ISO DIS 13406-2
0˚/30˚
+/-45˚
4.33"/110mm
90˚
Yes (100mm)
Yes
Yes (4 ports)
Optional ThinkVision Soundbar
Business Black
19.9mm
559.6x257.3x394.8mm
7.78kg/17.16 lb
3 Years
4421HB2
R41HBxx
T41HBxx
0884343-07330-9
884343-07328-6
884343-07330-9
884343-07331-6
4560209592219
TVL2440X-0808-WWEN-01
®
