HP 1280 - Ultra VGA - 17" CRT Display User Manual

Hp ultra vga 1280 (d2835a/s) and ultra vga 1280 (d2836a) 17-inch color display - user guide.
Hide thumbs

D2835A/S, D2836A
HP Ultra VGA 1280 (D2835A/S) and
HP Ultra VGA 1280 with Extra Low Emissions
(D2836A) 17-inch Color Displays
(CPL July 1997)
The difference between D2835A/S and D2836A is the ergonomic rating: D2836A
is TCO '95 compliant.
Controls, Indicators, and Adjustments
The On/Off switch is on the front of the display. You can adjust the quality,
position, size, and shape of the displayed image using the drop-down control
panel on the front of the display.

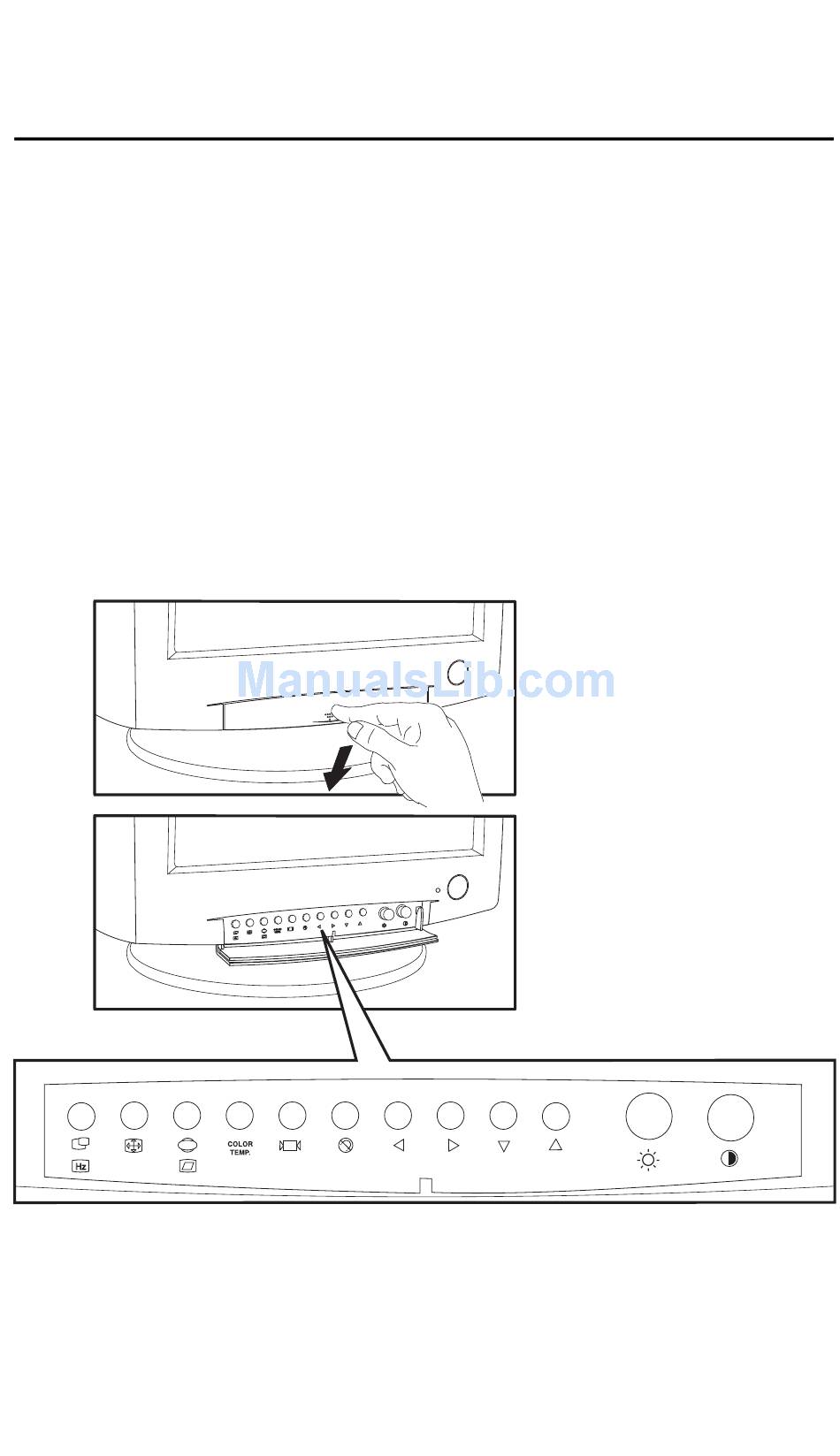

Open the control panel by pushing down the panel cover, as indicated above.
Pressing a control button displays an onscreen menu that contains information
about the display's current setting(s) for the option selected.
Certain control buttons have dual function when pressed twice. Refer to the
information below for more details.

Advertising

   Related Manuals for HP 1280 - Ultra VGA - 17" CRT Display

   Summary of Contents for HP 1280 - Ultra VGA - 17" CRT Display

  • Page 1

    D2835A/S, D2836A HP Ultra VGA 1280 (D2835A/S) and HP Ultra VGA 1280 with Extra Low Emissions (D2836A) 17-inch Color Displays (CPL July 1997) The difference between D2835A/S and D2836A is the ergonomic rating: D2836A is TCO ‘95 compliant. Controls, Indicators, and Adjustments The On/Off switch is on the front of the display.

  • Page 2

    D2835A/S, D2836A To adjust the contrast (image white level), use this CONTRAST option. To adjust the overall picture brightness (image black BRIGHTNESS level), use this option. To degauss the display, use this option. Degaussing DEGAUSS keeps the display free from unwanted magnetism that can result in color impurity.

  • Page 3

    D2835A/S, D2836A To adjust the displayed image if its vertical edges appear to bow-in or out, press once and reshape using the adjustment controls. To adjust the displayed image if its vertical edges do not appear parallel, press once and select the trapezoid option using the adjustment controls.
