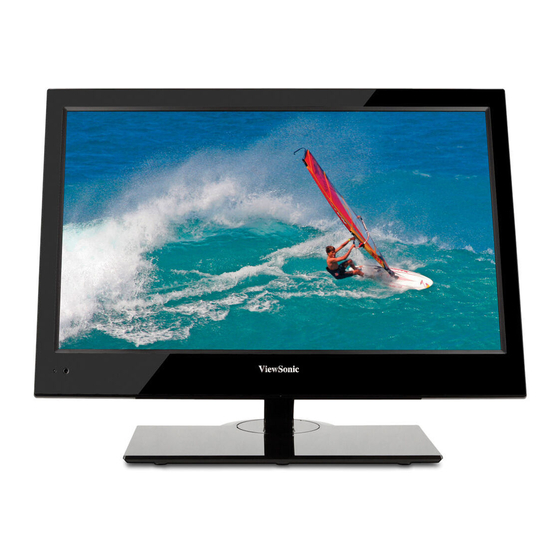

VT1901LED
LCD TV
IMPORTANT: Please read this User Guide to obtain important information on
installing and using your product in a safe manner, as well as registering your
product for future service. Warranty information contained in this User Guide will
describe your limited coverage from ViewSonic Corporation, which is also found
on our web site at http://www.viewsonic.com in English, or in specific languages
using the Regional selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en
este manual"
- User Guide
- Guide de l'utilisateur
- Guida dell'utente
Model No. : VS14565-1M
Advertisement
Table of Contents
Related Manuals for ViewSonic VT1901LED
Summary of Contents for ViewSonic VT1901LED
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
-
Page 2: Table Of Contents
Installing the LCD TV ....................2 Installing the Stand ....................2 Disconnecting the Stand .................... 2 Mounting ViewSonic LCD TV to the wall ..............3 Wall Mount Kit Specifications (VESA) ................ 4 Front View of the Product ................... 5 Rear View of the Product .................... 6 Connecting the LCD TV .................... -
Page 3: Compliance Information
To return to [Home] mode settings, select [Standard] picture mode. [Standard] mode is recommended for normal home use. Keeping the TV at its factory default settings that meet ENERGY STAR criteria. Enabling certain features and functionality of LED TV will increase its energy consumption, possibly beyond the limits required for ENERGY STAR qualification. SRS Trademark Information: • is a trademark of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc. SRS TruSurround HD™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog. ViewSonic VT1901LED... -
Page 4: Declaration Of Rohs Compliance
3. L ead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). 4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic VT1901LED... -
Page 5: Copyright Information
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation. -
Page 6: Important Safety Instructions
• When disconnecting the power cord, grasp the plug instead of Heed all warnings. pulling the power cord. Follow all instructions. • Use only an original ViewSonic AC power cord, not other Do not use this apparatus near water. brands. Clean with a soft, dry cloth. - Page 7 Some chemical cleaners have been reported to damage the • When using headphones, adjust the volume to appropriate screen and/or case of the LCD TV. ViewSonic will not be liable levels, or hearing damage may result. for damage resulting from use of these cleaners.
- Page 8 TV. If water penetrates into the product, unplug the power cord • Never place the TV in a confined space, such as a bookcase and contact ViewSonic. or built-in cabinet, unless proper ventilation is provided. • Do not operate the TV when wet. It may result in electric shock Leave some space around the TV set as shown below.
-
Page 9: Lcd Screen
It should disappear after a short period of time. • The screen and cabinet get warm when the TV is in use. This is a normal condition. • Spraying insect repellent with volatile material on the screen ViewSonic VT1901LED... -
Page 10: Getting Started
Regional selection box in the upper right corner of our website. • If you are using 300 ohm twin-lead (flat) cable, you will need 300/75 ohm adapter to connect the antenna with your ViewSonic LCD TV. About the HDMI •... -
Page 11: Installing The Lcd Tv
(see Figure 1) 2. Remove the 4 screws on the hinge, then pull up the stand slowly. (see Figure 2) 3. Then, you shall successfully uninstall the stand. (see Figure 3) Figure 3 Figure 1 Figure 2 ViewSonic VT1901LED... -
Page 12: Mounting Viewsonic Lcd Tv To The Wall
• Do not install near heat source, or strong magnetic fields. • Use only ViewSonic approved wall-mounting brackets to support the LCD TV weight. • Before attaching the wall mount plate to the back cover, ensure the product is working. -
Page 13: Wall Mount Kit Specifications (Vesa)
Use with other Wall-Mount kit may cause instability and possibly result in injury. To find the perfect mount for VT1901LED, please browse www.viewsonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775. • When purchasing our wall mount kit, a detailed install manual and all parts necessary for assembly are provided. -
Page 14: Front View Of The Product
Turn the power on from standby mode or turn the power off to return to the Power ON/OFF button standby mode. INPUT Select input source. Increase / Decrease sound volume or adjust a highlighted control while in OSD Volume Up / Down menu. ViewSonic VT1901LED... -
Page 15: Rear View Of The Product
Connect to your USB devices, such as USB flash drive. 10 YPbPr signal input Connect this port to the YPbPr output of A/V device. Connect this port to the SPDIF input of A/V device. 11 SPDIF Optical output ViewSonic VT1901LED... -
Page 16: Connecting The Lcd Tv
TV via the HDMI or component video (with audio) input on the back of your LCD TV. HDMI Connection Rear of TV HD cable box/ HD satellite box COMPONENT LINE OUT VIDEO OUT DVI-HDTV OUT AUDIO VIDEO HDMI OUT HDMI cable CATV/Satellite antenna cable HDMI cable ViewSonic VT1901LED... - Page 17 • 5-digits, please try “11454”, “11054”, or “10690”. It usually works with DIRECTV. SD DVD Player AV or S-Video Connection Rear of TV HD cable box/ HD satellite box COMPONENT LINE OUT VIDEO OUT DVI-HDTV OUT AUDIO VIDEO HDMI OUT AV cable CATV/Satellite antenna cable ViewSonic VT1901LED...
-
Page 18: Personal Computer
• For the best picture quality, we recommend that you use the signals (boldfaced) in the above chart with a 60 Hz vertical frequency from a personal computer. • Preset Timing Mode (Pre-adjusted to GTF® 1366 x 768 @ 60 Hz) ViewSonic VT1901LED... -
Page 19: Using The Tv Features
Press this button to turn the power on from standby mode. Press it again to return to the standby mode. AUTO PC source press this button to auto picture position. INFO Press this button to display the current state of the LCD TV. ViewSonic VT1901LED... - Page 20 LCD TV after a preset period of time passed. There are several times for choice – Off, 5 Min, 10 Min, 15 Min, 30 Min, 45 Min, 60 Min, 90 Min, 120 Min, 180 Min, 240 Min. ViewSonic VT1901LED...
- Page 21 Press to turn the OSD (On-Screen Display) menu Press to display channel list. 24 CH-LIST Press to change the channels up or down. 25 ▼ CH ▲ 26 RETURN Press to return to previous channel. Press to charge source to YPbPr. 27 YPbPr ViewSonic VT1901LED...
-
Page 22: Operation
5. The Initial Setup will be completed after Cannel scanning is finished. To interrupt the scanning, press MENU at any time. (See Figure3) Figure 1 Initial Setup Figure 2 Menu Language English Signal Type Auto Channel Search Execute :Change Setting Figure 3 ViewSonic VT1901LED... - Page 23 (It shows all or some of the information about Input, Channel, Resolution, Audio Type, etc., depending on what input source it is in) ＊The picture here shows an example of the INFO screen in a DTV source. ViewSonic VT1901LED...
- Page 24 2. Press ▲ or ▼ to select the required input source between TV, AV, YPbPr, HDMI, PC or Media. (When in USB input source, the system only YPbPr supports JPEG and MP3 image files.) 3. To confirm the selection, press ENTER. HDMI Media ViewSonic VT1901LED...
- Page 25 ENTER or ▼ to enter the menu. Press ▲ or ▼ to select “Show/Hide”, then press ► button to enter “Show/Hide” setting. 3. Press ▲ or ▼ to select the channel you want to Show/ Hide, and check or uncheck it with ENTER button. 4. Press MENU to exit. ViewSonic VT1901LED...
- Page 26 4. Enter the password. (The default password is 0000) 5. Move to “V-CHIP”, and select “On” to enable the detailed settings. 6. Move to “US” or “Canada” rating system. PARENTAL CONTROL Lock Parental Control V-CHIP Change Password Hotel Menu ViewSonic VT1901LED...
- Page 27 You can also customize the TV ratings for the following content: ALL ( All types content FV (fantasy violence) V (violence) S (sexual situations) L (adult language) D (sexsual dialog) 3. Press ENTER to set or reset each area. 4. Press MENU to exit. ViewSonic VT1901LED...
- Page 28 V-CHIP or ► to select “On” or “Off”. When “On” is selected, US V-Chip all programs that are not rated will be blocked. Canada V-Chip 2. Press MENU to exit. Block UnRated Show Downloadable Rating Clear Downloadable Data ViewSonic VT1901LED...
- Page 29 * When there is no signal in the PC mode, “No Signal” will be displayed on the screen and the TV will automatically turn into power-saving mode after 15 seconds’ idleness. Press POWER button on the remote control and the TV will return to VGA mode. ViewSonic VT1901LED...
- Page 30 3. Return to main menu, press ▲ or ▼ to ”--“ and press ENTER . Use ▲ or ▼ to select the MP3 files (With symbol) you want, and press 04:00/06:53 ENTER to play. 4. In Music function, press ▼ to use all of the functions to control. ViewSonic VT1901LED...
- Page 31 You can clear up analog TV signal by reducing the dot noise.This feature is not available at PC or Media source. *MPEG Noise Reduction: Off/Low/Medium/High Similar with the Noise Reduction ,you can set to reduce the block noise. ViewSonic VT1901LED...
- Page 32 * Favorite: Set the channel to your favorite list. * Label: rename label of the channel. Signal Type Set to Air or Cable according to your antenna source. Auto Channel Highlight and press ENTER to start the auto searching. Search ViewSonic VT1901LED...
- Page 33 *Digital CC Preset: Default/Custom If set to Custom, Digital CC Style is available. *Digital CC Style To select OSD language.English/Français/ Menu Language Español. Set the Time Zone/Auto Clock/Setup Time/ Clock Day of week/Daylight Saving Time. ViewSonic VT1901LED...
- Page 34 No Signal If it is set,TV will automatically enter standby after 15 Power Off minutes without signal input. TV system is reset. All Reset Audio only Hold on power key 3 second to restore video. ViewSonic VT1901LED...
-
Page 35: Other Information
Other Information Troubleshooting Please contact ViewSonic service team directly if you have questions, service needs, or require technical assistance related on the use of your television. Contact ViewSonic Service Team at: http://www.ViewSonic.com Or call our service team: United States 1-800-688-6688... - Page 36 Picture is cut off/with sidebar • Is the image positioned correctly? screen • Are screen mode adjustments such as picture size set correctly? • Press WIDE button repeatedly on the remote control to see if you can get the picture you prefer. ViewSonic VT1901LED...
-
Page 37: Specifications
Other Information Specifications Model VT1901LED Type 19” TFT Active Matrix RGB 0.3(H) x 0.3(V) mm pixel (LED Backlight) Color Pixel Arrangement RGB vertical strip Surface Treatment AG type, 3H hard coating, Haze 25 Input signal RGB analog (0.7/1.0 Vp-p, 75 ohms) Separate Sync,... -
Page 38: Customer Support
Note: You will need the product serial number. Use with other Wall-Mount kit may cause instability and possibly result in injury. To find the perfect mount for VT1901LED, please browse www.viewsonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775. -
Page 39: Limited Warranty
Replacement product or parts may include remanufactured or refurbished parts or components. How long the warranty is effective: ViewSonic LED TVs are warranted for 3 years for all parts excluding the light source and 3 years for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. -
Page 40: Mexico Limited Warranty
& accessories. How long the warranty is effective: ViewSonic LED TVs are warranted for 3 years for all parts excluding the light source and 3 years for labor from the date of the first customer purchase. - Page 41 ViewSonic Corporation Av Ferrocarril Sonora #3780 L-C 381 Brea Canyon Road, Walnut, CA. 91789 USA Col 20 de Noviembre Tel: 800-688-6688 (English); 866-323-8056 (Spanish); Tijuana, Mexico Fax: 1-800-685-7276 E-Mail: http://www.viewsonic.com 4.3: ViewSonic Mexico Limited Warranty LTV_LW02 Rev. 1A 06-25-07 ViewSonic VT1901LED...
- Page 42 ViewSonic...
