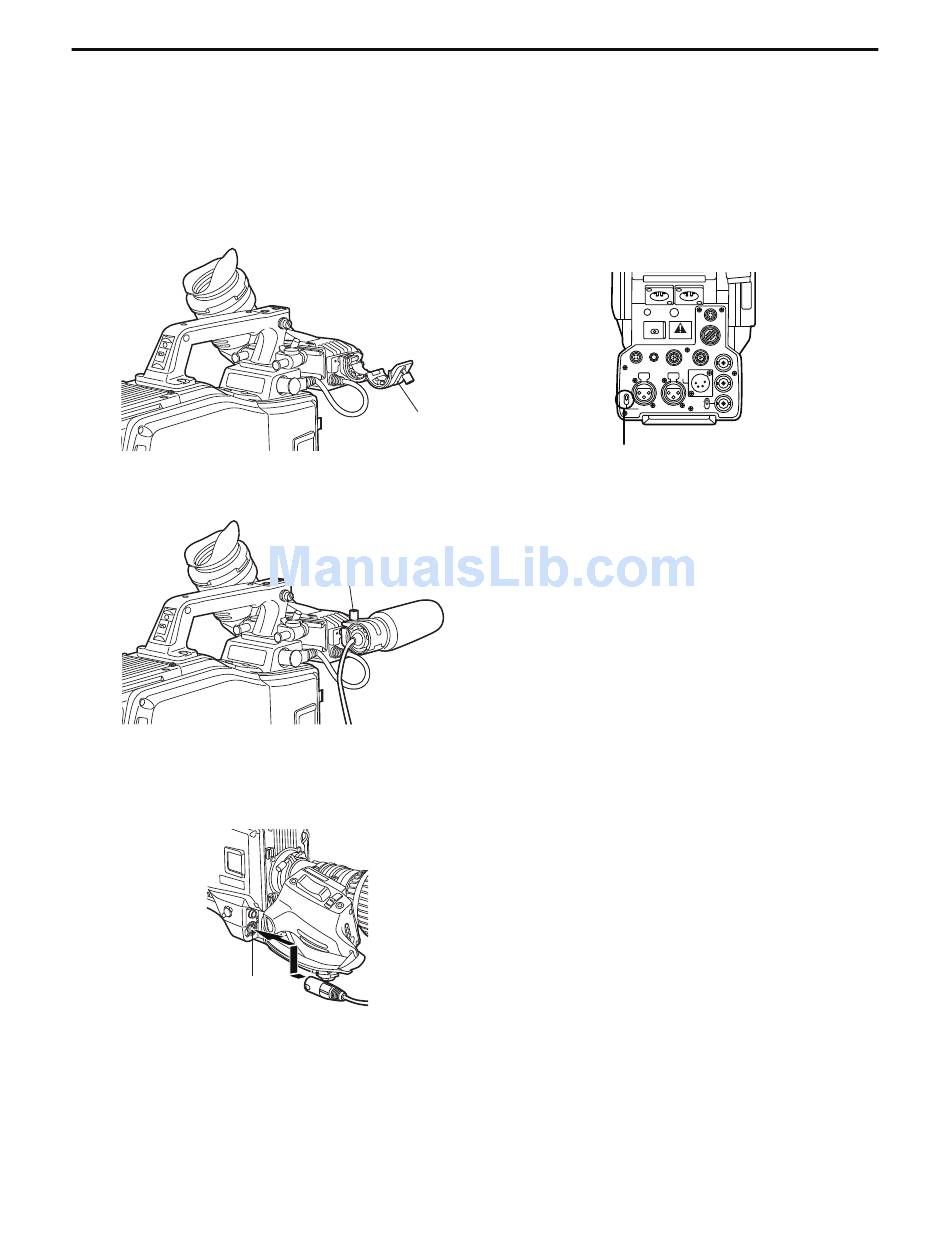

Connecting a microphone
When the microphone is mounted on the
viewfinder (optional accessory) for use
The microphone of the microphone kit AJ-MC700P (optional
accessory) can be mounted on the viewfinder.
1
Open the microphone holder.
2
Mount the microphone and tighten up the clamp screw.
3
Connect the microphone cable to the MIC IN connector
on the camera.
MIC IN connector
14
Microphone
holder
Clamp screw
4
If the audio channel whose signals are to be recorded
so requires, set the AUDIO IN switch to F.
INCOM1
POWER
CCU OFF EXT
TALLY
OUT
EARPHONE TRUNK
PUSH
F
R
MIC1
AUDIO IN switch
INCOM2
BREAKER
RET
CONT
SEE MANUAL
EXT I/O
RCB
PUSH
DC IN
PROMPER OUT
GL IN
MIC2
