1. GENERAL DESCRIPTION

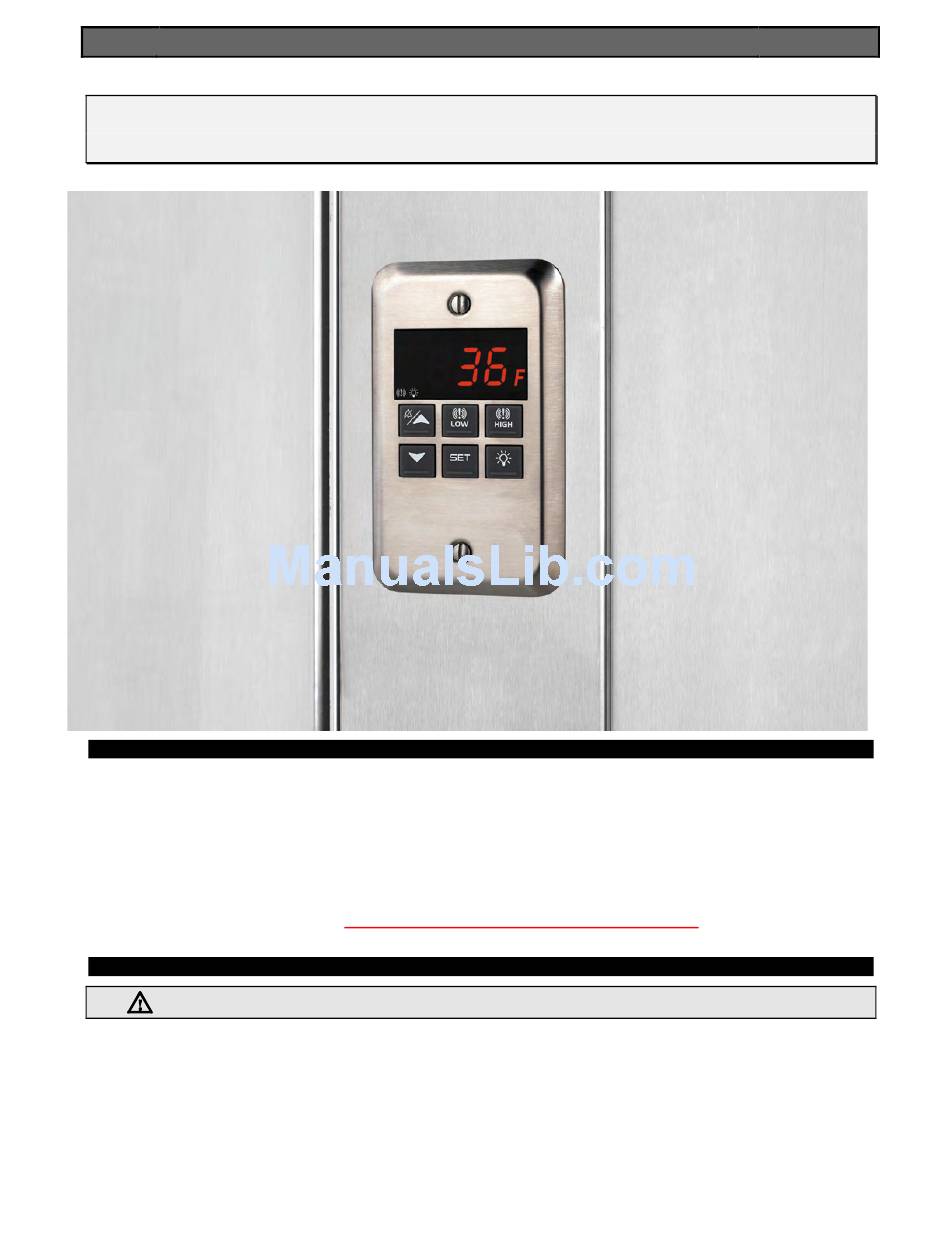

Model XWA11V, 100x64 mm format, is a microprocessor-based controller, suitable for temperature
monitoring and alarming in a walk-in cooler or freezer. It is provided with two (2) Dry Contacts to control lights
and an external alarms. It is provided with one (1) NTC probe input for temperature measurement. The unit
has 2 Digital Inputs, one for a Door Switch and the 2
optional accessories. One 5Pin Input allows the user to program the parameter list with a "Hot Key" (see
section 9)
Note: The default settings are listed in the back of this manual. They are set for Coolers (Medium
Temp). For Freezers (Low Temp) you MUST Change the ALL and ALU settings. See Section 4.0

2. GENERAL WARNINGS

2.1
PLEASE READ BEFORE USING THIS MANUAL
• This manual is part of the product and should be kept close to the instrument for easy and quick
reference.
• The instrument shall not be used for purposes different from those described hereunder. It cannot be used
as a safety device.
• Check the application limits before proceeding.
Weiss Instruments, Inc. 905 Waverly Ave. Holtsville, NY 11742 631-207-1200 www.weissinstruments.com
Operating Instructions XWA11V
XWA11V
Walk-In Temp / Door /Alarm / Light Module
nd
as an optional Panic Switch. See the catalog for
1598003200
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XWA11V and is the answer not in the manual?

Questions and answers

Roger Boyd
April 26, 2025

How do you disable the door alarm on this controller?

1 comments:
Mr. Anderson
May 14, 2025

To disable the door alarm (“dA”) on the Dixell XWA11V controller, close the door. The alarm stops automatically as soon as the door is closed.

This answer is automatically generated

Summary of Contents for dixell XWA11V

  • Page 1 Walk-In Temp / Door /Alarm / Light Module 1. GENERAL DESCRIPTION Model XWA11V, 100x64 mm format, is a microprocessor-based controller, suitable for temperature monitoring and alarming in a walk-in cooler or freezer. It is provided with two (2) Dry Contacts to control lights and an external alarms.
  • Page 2 Switch ON and OFF the light of the cold room KEY COMBINATIONS: PRESS SIMULTANEOUSLY To lock and unlock the Keyboard. To enter the Programming Mode. Weiss Instruments, Inc. 905 Waverly Ave. Holtsville, NY 11742 631-207-1200 www.weissinstruments.com Operating Instructions XWA11V HIGH FRONT PANEL OPERATION 1598003200...
  • Page 3 To exit: Press SET + up or wait 15s without pressing a key. NOTE: the set value is stored even when the procedure is exited by waiting the time-out to expire. Weiss Instruments, Inc. 905 Waverly Ave. Holtsville, NY 11742 631-207-1200 www.weissinstruments.com Operating Instructions XWA11V Function ALARM signaling...
  • Page 4 - if the light was switched on by digital input, the light button can modify its status. 7. INSTALLATION AND MOUNTING 7.1 MOUNTING OF XWA11V – PR10000 The XWA11V must be mounted on vertical panel, in a J-Box or wall mount using the VS-BOX2 The Ambient Temp range for correct operation is 32 –...
  • Page 5 Door switch alarm “dA” stops as soon as the door is closed. External alarms “EAL”, “BAL” stops as soon as the external digital input is disabled. Weiss Instruments, Inc. 905 Waverly Ave. Holtsville, NY 11742 631-207-1200 www.weissinstruments.com Operating Instructions XWA11V Cause Probe failure...
  • Page 6 Resolution: 1 °F Accuracy : ±1 °F 12. CONNECTIONS Power supply: 120Vac +/- 10% 15A MAX current Date Code Weiss Instruments, Inc. 905 Waverly Ave. Holtsville, NY 11742 631-207-1200 www.weissinstruments.com Operating Instructions XWA11V ± Full P/N 1598003200 Ambient Temp / %RH...
  • Page 7 Time interval/delay for digital input alarm Alarm relay disabling Kind of probe Real T° Probe 1 FW release Parameter map Weiss Instruments, Inc. 905 Waverly Ave. Holtsville, NY 11742 631-207-1200 www.weissinstruments.com Operating Instructions XWA11V COOLER VALUES FREEZER DEFAULT VALUES 1598003200 RANGE LEVEL [-12,0°C <>...
  • Page 8 Probe 1 T Software release for internal use. Parameter table code: read only. Weiss Instruments, Inc. 905 Waverly Ave. Holtsville, NY 11742 631-207-1200 www.weissinstruments.com Operating Instructions XWA11V 12.0°C/ -21 21°F) allows to adjust possible offset of the ÷ ÷...
