6 1/2" 2-way outdoor rock speakers
Hide thumbs Also See for NS-R2111 - Simulated Rock Outdoor Speakers Speaker:

Advertisement

Quick Links

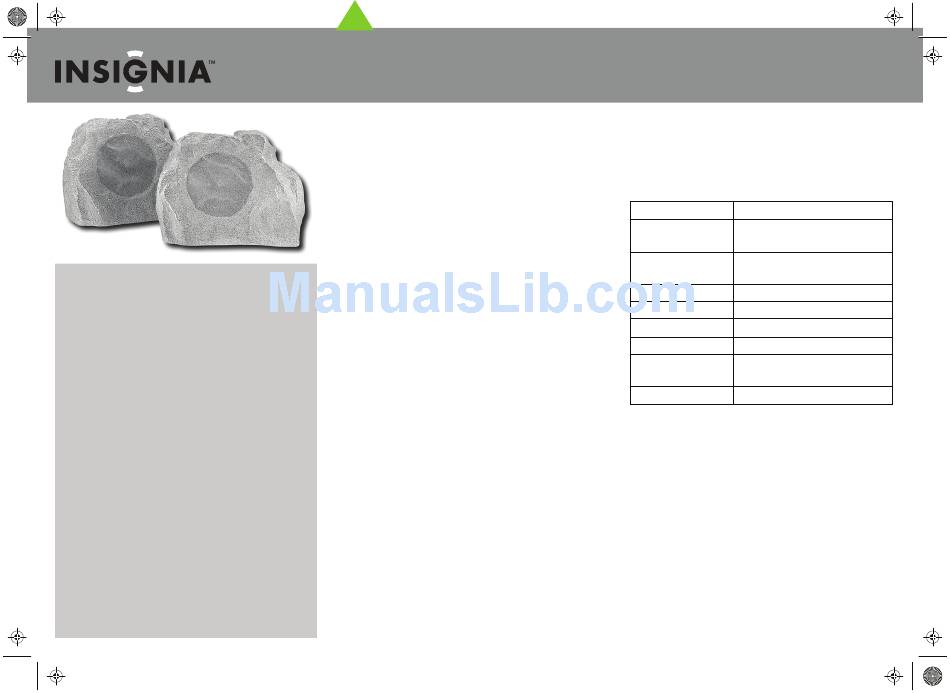

NS-R2111_10-1242_QSG_V2_EN.eps
NS-R2111_10-1242_QSG_V2_EN.eps
1
1
1/31/2011
1/31/2011
Congratulations on your purchase of a high-quality Insignia product.
Your NS-R2111 represents the state of the art in outdoor speaker
design and is designed for reliable and trouble-free performance.

Package contents

• Rock speakers (2)
• 50 feet (15.2 m) of outdoor speaker wire
• Twisted wire connectors (4)
• Quick Setup Guide
Tools you will need:
• A small spade or shovel
• Measuring tape
• Wire cutters
• Wire strippers
V2
3:33:15 PM
3:33:15 PM
FINAL
FOR PRINT

Safety information

Although your new rock speakers are designed to withstand outdoor
conditions, you can do these things to prolong the life of your speakers:
• Keep dirt and leaves from covering the speaker grille. If dirt accumulates
on the grille, rinse it off with water.
• Avoid facing the speakers directly at sprinklers.
• Chemicals commonly used in the back yard may damage the rubber parts
of the speakers. Avoid spraying yard care chemicals onto the speakers.
Setting up your speakers
Planning speaker locations
Your rock speakers feature a wide angle of coverage. A few speakers will
cover a large area with sound.
When designing your outdoor system:
• It's better to have more speakers playing at lower volumes than fewer
speakers playing at high volumes.
• Place the speakers as close to the listening area as possible.
• Make sure that you can easily run wire to each of the speaker locations.
Connecting the speakers
1 Measure out lengths of speaker wire required to connect each speaker.
Estimate the length of additional speaker wire you will need, if
necessary.
Note: Purchase burial-grade wire if you need additional speaker wire.
2 Dig a five-inch deep trench from the amplifier to each speaker location
for the speaker wire.
3 Connect the outdoor speaker wire to the wire from the bottom of the
speaker. Make sure the polarity of the speaker wire connections is correct
by connecting the red wires together and the black wires together.
Note: The speaker wire can be run beneath the speaker into the ground
or through the notch on the bottom of the speaker to the side.
4 Run the wire through the trench to the amplifier.
5 Connect the other end of the outdoor speaker wires to your amplifier.
Connect the red wires to the red (+) speaker terminals (R and L) on the
amplifier and the black wires to the black (-) speaker terminals (R and L)
on the amplifier.
6 Turn your amplifier on and test the system with your favorite music. If
the speakers are operating properly, fill in the wire trench.
NS-R2111 6 ½" 2-Way Outdoor Rock Speakers
Caution: Make sure that all connections are secure. A poor connection
can lead to corrosion and loss of performance. For best results, crimp or
solder the wires together, then cover with the twisted wire connectors
provided.

Specifications

Speaker type
Tweeter
Woofer
Impedance
Sensitivity
Frequency response
Power recommendation
Dimensions
Weight
Quick Setup Guide
Weather-resistant rock speaker
1/2" (13 mm) coaxial tweeter with
poly-ether imide (pei) diaphragm
6.5-inch (165 mm) driver with
polypropylene cone and rubber surround
8 ohm
86 +/-2 dB
120 Hz - 20 kHz
5 - 50 Watt
(H×W×D) 9.6 × 13.0 × 7.7 inches
(245 × 330 × 195 mm)
7.2 lbs (3.3 kg)
