Figure 1-5 rx2660 debugging port
rx3600 and rx6600 servers

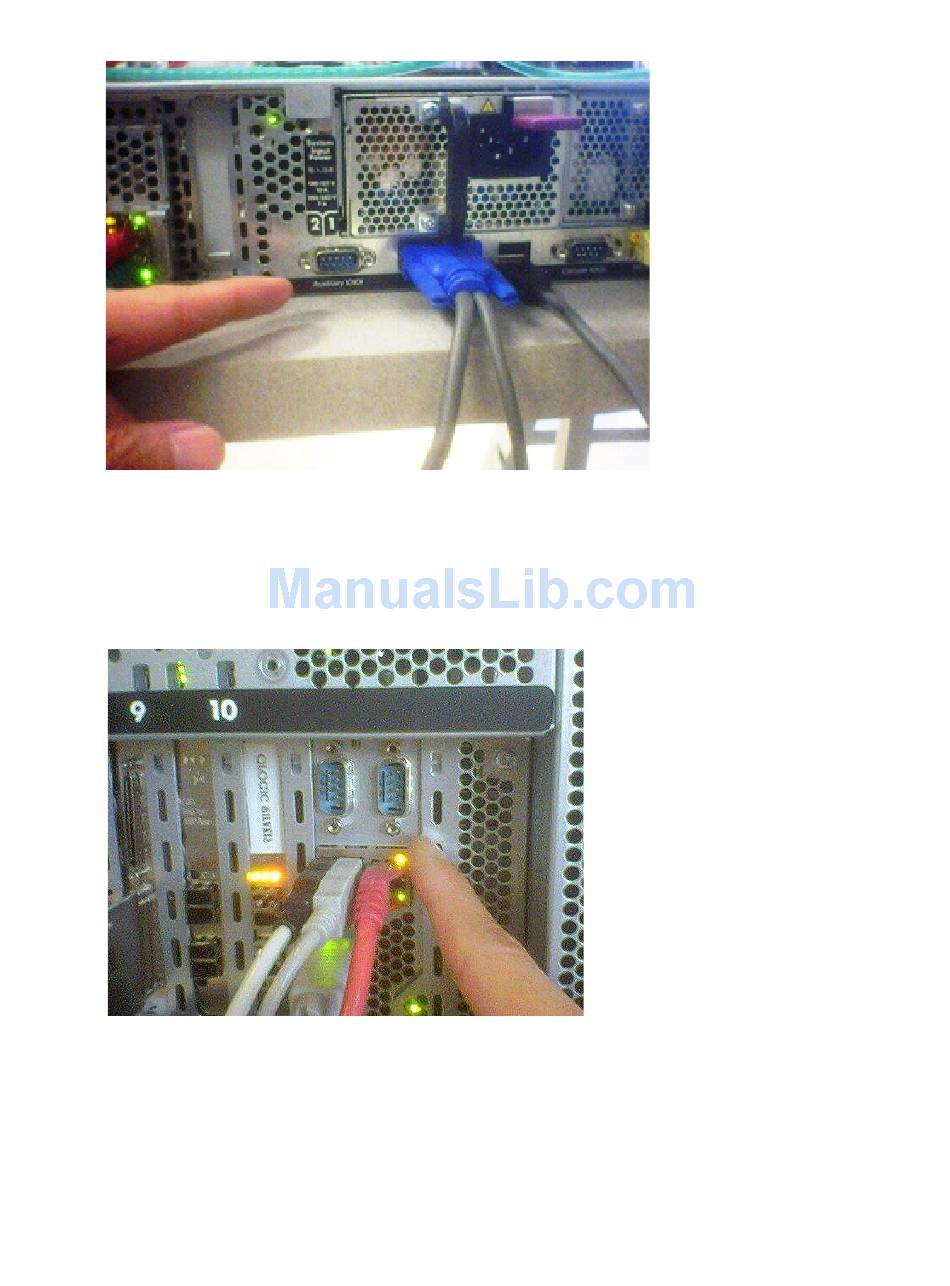

For rx3600 and rx6600 servers, connect the serial port on the laptop or workstation to the serial
port on the far right side of the back of the server (when facing the back). The following image
shows the connection.
Figure 1-6 rx3600 and rx6600 debugging port
rx4640 server
The rx4640 server has 3 DB9 connectors on the rear I/O panel. The connector labeled "remote"
(the one closest to the VGA connector) is used as the kernel debug port, but it is not enabled by
default. The following image shows the location of this connector.
22
Debugging the kernel locally
