Profile selection & proper gearing

Advertisement

PLEASE NOTE: This page contains optional Advanced Programming items!
• These programming items are STRICTLY OPTIONAL--No further adjustments are required •
(but don't worry, you can always reset factory defaults by performing the One-Touch programming again, so go ahead & experiment--that's why the programming is in there, right?)
Throttle Profiles 1, 2, 3, 4, & 6 can be independently customized to
fine tune the speed control to feel just the way you like it.
The Super Sport Plus lets you tune the following items:
• Minimum Brake/Drag Brake Percentage--
• Braking Type--
1 of 2 types of braking styles (standard Constant Force
braking or DRAG BRAKING where braking is applied during neutral).
• Dead Band--
1 of 5 Dead Band settings from 2 to 6%.
• Minimum Drive Percentage--

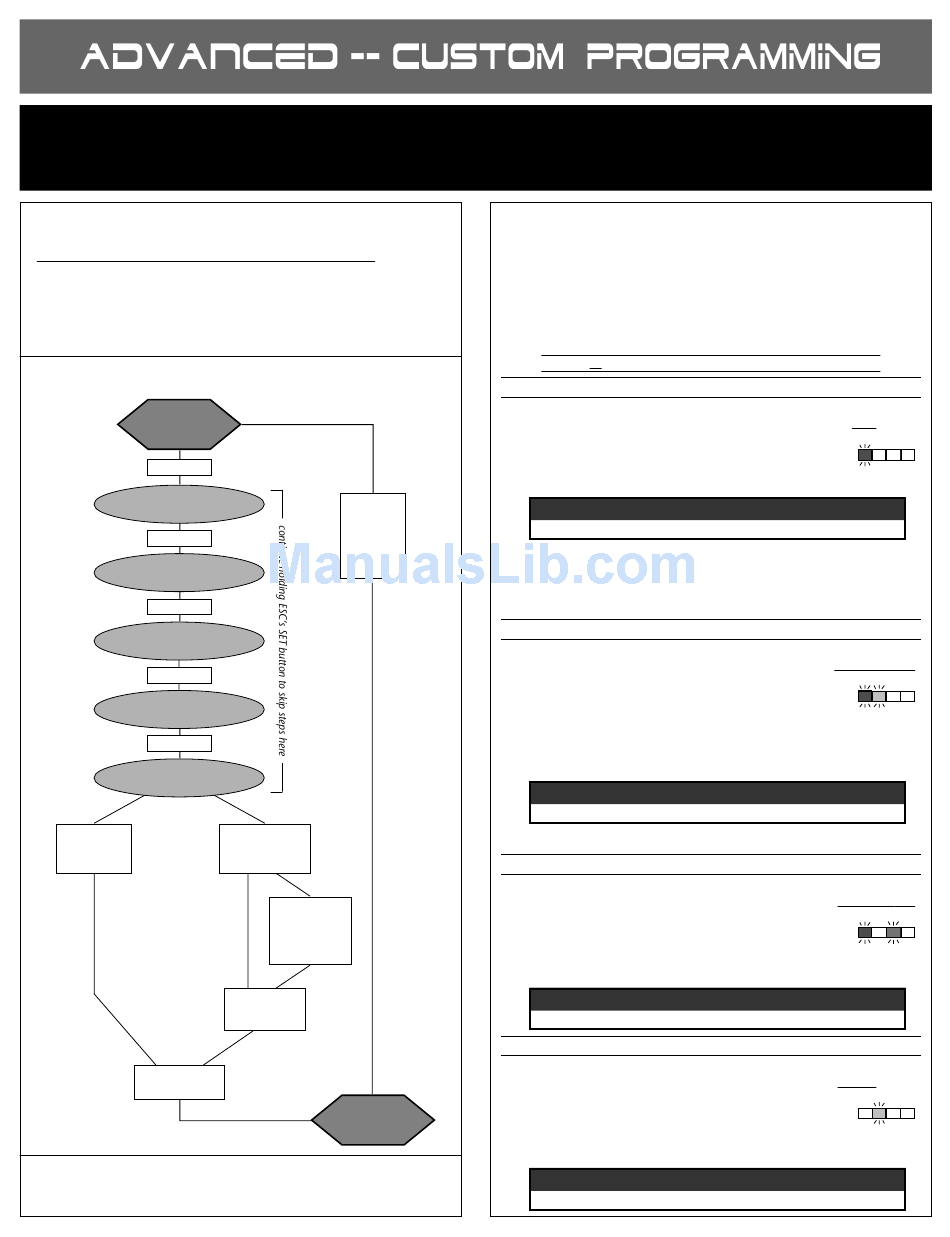

super sport plus soFtware Flow chart
super sport plus soFtware Flow chart
@NEUTRAL
RED or RED & GREEN
press & hold
MIN. BRAKE
BLUE
press & hold
DRAG BRAKE
BLUE & AMBER
press & hold
DEAD BAND
BLUE & GREEN
press & hold
MIN. DRIVE
AMBER
press & hold
ACTIVE PROFILE
all LEDs (flashing)
if Brush-Mode
is active
––––––
all LEDs
flash 6 times
LEDs roll off
––––
exit programming
restoring factory default
restoring factory defaults s
Every time you perform the One-Touch Set-Up, the factory default settings are
restored for each of the throttle profiles.
1 of 10 settings.
1 of 5 settings from 2 to 12%.
quick press
results in red
LED flashing
––––––
indicates
improper
button press
sequence
if Brushless-Mode
is active
––––––
# of flashes equals
active profile ( 1-5 )
if pressed
––––––
within 3 sec. of
all LEDs flashing
––––––
active profile
changed
if not pressed
––––––
within 3 sec. of
all LEDs flashing
@NEUTRAL
RED or RED & GREEN
: :
to customizing profiles
to customizing profiles
With ESC on & connected to a charged battery (transmitter ON or OFF):
1. IF TRANSMITTER IS OFF, DISCONNECT ESC FROM RECEIVER
Remove input signal harness from receiver to avoid radio interference.
2. MAKE SURE THROTTLE PROFILE 1-4 OR 6 IS ACTIVE
If you are not sure what profile is selected, follow the procedures in
'Throttle Profile Selection' to check or select desired profile.
Remember that you can not access the Brush-Mode (Profile #6)
without disconnecting the brushless sensor harness from the ESC.
Note: there is no time constraint during selection process of custom parameters.
: :
to adjust minimum brake
to adjust minimum brake
PRESS & HOLD SPEED CONTROL'S SET BUTTON
a a a a a . . . . .
With ESC at neutral, press & hold SET button until the Blue status
LED turns on solid---Release ESC's SET button once LED is on solid.
SELECT MINIMUM BRAKE PERCENTAGE
b b b b b . . . . .
Blue status LED
Brake setting. Quick press & release to select desired setting.
Setting
(# of flashes)
Minimum Brake
PRESS & HOLD SET BUTTON TO STORE SELECTION
c c c c c . . . . .
When SET button is pressed & held for about 1 second, the new selection
is stored in ESC's memory--The 4 status LEDs will scroll back & forth to
indicate you are exiting programming & the Red LED will turn on solid
(Red & Green if no transmitter signal present)
to activate & adjust drag brake
to activate & adjust drag brake
a a a a a . . . . .
PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until Blue & Amber
status LEDs turn on solid---Release SET button once LEDs are solid.
b b b b b . . . . .
SELECT DRAG BRAKE PERCENTAGE
Blue & Amber status LEDs
Drag Brake setting
Quick press & release to change Drag Brake/Minimum Brake setting,
then press & hold SET button for about 1 second to activate drag
braking, store selection into ESC's memory, and return to neutral.
Setting
(# of flashes)
Drag Brake
Note: To re-activate the standard style of braking (no drag brakes during
neutral), repeat Minimum Brake adjustment as described above.
to adjust dead band
to adjust dead band
PRESS & HOLD SPEED CONTROL'S SET BUTTON
a a a a a . . . . .
With ESC at neutral, press & hold SET button until Blue & Green
status LEDs turn on solid---Release SET button once LEDs are solid.
b b b b b . . . . .
SELECT DEAD BAND PERCENTAGE
Blue & Green status LEDs flash to indicate active Dead Band setting.
Quick press & release to change setting, then press & hold SET
button for about 1 second to store selection and return to neutral.
Setting
Dead Band
to adjust minimum drive
to adjust minimum drive
PRESS & HOLD SPEED CONTROL'S SET BUTTON
a a a a a . . . . .
With ESC at neutral, press & hold SET button until Amber status
LED turns on solid---Release SET button once LED is on solid.
SELECT MINIMUM DRIVE PERCENTAGE
b b b b b . . . . .
Amber status LED flashes to indicate active Minimum Drive setting.
Quick press & release to change setting, then press & hold SET
button for about 1 second to store selection and return to neutral.
Setting
Minimum Drive
P6
1 1
: :
(or re-activate std-style brakes)
(1st LED on left)
flashes to indicate active Minimum
:
1 2 3 4 5 6 7 8 9 10
(%)
:
20 25 30 35 40 45 50 55 60 65
--ESC is at neutral & ready to go.
flash to indicate active
(1st & 2nd LEDs on left)
(Drag brake setting will be same as Minimum Brake setting)
:
1 2 3 4 5 6 7 8 9 10
:
off 25 30 35 40 45 50 55 60 65
(%)
:
1
2
3
(# of flashes)
:
2
3
4
(%)
:
1
2
3
(# of flashes)
(%)
:
2
3
5
: :
4 4
- -
6 6
or
or
blue
: :
blue & amber
.
: :
blue & green
4
5
5
6
: :
amber
4
5
8
12
