Optoma EX525ST Command List
Rs232 commands
Hide thumbs
Also See for EX525ST:
- Brochure & specs (5 pages) ,
- Quick start card (2 pages) ,
- Specifications (2 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
RS232 Commands
RS232 Pin Assignments
3
2
I/O (From
Pin no.
Name
Projector Side)
1
TXD
2
RXD
3
GND
Appendices
1
9
5
4
Pin no.
1
2
OUT
3
IN
4
__
5
6
7
8
9
8
7
6
3
2
1
Spec.
N/A
RXD
TXD
N/A
GND
N/A
N/A
N/A
N/A
51
English
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Optoma EX525ST
Summary of Contents for Optoma EX525ST
-
Page 1: Rs232 Commands

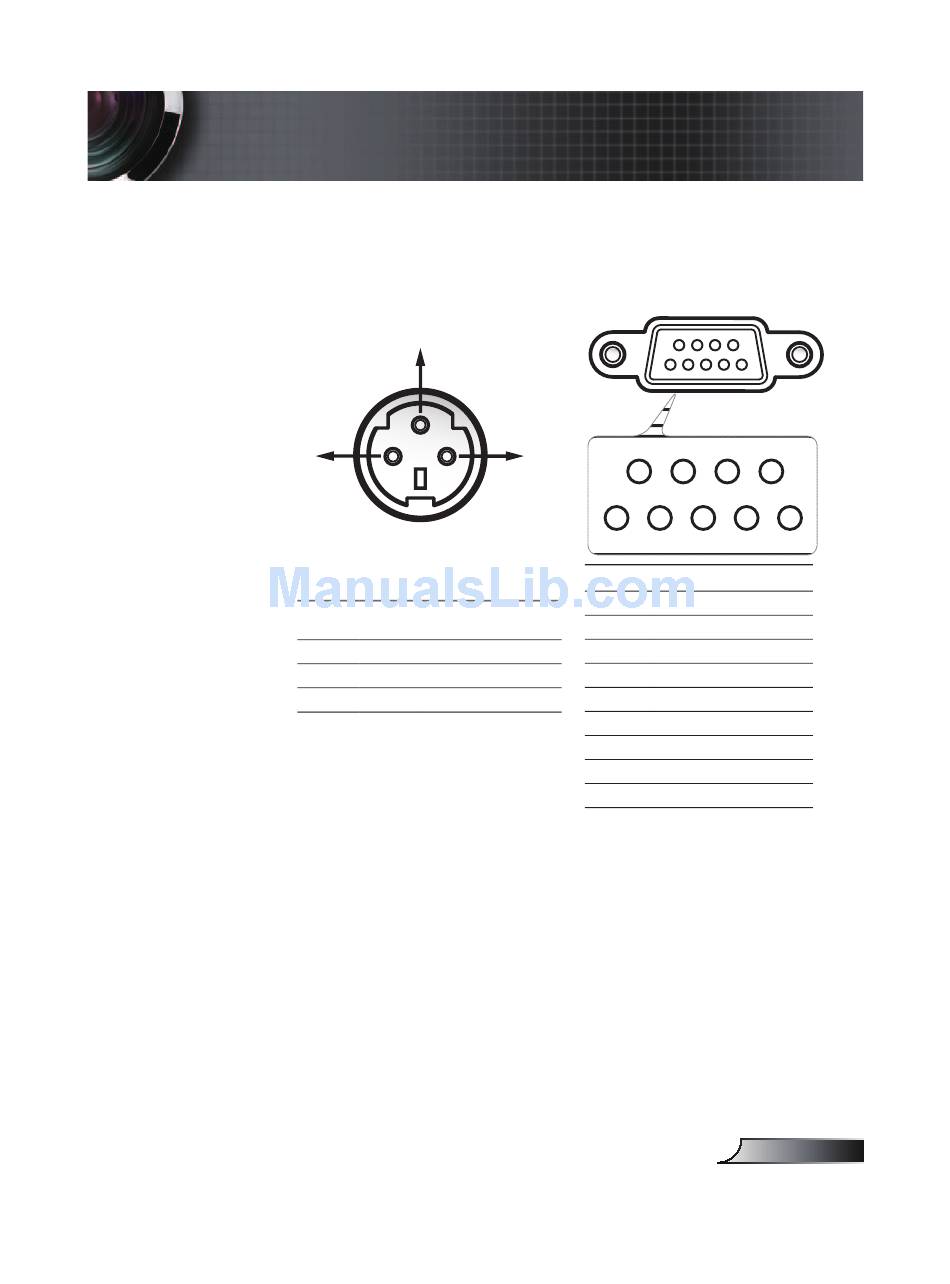

Appendices RS232 Commands RS232 Pin Assignments Pin no. Spec. I/O (From Pin no. Name Projector Side) English... -
Page 2: Rs232 Protocol Function List
Appendices RS232 Protocol Function List RS232 Commands Baud Rate : 9600 SEND to projector Data Bits: 8 --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Function Description 232 ASCII Code HEX Code Parity: None --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX00 1 7E 30 30 30 30 20 31 0D Power ON Stop Bits: 1 ~XX00 2 7E 30 30 30 30 20 32 0D... - Page 3 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde a : 1/0=On/Off bbbb: LampHour cc: source 00/01/02/03/04/05= None/DVI-D/DVI-A/ VGA1/S-Video/Video dddd: FW version e : Display mode ~XX151 1 7E 30 30 31 35 31 20 31 0D Model name n : 0 EX525ST English...
