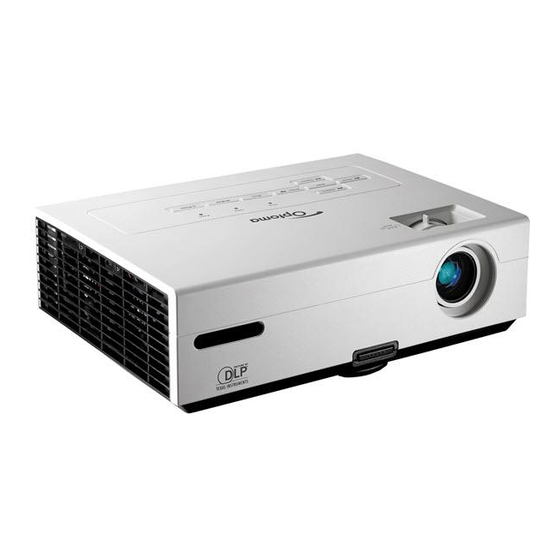

Optoma EX530 User Manual
Optoma ex530: user guide
Hide thumbs
Also See for EX530:
- Specifications (2 pages) ,
- Serivce manual (102 pages) ,
- User manual (72 pages)
Table of Contents
Advertisement
Table of Contents .............................................................................................................. 1
Usage Notice ...................................................................................................................... 2
Safety Information ........................................................................................................................2
Precautions .....................................................................................................................................4
Eye Safety Warnings .....................................................................................................................6
Introduction ....................................................................................................................... 7
Package Overview ........................................................................................................................8
Product Overview .........................................................................................................................9
Main Unit ........................................................................................................................................................................................9
Control Panel ................................................................................................................................................................................10
Rear View ......................................................................................................................................................................................11
Remote Control ............................................................................................................................................................................12
Installation ........................................................................................................................ 13
Connecting the Projector ............................................................................................................13
Connect to Computer / Notebook ............................................................................................................................................13
Connect to Video Sources ...........................................................................................................................................................14
Powering On / Off the Projector ..............................................................................................15
Powering On the Projector .........................................................................................................................................................15
Powering Off the Projector .........................................................................................................................................................16
Warning Indicator........................................................................................................................................................................16
Adjusting the Projected Image ..................................................................................................17
Adjusting the Projector's Height ...............................................................................................................................................17
Adjusting the Zoom / Focus (Zoom Series) ............................................................................................................................18
Adjusting Projection Image Size ................................................................................................................................................18
Adjusting the Focus (Fixed Zoom Series) ...............................................................................................................................19
Adjusting Projection Image Size ................................................................................................................................................19
User Controls ................................................................................................................... 20
On-screen Display Menus ..........................................................................................................23
How to operate .............................................................................................................................................................................23
Menu Tree .....................................................................................................................................................................................24
Image ............................................................................................................................................25
Display ..........................................................................................................................................30
Setup .............................................................................................................................................32
Options .........................................................................................................................................40
Appendices ...................................................................................................................... 45
Troubleshooting ..........................................................................................................................45
Image Problems............................................................................................................................................................................45
Intermission Problems ................................................................................................................................................................47
Projector Status Indication..........................................................................................................................................................48
Remote Control Problems ..........................................................................................................................................................49
Audio Problems ...........................................................................................................................................................................49
Replacing the Lamp .....................................................................................................................................................................50
Cleaning the Projector ................................................................................................................52
Compatibility Modes ..................................................................................................................53
RS232 Commands .......................................................................................................................55
RS232 Protocol Function List .....................................................................................................56
Ceiling Installation ......................................................................................................................59
Optoma Global Offices ...............................................................................................................60
Regulation & Safety notices .......................................................................................................62
Operation conditions ..................................................................................................................63
Table of Contents
English
Advertisement
Table of Contents
Related Manuals for Optoma EX530
Summary of Contents for Optoma EX530
-
Page 1: Table Of Contents
Remote Control Problems ................................49 Audio Problems ...................................49 Replacing the Lamp ..................................50 Cleaning the Projector ........................52 Compatibility Modes ........................53 RS232 Commands ........................55 RS232 Protocol Function List .....................56 Ceiling Installation ........................59 Optoma Global Offices .......................60 Regulation & Safety notices .......................62 Operation conditions ........................63 English... -
Page 2: Usage Notice
Usage Notice Safety Information The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous volt- age” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of import operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 3 Do not attempt to service this projector yourself. Opening or re- moving covers may expose you to dangerous voltages or other hazards. Please call Optoma to be referred to an authorized ser- vice center near you. 8. Do not let objects or liquids enter the projector as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
-
Page 4: Precautions
Precautions Please follow all warnings, precautions and main- tenance as recommended in this user’s guide. ▀■ Warning - Do not look into the projector’s lens when the lamp is on. The bright light may damage your eyes. ▀■ Warning - To reduce the risk of fire or electric shock, do not ex- pose this projector to rain or moisture. - Page 5 Usage Notice Turn off the product before cleaning. Use a soft cloth moistened with a mild detergent to clean the display housing. Disconnect the power plug from the AC outlet if the product is not being used for a long period of time. Don’t Do not block the ventilation slots and openings on the unit.
-
Page 6: Eye Safety Warnings
Usage Notice Eye Safety Warnings ▀■ Avoid staring directly into the projector’s beam of light at all times. ▀■ Minimize standing facing into the beam. Keep your back to the beam as much as possible. ▀■ Using a stick or laser pointer is recommended to avoid the need for the presenter to enter the beam. -
Page 7: Introduction
Introduction Product Features This product is a single chip 0.55” DLP projector. Outstanding fea- ® tures include: Texas Instruments Single chip DLP Technology ® Computer Compatibility: Apple Macintosh, iMac, and VESA Standards: UXGA, SXGA+, SXGA, WXGA, WUXGA, XGA, SVGA, VGA Video Compatibility: ■... -
Page 8: Package Overview
Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immedi- ately if anything is missing. Page+ Page- Projector with lens cap IR Remote Control (with 2 x AAA Batteries) Zoom Series/Fix Zoom Series Power Cord 1.8m VGA Cable 1.8m... -
Page 9: Product Overview
Introduction Product Overview Main Unit 1. Control Panel 7. Front IR Receiver 2. Zoom 8. Rear IR Receiver (Zoom series only) 3. Focus 9. Kensington™ Lock 4. Lens 10. Tilt-Adjustment Foot 5. Elevator foot 11. Connection Ports 6. Elevator button 12. -
Page 10: Control Panel
Introduction Control Panel Temp Lamp Power . Keystone + . Source Re-Sync . Enter Menu AV-Mute Power . Keystone - 1. Keystone + 7. AV-Mute 2. Enter 8. Menu 3. Temp LED 9. Re-Sync 4. Lamp LED 10. Keystone - 5. -
Page 11: Rear View
Introduction Rear View USB Connector (Connect to PC for Remote Mouse function) 2. S-Video Input Connector 3. Video Input 4. Audio Input Connector (left and right) 5. Audio Out 6. VGA In/ SCART/ YPbPr Connector 7. RS-232 Connector 8. Rear IR Receiver 9. -
Page 12: Remote Control
Introduction Remote Control 1. Button LED 2. Power On/Off 3. Laser Button 4. Page Up 5. Mouse Right Click 6. Four Directional Select Keys 7. Re-Sync 8. Page Down 9. Volume +/- 10. Zoom Page+ 11. AV mute 12. Video Source Page- 13. -
Page 13: Installation
Installation Connecting the Projector Connect to Computer / Notebook Due to the difference in applica- tions for each country, some regions may have different accessories. 1. Power Cord 2. USB Cable 3. Audio-in (RCA Type cable) 4. VGA Cable 5. RS-232 Cable English... -
Page 14: Connect To Video Sources
Installation Connect to Video Sources DVD Player, Set-top Box, HDTV receiver Due to the difference in applications for each country, some regions may have differ- ent accessories. Audio Out Audio In Video Output Audio - Out 1. Power Cord 2. S-Video Cable (optional) 3. -
Page 15: Powering On / Off The Projector
Installation Powering On / Off the Projector Powering On the Projector 1. Remove the lens cap. u 2. Ensure that the power cord and signal cable are securely connect- ed. The Power LED flashes slowly green v . 3. Turn on the lamp by pressing Power either on the top of the projec- tor or on the remote. -
Page 16: Powering Off The Projector
Installation Powering Off the Projector 1. Press Power to turn off the projector lamp, a message displays on the projector’s screen. 2. Press Power again to confirm, otherwise the message disappears after 15 seconds. 3. The cooling fans continue to operate for about 10 seconds for cooling cycle. -
Page 17: Adjusting The Projected Image
Installation Adjusting the Projected Image Adjusting the Projector’s Height The projector is equipped with elevator foot for adjusting the image height. To raise the image: 1. Press the elevator button u . 2. Raise the image to the desired height angle v , then release the button to lock the elevator foot into position. -
Page 18: Adjusting The Zoom / Focus (Zoom Series)
Installation Adjusting the Zoom / Focus (Zoom Series) You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 3.28 to 38.7 feet (1 to 11.8 meters). Adjusting Projection Image Size 300.8"... -
Page 19: Adjusting The Focus (Fixed Zoom Series)
Installation Adjusting the Focus (Fixed Zoom Series) The Fixed Zoom Series’ lens is fixed and does not provide a zoom function. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 4.9 to 40 feet (1.5 to 12.2 meters). -
Page 20: User Controls
User Controls Control Panel & Remote Control Control Panel Temp Lamp Power . Keystone + . Source Re-Sync . Enter Menu AV-Mute Power . Keystone - Using the Control Panel Keystone + Adjust the image Keystone positively. Enter Confirm your item selection. Temp LED Indicate the projector’s temperature status. - Page 21 User Controls Remote Control Using the Remote Control Refer to the “Power On/Off the Power Projector” section on page 15. Aim the remote at the viewing screen, Laser press and hold this button to activate the laser pointer. The PC/Mouse control can be used to control mouse movement.
- Page 22 User Controls Using the Remote Control Press Menu to launch the on-screen Menu display (OSD) menu. To exit OSD, Press Menu again. Zoom Press +/- to zoom in of an image. Press Contrast to adjust the contrast Contrast of an image. Press VGA to choose source from VGA- IN connector.
-
Page 23: On-Screen Display Menus
User Controls On-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. How to operate 1. To open the OSD menu, press Menu on the Remote Control or Projector Keypad. -
Page 24: Menu Tree
User Controls Menu Tree English... -
Page 25: Image
User Controls Image Display Mode There are many factory presets optimized for various types of images. Presentation: Good color and brightness from PC input. Bright: Maximum brightness from PC input. Movie: For home theater. sRGB: Standardised accurate color. User1: User’s own settings. User2: The initial default settings of this mode is from Movie mode. -
Page 26: Color Setting
User Controls Image Saturation Adjusts a video image from black and white to fully saturation color. Press ◄ to decrease the amount of saturation in the image. Press ► to increase the amount of saturation in the image. Tint Adjusts the color balance of red and green. Press ◄... - Page 27 User Controls Image | Color Setting Gain Set RGB gain for the following colors: Red—increase or decrease the gain value for red. Green—increase or decrease the gain value for green. Blue—increase or decrease the gain value for blue. Bias Set RGB bias for the following colors: Red—increase or decrease the bias value for red.
-
Page 28: White Peaking
User Controls Image | Advanced White Peaking This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from 0 to 10. If you prefer a stron- ger enhanced image, adjust toward the maximum setting. - Page 29 User Controls Image | Advanced | Input Source Input Source Enable input sources. Press ◄ or ► into the next menu as below and then use ▲ or ▼ to select. Press Enter to finalize the selection. The projector will If all sources not search inputs that are de-selected.
-
Page 30: Display
User Controls Display Format Use this function to choose your desired aspect ratio. 4:3: This format is for 4x3 input sources not enhanced for Wide screen TV. 16:9 I: This format is for 16x9 input sources, like HDTV and DVD en- hanced for Wide screen TV. -
Page 31: Image Shift
User Controls Display Overscan Overscan function removes the noise in a video image. Overscan the im- age to remove video encoding noise on the edge of video source. Zoom Press ◄ to reduce the size of the image. Press ► to magnify an image on the projected screen. H Image Shift Shifts the projected image position horizontally. -
Page 32: Setup
User Controls Setup Language Enter the Language menu. Select the multilingual OSD menu. See page 34 for more information. Projection Select projection method: Front Desktop The factory default setting. Rear Desktop When you select this function, the projector reverses the image so you can project behind a translucent screen. - Page 33 User Controls Setup Signal Enter the Signal menu. Set projector signal properties. See page 35 for more information. Security Enter the Security menu. Access the projector’s security features. See page 36 for more information. Projector ID Select a two digit projector ID from 0 through 99. Mute Toggle Mute on/off.
- Page 34 User Controls Setup | Language Language Choose the multilingual OSD menu. Press ◄ or ► into the sub menu and then use the ▲ or ▼ key to select your preferred language. Press Enter to finalize the selection. English...
- Page 35 User Controls Setup | Signal Frequency Change the display data frequency to match the frequency of your com- puter’s graphic card. If you experience a vertical flickering bar, use this function to make an adjustment. Phase Phase synchronizes the signal timing of the display with the graphic card. If you experience an unstable or flickering image, use this function to cor- rect it.
-
Page 36: Security Timer
User Controls Setup | Security Security Timer Enter the Security Timer sub menu. No password is required to access Setup | Security unless the Security Timer or Security Setting are en- abled. Enter the Months, Days, and hours that the projector can be used without entering the password. - Page 37 User Controls Setup | Security If the incorrect password is entered three Change Password times, the device auto Use this submenu to change the security password for the projector. 1. Select Change Password from the Security submenu. The Confirm shutdowns after Change Password dialog box displays.
- Page 38 User Controls Setup | Security Security Setting Enable or disable the security password. Enabled—the current password is required to power on the projector and access the Security menu. Disabled—no password is required for any function. When security is enabled, the following screen displays at startup and before access to the Security menu is allowed: English...
-
Page 39: Logo Capture
User Controls Setup | Advanced Logo Select the screen to display during startup. Optoma—the supplied default startup screen. User—customized screen capture using the Logo Capture function. Logo Capture Capture a displayed screen to use as the startup screen. 1. Display the desired screen on the projector. -
Page 40: Options
User Controls Options Source Lock Lock the current source as the only available source, even if the cable is unplugged. On—only the current source is recognized as an input source. Off—all sources selected in Image | Advanced | Input Source are rec- ognized as an input source. -
Page 41: Keypad Lock
User Controls Options Keypad Lock Lock the buttons on the projector top panel. On—a warning message displays to confirm keypad lock. Press Enter on the projector for 5 seconds to disable the keypad lock. Off—projector keypad functions as normal. Background Color Select the desired background color for the projected image when no source is detected. -
Page 42: Direct Power On
User Controls Options | Advanced Direct Power On Enable or disable Direct Power On. On—the projector powers on automatically when AC power is supplied. Off— the projector must be powered on as normal. Auto Power Off Set the Auto Power Off interval. The projector powers off the lamp after 15 minutes of no signal by default. -
Page 43: Lamp Hour
User Controls Options | Lamp Setting Lamp Hour Displays the number of hours the lamp has been active. This item is for display only. Lamp Reminder Enable or disable the lamp life span reminder. On—a warning message displays when remaining lamp life is less than 30 hours. - Page 44 User Controls Options | Lamp Setting Lamp Reset After replacing the lamp, reset the lamp counter to accurately reflect the new lamp’s life span. 1. Select Lamp Reset. A confirmation screen displays. 2. Select Yes to reset the lamp counter to zero. English...
-
Page 45: Appendices
Appendices Troubleshooting If you experience a problem with your projector, please refer to the follow- ing information. If a problem persists, please contact your local reseller or service center. Image Problems No image appears on-screen Ensure all the cables and power connections are correctly and securely connected as described in the Installation section. -
Page 46: Image Is Unstable Or Flickering
Appendices If you are using a Notebook: 1. First, follow the steps above to adjust resolution of the com- puter. 2. Press the toggle output settings. Example: [Fn]+[F4] Acer � [Fn]+[F5] IBM/Lenovo � [Fn]+[F7] [Fn]+[F4] Asus � [Fn]+[F8] HP/Compaq � Dell �... -
Page 47: Intermission Problems
Appendices The image is stretched when displaying 16:9 DVD title When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16:9 format on projector side. If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD. If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following: Please setup the display format as 16:9 (wide) aspect ratio type... -
Page 48: Projector Status Indication
Appendices Projector Status Indication Power LED Lamp LED Temp LED Message (Green) (Red) (Red) Over Temp Lamp Fail Thermal Break Status Error Lamp Door Sensor Detect High DMD Error Color Wheel Error Fan 1 error (Lamp Fan Fan 2 error (Power Fan) Fan 3 error (Blower Fan) -
Page 49: Remote Control Problems
Appendices Message Reminders Replacing the lamp: Out of range: (see the following for more information) Remote Control Problems If the remote control does not work Check the operating angle for the remote control is approxi- mately ±15°. Make sure there are no obstructions between the remote control and the projector. -
Page 50: Replacing The Lamp
Appendices Replacing the Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations. - Page 51 Appendices 5. Insert the replacement lamp and push down firmly. Tighten the captive screws to hold the lamp in place. 6. Replace the lamp compartment lid and tighten the captive screws. After replacing the lamp, the lamp hours counter must be reset. See page 44 for more information.
-
Page 52: Cleaning The Projector
Appendices Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so could result in a severe burn. Use only a dampened cloth when cleaning. -
Page 53: Compatibility Modes
Appendices Compatibility Modes Computer Compatibility Signal Resolution Refresh Rate (Hz) NTSC PAL/SECAM VESA 640 x 350 70.1/ 85.1 640 x 400 70.1 / 85.1 720 x 350 720 x 400 70/ 85/ 88 720 x 576 50/ 60 640 x 480 60/ 67/ 72.8/ 75/ 85 SVGA 800 x 600... - Page 54 Appendices Signal Resolution Refresh Rate (Hz) HDTV 1920 x 1080i 50/ 60 1920 x 1080p 50/ 60 1280 x 720p 50/ 60 SDTV 720 x 576i 720 x 576p 720 x 480i 720 x 480p Apple Mac Compatibility Macbook Pro Power Mac Power Mac Resolution...
-
Page 55: Rs232 Commands
Appendices RS232 Commands RS232 VGA-In Connector Pin No Specification English... -
Page 56: Rs232 Protocol Function List
Appendices RS232 Protocol Function List RS232 Commands Send to Projector Baud Rate : 9600 Note : There is a <CR> after all ASCII commands SEND to projector 0D is the HEX code for <CR> in ASCII code Data Bits: 8 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 232 ASCII Code HEX Code... - Page 57 Appendices i l a i t i i f i ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop i l i i l i ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------...
- Page 58 Information OKabbbbcdddde a : 0/1=Off/On i s r esentation/Bright/Movie/sRGB/User1/User2 ~XX151 1 7E 30 30 31 35 31 20 31 0D Model Name n : 0/1=ES520/EX530 ~XX152 1 7E 30 30 31 35 32 20 31 0D RS232 Version No English...
-
Page 59: Ceiling Installation
Appendices Ceiling Installation To prevent damage to your projector please use the recommended mounting package for installation. To ensure compliance, only use a UL Listed ceiling mount and Damage to the screws that meet the following specifications: projector as a Screw Type: M4 result of incor- rect installation... -
Page 60: Optoma Global Offices
Appendices Optoma Global Offices For service or support please contact your local office. 715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax : 408-383-3702 www.optomausa.com Service : services@optoma.com Canada 5630 Kennedy Road, Tel : 905-361-2582 Mississauga, ON, L4Z 2A9, Canada Fax : 905-361-2581 www.optoma.ca... - Page 61 Scandinavia Grev Wedels Plass 2 Tel : +47 32 26 89 90 3015 Drammen Fax : +47 32 83 78 98 Norway Service : info@optoma.no Latin America 715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax : 408-383-3702 www.optoma.com.br...
-
Page 62: Regulation & Safety Notices
Appendices Regulation & Safety notices This appendix lists the general notices of your projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harm- ful interference in a residential installation. -
Page 63: Operation Conditions
Appendices Operation conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including in- terference that may cause undesired operation.
