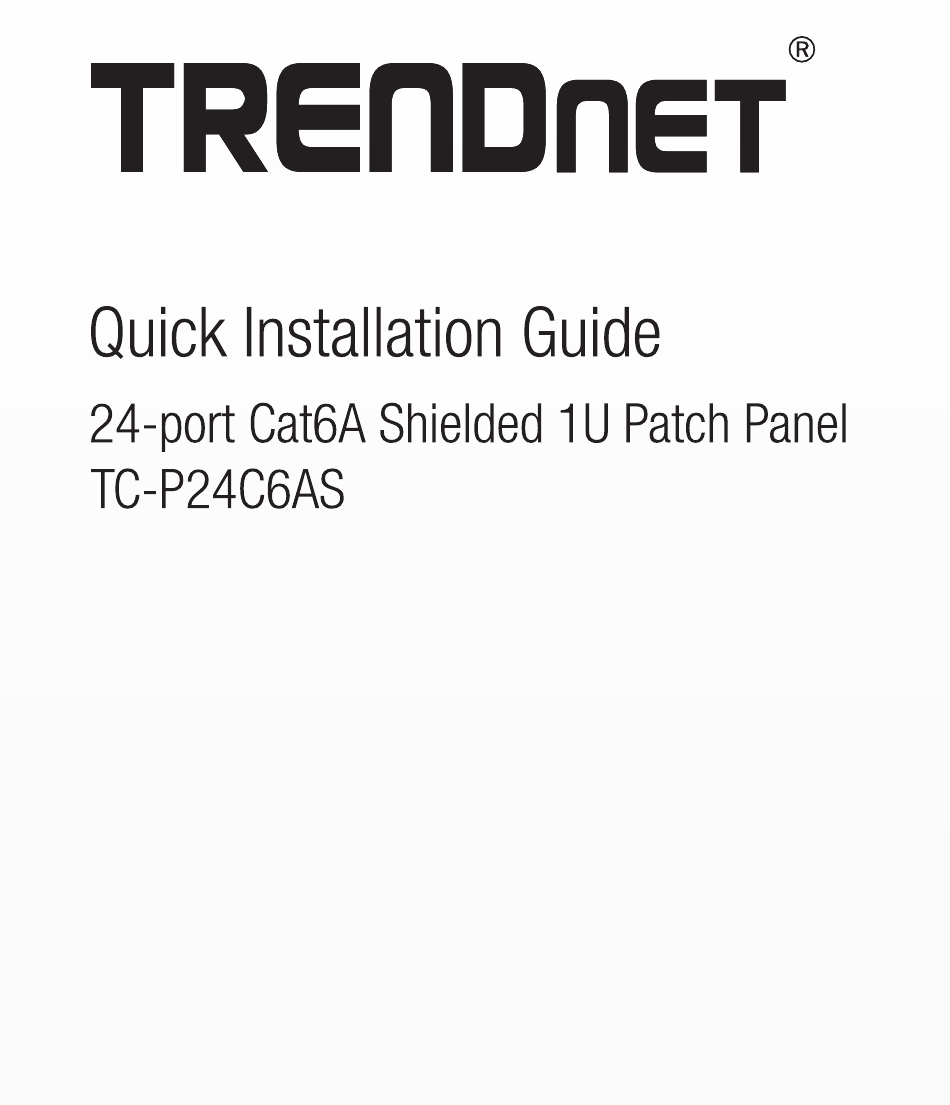

- Page 1 TREnonET Quick Installation Guide 24-port Cat6A Shielded IU Patch Panel TC-P24C6AS...
- Page 2 Lift left and right sides of the metal cover and slide it backwards to remove.
- Page 3 Strip and remove 80mm of the cable jacket. FoldShieldingback overjacket. 80mm...
- Page 4 Layout the wires onto the patch panel based on the *Use punch down tool to press IDC color code. The IDC color codes can be found on each wire and trim excess the table below. (Referencethe color codes labeled A length until all pairs are for T568A.
- Page 5 Place Grounding clip on the cables, screw on the bolt until the cables are fastened to secure grounding between cable and panel. Use supplied cable ties to tighten the cables. When finished replace the metal cover and finish the installation. Screw (Bolt) GroundingClip Cable Fixture Hole...
- Page 6 Connect ground wire to your grounding point. Grounding Point...
- Page 7 SEPT. 3 Signature: Name: Sonny Su 2009 Signature: Limited Warranty TRENDnet w arrants its products against defects in material and workmanship,under normal use and service.Specific warranty periods are listed on each of the respectiveproduct pages on the TRENDnet w ebsite.
- Page 8 Technical Support If you haveany questionsregardingthe product installation, pleasecontact ourTechnicalSupport. Toll free US/Canada: 1-866-845-3673 Regionalphone numbersavailableat www.trendnet.com/support Product Warranty Registration Pleasetake a momentto register your product online. Goto TRENDnet's website at: www.trendnet.com/register TRENDnet 20675 Manhattan Place Torrance,CA90501...
