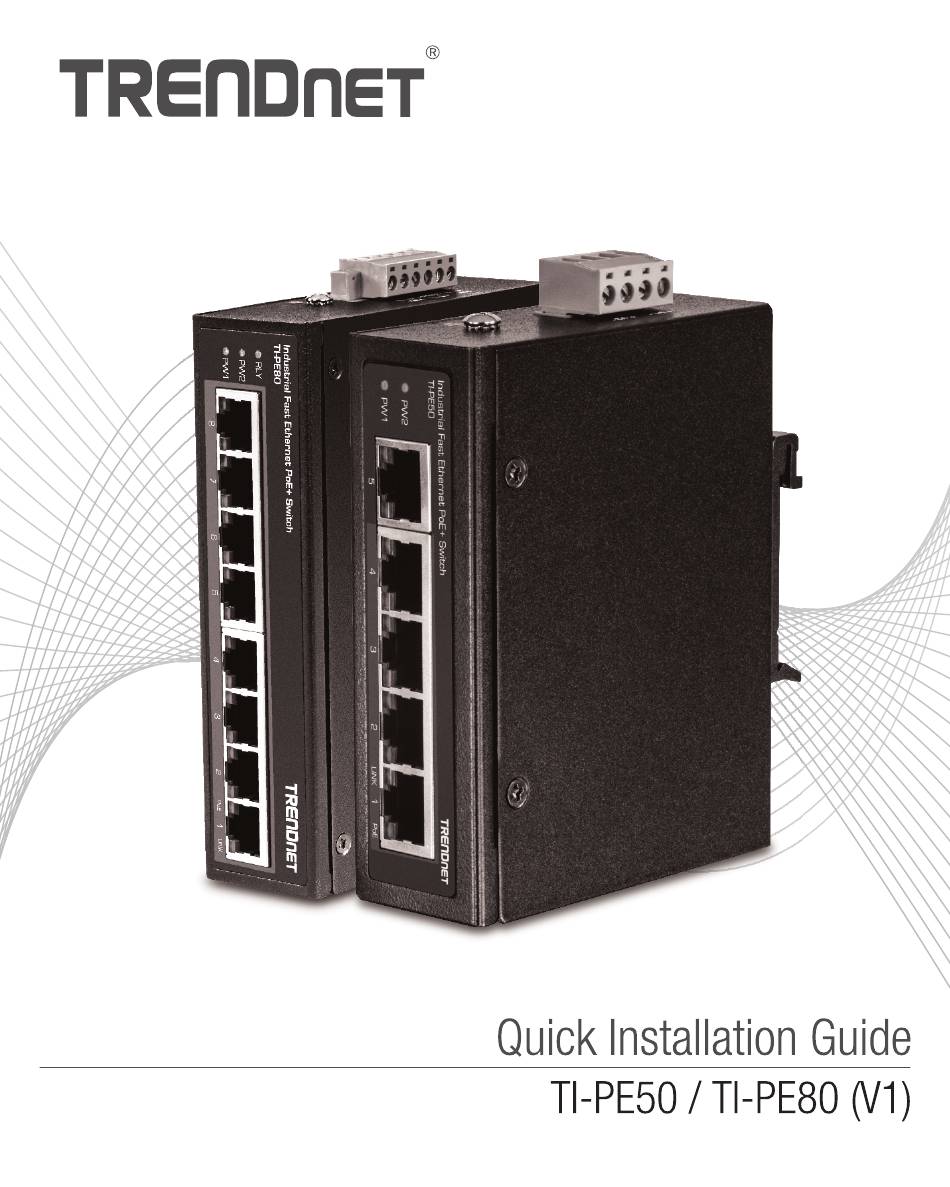

- Page 1 Quick Installation Guide TI-PE50/ TI-PE80(VI)
- Page 2 Table of Contents English 1. Before You Stan 2. Quick Reference 3. Hardware Installation...
- Page 3 1. Before You Start Package Contents • Tl-PE50 / Tl-PE80 • Quick Installation Guide • Removable terminal block • DIN-rail mount • Wall mount kit Minimum Requirements • Existing network • Powersupply (TI-SI 2048 or Tl-S24048) 2. Quick Reference TV-IP344pl TV-IP323Pl TI-SI 2048 Tl-PE80...
- Page 4 3. Hardware Installation The switch can be placed on a desktop, wall, or mounted to a DIN-Rail. DIN-Rail Mounting Instructions 1. Attach the DIN-rail mount bracket to the switch. 2. Position the unit in front of the DIN-Rail and hook the mount bracket over the top of the rail. 3.
- Page 5 Wall Mounting Instructions 1.Attach the wall mount plates to switch. 2. Mount the switch. Safety Note • Turn off the power before connecting any module or wire. The correct power supply voltage (48 - 56V DC) is listed on the product label. Checkthe voltage of your power source to make sure that you are using the correct part.
- Page 6 Applying Power 1. Connectthe power supply (sold separately) to the included terminal block (as shown below) and secure with the screws. Note: Polarities must match. 2. Attach the terminal block to the unit, connect the neutral wire to the ground, and supply power to the power adapter.
- Page 7 Tl-PE50 / Tl-PE80 LED Indicators Description Status Solid Green Power is Connected Solid Green Power is Connected RLY(Tl-PE80) Solid Amber Connected only PWI or PW2 Solid Green Connected Flashing Green DataTransmitting / Receiving Link No Connection Solid Amber POE is Connected Flashing Amber POEis being detected No PoE...
- Page 8 Industrial Fast Ethernet PoE+ DIN-Rail Switch Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + All: 2009 + A1: 2010...
- Page 9 LocalAuthorityor Retailerfor recyclingadvice. enel paisozonadeinstalaciön. Technical Support Product Warranty Registration If you haveanyquestionsregardingthe product Pleasetake a momentto registeryour installation,pleasecontactourTechnicalSupport. product online. Goto TRENDnet's website at: TOIIfree US/Canada: 1-855-373-4741 www.trendnet.com/register Regional p hone numbersavailable at www.trendnet.com/support TRENDnet 20675 Manhattan Place Torrance,CA90501 Copyright 0 2019.
