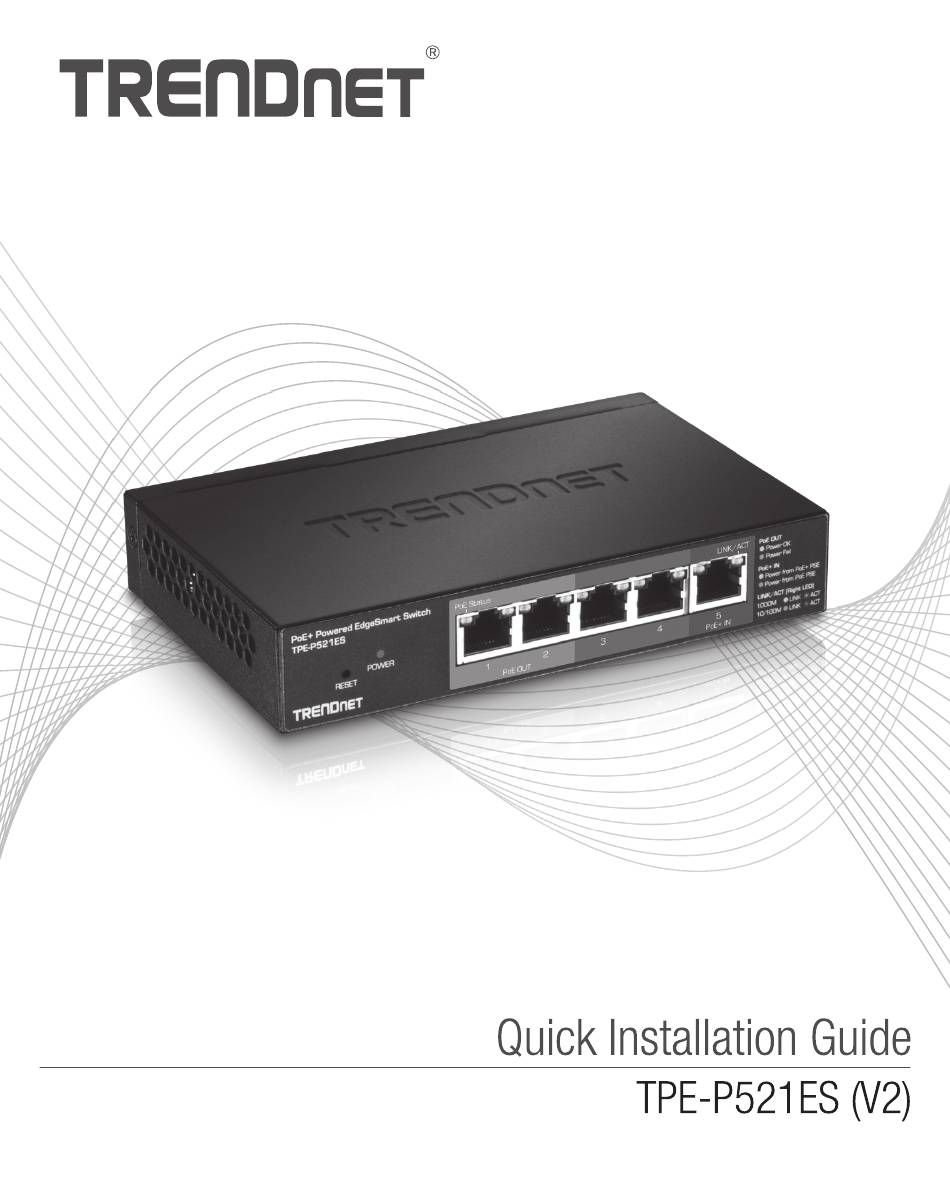

- Page 1 Quick Installation Guide TPE-P521 ES0/2)
- Page 2 Table of Contents 1 English 1 . Before You Start 2. Quick Reference 3. Hardware Installation and Configuration...
- Page 3 1. Before You Start Package Contents • TPE-P521 ES • Quick Installation Guide Minimum Requirements • POE / POE+Switch or Injector • Computer with an Ethernet port and web browser • Network cable 2. Quick Reference TPE-P521ES VoIP PoE Phone Power Socket PoE Out PoE+ In...
- Page 4 3. Hardware Installation and Configuration Power Socket TPE-P521ES PoE+ In PoE+ Injector 100m 3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0. 4. Open your web browser, type the IPaddress of the switch in the address bar, and then press Enter.
- Page 5 5. Enter the User name and Password, and then click LOGIN.By default: User Name: admin Password: admin Note: User Name and Password are case sensitive. TPE-P521ES LOGIN User Name: .tdmin Password: 6. Click System and then click IPv4 Setup. 7. Configure the switch to match the requirements of your network. Then click Apply to save changes.
- Page 6 Save Settings to Flash Save Settings to Hash Save 11. Click 0K. WARNING Save configuration finished. Note: To download the latest version of the user's guide and the utility, please go to http://www.trendnet.com/support and select the TPE-P521ES within the Products Download dropdown list.
- Page 7 Product Name: 5-Port Gigabit POE+Powered EdgeSmart Switch with POEPassThrough Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety IEC 62368-1:2014 (Class B) EN 61000-3-2:2014...
- Page 8 Product Warranty Registration If youhaveany questionsregardingthe product Pleasetake a momentto registeryour installation,pleasecontact ourTechnical S upport. productonline. GO to TRENDnet's websiteat: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regionalphonenumbersavailable at www.trendnet.corn/support TRENDnet 20675 Manhattan Place Torrance,CA90501 Copyright 0 2020. All Rights Reserved.TRENDnet. TPE-P521ES (V2)/ 10.09.2020...
