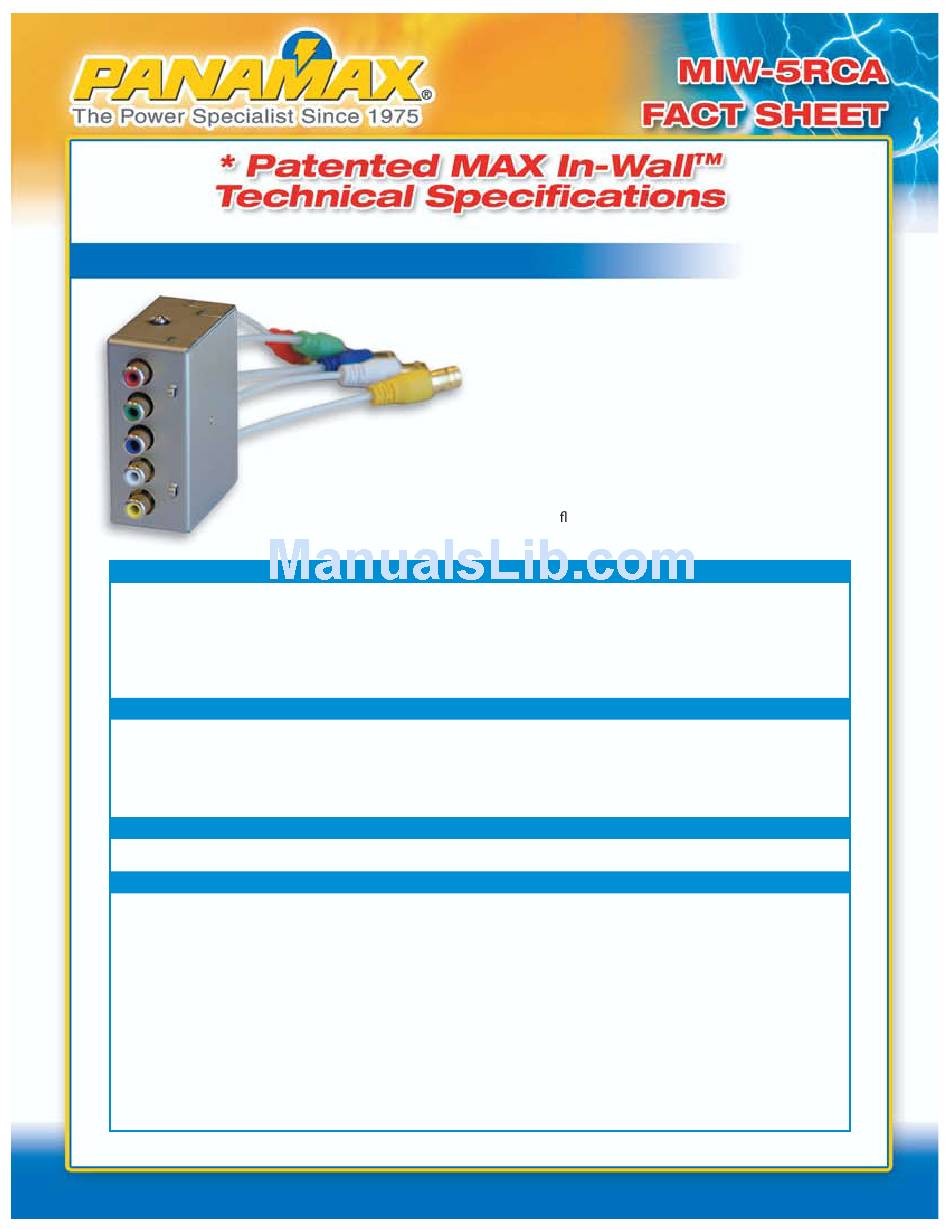

Panamax MIW-5RCA Datasheet

MAX In-Wall ™ 5RCA

GENERAL

Product Name _____________________________________________________________________MAX In-Wall™ 5RCA
Part Number _____________________________________________________________________________MIW-5RCA
Retail Price _________________________________________________________________________________ $59.95
Application _____________________________________________________________ Custom Home Theater Systems
Power Cord ____________________________________________________________________________________ NO
UL Listed (UL497) ________________________________________________________________________________YES

SIGNAL LINE PROTECTION

Attenuation_________________________________________________________<0.6dB, 0-38MHz <1.9dB at 100MHz
Wires Protected _____________________________________________________________5 RG179U cables (10 wires)
Protection Mode ______________________________________________________________Signal/Sheath to Ground
Clamping _____________________________________________________________________________________9.0V

PRODUCT WARRANTY

Product Warranty_____________________________________________________________________________3 years

ORDERING INFORMATION

Unit Dimensions _______________________________________________________________1.19"W x 5.50"L x 2.88"H
Individual Unit UPC ___________________________________________________________________0 50616 00733 7
Packaging Type ___________________________________________________________________________ Retail Box
Packaging Dimensions __________________________________________________________2.95"W x1.35"L x 7.85"H
Unit Weight (packaged)________________________________________________________________________0.6 lbs.
Units per Inner Pack _______________________________________________________________________________6
Inner Pack UPC ____________________________________________________________________3 00 50616 00733 8
Inner Pack Dimensions _________________________________________________________ 6.50"W x 4.80"L x 8.40"H
Inner Pack Weigh _____________________________________________________________________________4.0 lbs.
Units per Master Carton ______________________________________________________________ 24 (4 Inner Packs)
Master Carton UPC_________________________________________________________________5 00 50616 00733 2
Master Carton Dimensions _____________________________________________________ 9.90"W x 13.30"D x 8.70"H
Master Carton Weight _________________________________________________________________________ 17 lbs.
* Patent-Pending
The MAX In-Wall™ 5RCA Module
MIW-POWER unit to protect against surges on both
signal and power lines; thus, eliminating potential
grounding problems by creating an Isolated Ground
Reference for the remote equipment. The
accepts RGBHV, component video, and/or stereo audio
signal lines running between source components and
remote equipment. Devices connect to color-coded RCA
connectors on the face of the module. Cabling inside
the wall connects to positive-lock BNC connectors.
Protect multiple signal lines with one module and the
installation exibility the MIW-5RCA
inserts into any
MIW-5RCA
delivers.
L510 Rev. B, 10/2007
