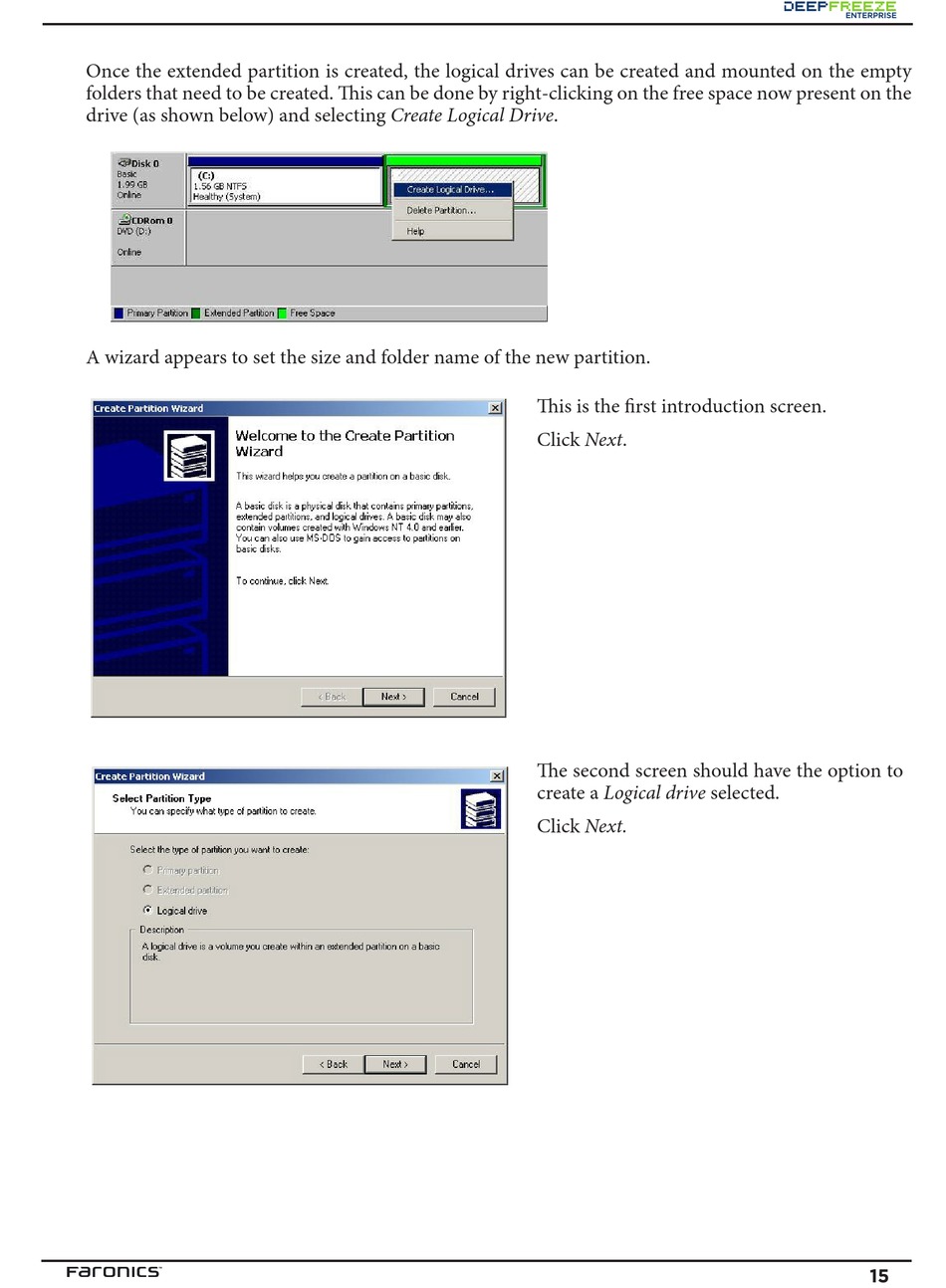

FARONICS DEEP FREEZE ENTERPRISE - TREND MICRO OFFICESCAN 6-13-2005 Manual page 15

Once the extended partition is created, the logical drives can be created and mounted on the empty
folders that need to be created. This can be done by right-clicking on the free space now present on the
drive (as shown below) and selecting Create Logical Drive.
A wizard appears to set the size and folder name of the new partition.
This is the first introduction screen.
Click Next.
The second screen should have the option to
create a Logical drive selected.
Click Next.
����������
15
