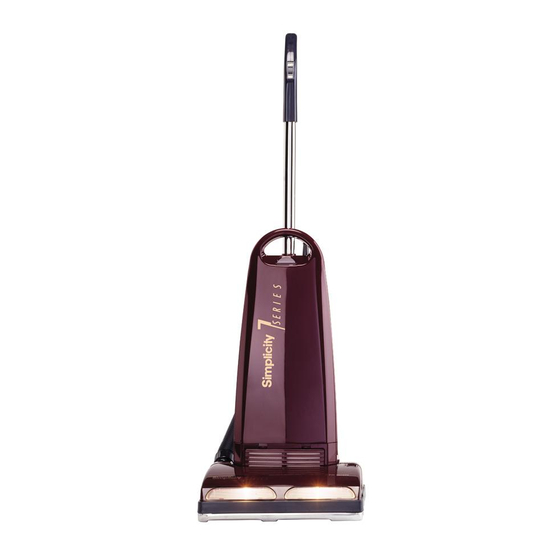

- Page 1 OWNERS MANUAL 1 SERIES VACUUM CLEANERS The best vacuums on the surfaces of the earthr Simplicity SERIES filtration Duratech System year warranty...
- Page 2 Your Simplicity@Vacuum Cleaner is made of high quality material and superior workmanship. The Simplicity@ VacuumCleanerwill work for you on carpets, f loors and may be usedwith cleaningattachmentsfor all your homecleaning needs.Pleaseread these operating instructions carefully before you useyour cleanerto assurethe full performanceand satisfaction it offers.
- Page 3 TABLE OFCONTENTS 1.Important Safety Instructions 2. Grounding Instructions ..2 3. Parts Identification & Replacement Parts 4. Getting Started: Attaching the Handle . 5. Vacuum Features.' On/OffSwitch..„..Quick Cord Release Handle Adjustmen ts EdgeCleaning .....5 Automatic Carpet Height Adjustment Carpet/Hoor Selector Full Bag Indicator Light..
- Page 4 GROUNDIN INSTRUCTIONS COMMERCIAL MODELS 7900 & 7950 Thisappliance must be grounded If it should malfunction or break down grounding provides a path of least resistance u.JTLEr for electric current to reduce the risk of electric shock. This applianceis equippedwith a cord having an equipment- groundingconductorandgroundingplug.
- Page 5 1. T he upper c ord storage h ook hasaquickre/ease action, Torelease thecord,rotatethehookdownwardand the cordwilldropoffthehandle forimmediate u se (Fig. 7 ). 2.Return thehookto theuprightpositionbeforeattempting to rewind the cord (Fig.8). Fig. 8 Fig. 7 The handleof thisvacuum cleaner c anbesetto oneof three position Upright, Middle o rLow.
- Page 10 TOREMOV NSTALL THE BOTTO PLAT To REMOVEBorrom PLATE 1.Unplugthepower cord Placevacuumcleanerin the low position by using the handfe releasepedal Then,turn the vacuum cleaner over, exposing the underside Move the two clip attachment knobs to the inward position (Fig. 30), releasing the bottom plate, Now remove the bottom plate (Fig.31).
- Page 11 W TOCHANG THE BELT ( CONT.) FORMODELS 7700, 7750, 7900 & 7950 ONLY unplug thepower cord. T urn theunitover a ndremove t he bottomplateasdescribed i n thepreceding section. Remove t hevented support f itting (Fig, 3 4).Take out the agitator assembly and remove t heworn orbroken b eltfrom theagitator p ulley andthemotordrive shaft(Fig.
- Page 12 • Changefilter bagsand filtersas recommended to maintain optimum cleaning efficiency. •AlwaysusegenuineSimpficity@ filter bagsand filters as useof other products may result in poor cleaning or filtration performance.Simplicity' filtration products are designed for maximumperformance Havemachine checkedperiodica/fy by your Authorized Simplicity@Dealer. •Useonly Simplicity' VacuumCleanerauthorizedservice centers for parts or service.
- Page 13 Authoriz Simplicity • Dealer WII/ provide warranty service for y our Simplicity' Vacuum Cleaner during the warranty period os follows: New orcomparabl rebuilt parts w ill b e provided inexchange fordefective...
- Page 14 Simplicity The best vacuums on the surfaces of the earth visit website www.simplicityvac.com Tolocate your nearest Simplicity Dealer, Call 1-888-974-6759 Simplicity' Vacuum Cleaners P.O. Fenton, MO 63026 2001 Swpucrry• VACUUMCtEANERS Unauthorized duplications ofonypartof thispubfication isprohibited without p riorwrittenapproval f romraconyCorporation.
