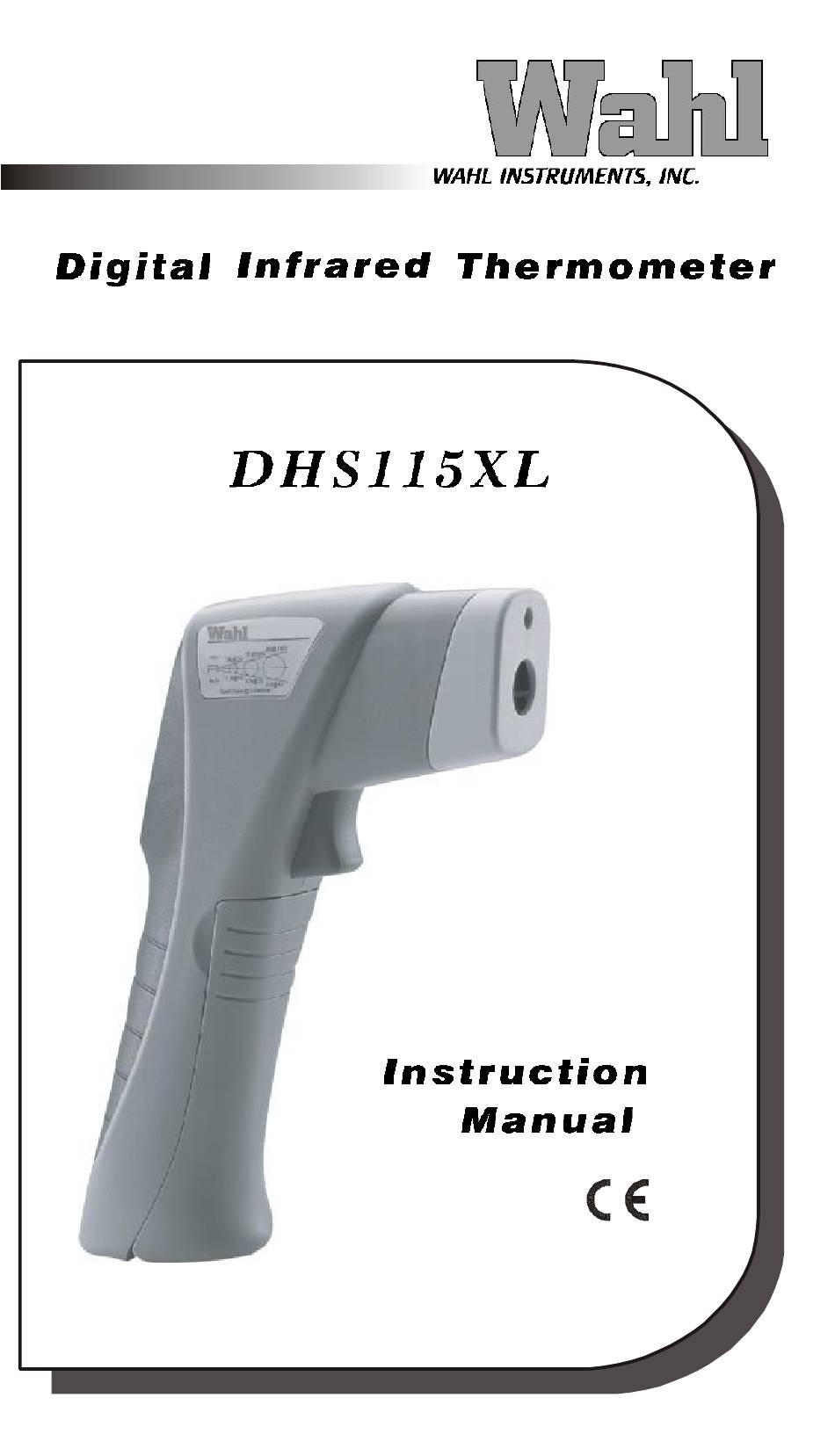

- Page 1 WAHL INSTRUMENTS, INC. Digital Infrared Thermometer DHS115XL Instruction Manual...
- Page 3 Table Content I . Introduction Features 1-2 Applications 2.Safety Information 2-1 Warning Cautions 2-3 Safety symbols 3.Specifications 4.0peration Instructions Quick Start 4-2 Instrument diagram 4-3 Displays and controls 5. Technical Information Distance to spot ratio Emissivity 6.Maintenance...
- Page 4 Introduction Thank you for purchasing the Wahl model DHS115XL, non-contact infrared thermometer. To measure temperature, simply point the unit at the object, pull the trigger and read the display. Releasing the trigger will put the unit into hold mode, which will display the captured reading for approximately six seconds and then power off.
- Page 5 2.Safety Information 2-1 Warning 2-1.1 Do not point laser directly at eye. Use caution around reflective surfaces. Keep out of reach of children. Cautions 2-2.1 DO NOT submerge the instrument in water. 2-2.2This product is not designed for use in medical evaluations.
- Page 6 3.Specifications DHS115XL Items Temperature Range -25-9990F (-32-5350) Accuracy From-25--40F (-32--200) ±30F (±20C) From -4-2120F (-20-1000) ±2% From 212-9990F (100-5350) Spectral Range 5-14 gm Repeatability ±20F (IOC) 0.10F (0.10) Resolution Response Time Fixed Fixed Emissivity Distance/Spot Ratio 12:1 Battery Type / Life 9V (NEDA1604, IEC6F22, 006P) / approx.
- Page 7 4 _ Operation Instructions Quick Start To measure a temperature, point the unit at the target you want to measure. pull the trigger and hold. Be sure to consider the target area inside the angle of vision of this instrument.The laserspot is usedfor aimingpurposesonly. Instrument Diagram LaserSizttinR...
- Page 8 4-3 Displays Controls 4-3.1Modes of Operation - In SCAN mde. tt-e instrument displays the current temperature, i n Celsiusor ocpr S*itchabie Fahrenheit. on the Liquid CrystalDisplay.Whenthe on/off trigger is released the unit will switch to HOLD mode and displaythe last reading for approximately 6 seconds.
- Page 9 5. Technical Information Distance Spot Ratio The D:S Ratio is the ratio of the distance from the target to the target diameter. This is determined by the optics of the unit. The smaller the target, the closer you should be to it. For an accurate measurement, the target must completely fill the spot.
- Page 10 6.Maintenance 6-1 Lens - Clean the lens by blowing off loose particles using clean compressed air. Gently brush remaining debris away with a camelhair brush. a cotton swab moistened with distilled water to carefully wipe the lens surface. NOTE: DO NOT use solvents to clean the lens.
- Page 12 PALMER Wahl Instruments, Inc. 234 Old Weaverville Road Asheville, NC 28804 -1228 Phone: (828) 658-31311 1-800-421-2853 Fax: (828) 658-0723 Email: info@palmerwahl.com Web : www.palmerwahl.com...
