Add Device - TP-Link TL-PA211KIT User Manual

TL-PA211 AV200 Mini Powerline Adapter

4.1.3 Add Device

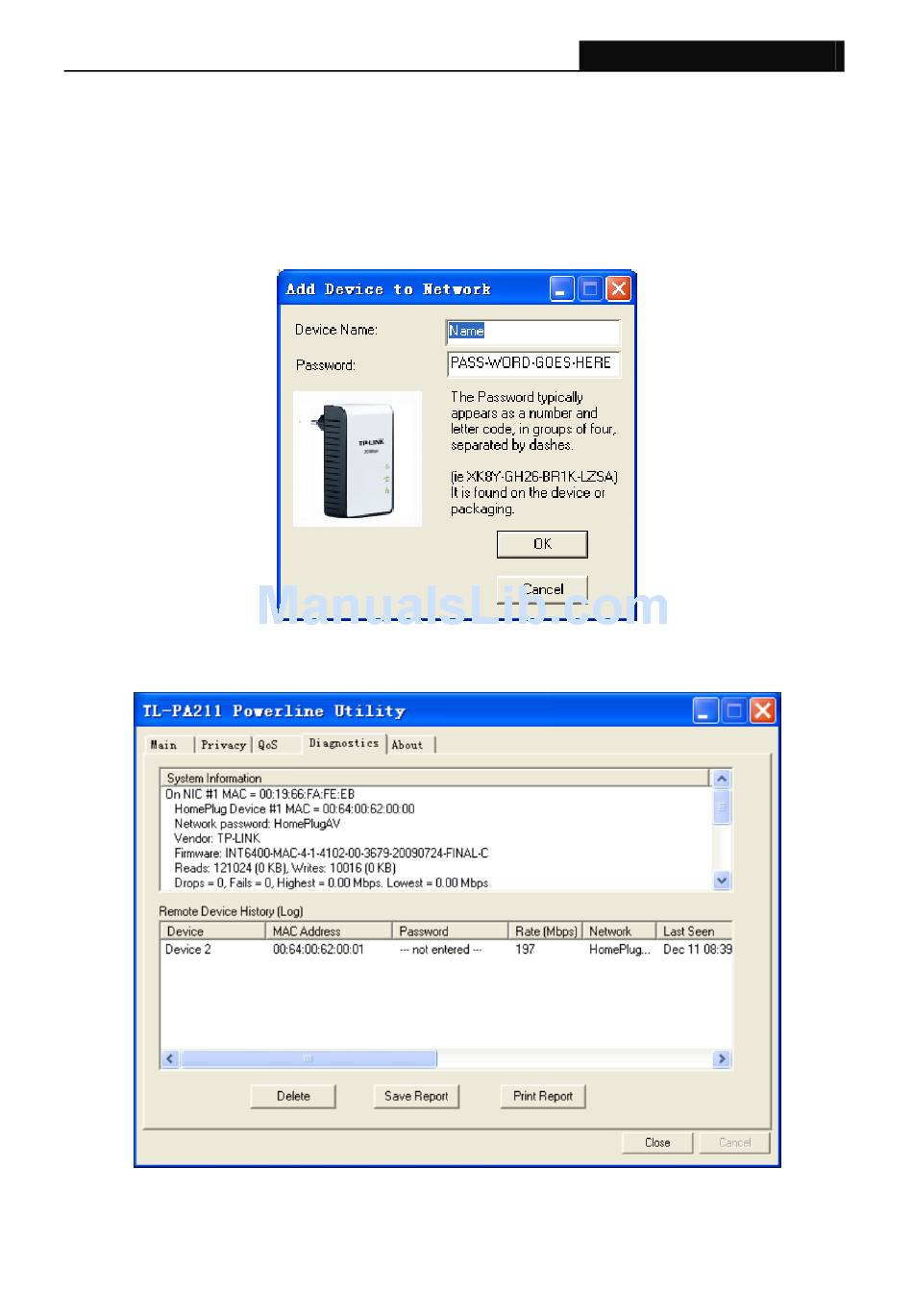

The following dialog box pop-up when clicking the "Add" button under Main configuration homepage.
The dialog box allows you to enter both the selected device‟s name and password. Noted that the Mini
Powerline Adapter must be present on the power grid in order to activate the set password and added to
the local network.
Enter your Device Name and Password (Take note to the password format) and click "OK" after setup.
The following screen display after the naming and password setting process, which is also the
Diagnostics configuration homepage.
14
