TL-PA211 AV200 Mini Powerline Adapter

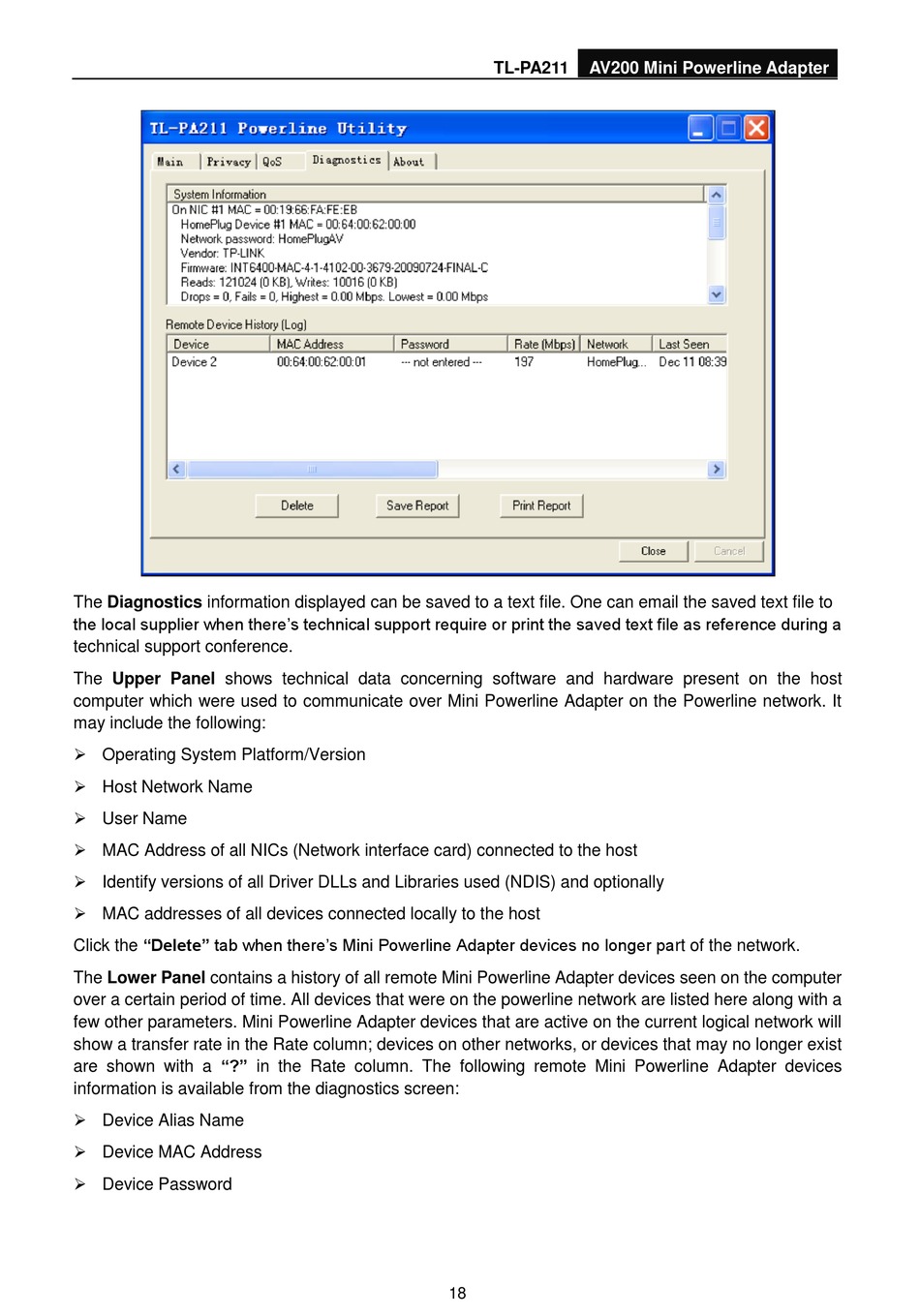

The Diagnostics information displayed can be saved to a text file. One can email the saved text file to
the local supplier when there‟s technical support require or print the saved text file as reference during a
technical support conference.
The Upper Panel shows technical data concerning software and hardware present on the host
computer which were used to communicate over Mini Powerline Adapter on the Powerline network. It
may include the following:
 Operating System Platform/Version
 Host Network Name
 User Name
 MAC Address of all NICs (Network interface card) connected to the host
 Identify versions of all Driver DLLs and Libraries used (NDIS) and optionally
 MAC addresses of all devices connected locally to the host
Click the "Delete" tab when there‟s Mini Powerline Adapter devices no longer part of the network.
The Lower Panel contains a history of all remote Mini Powerline Adapter devices seen on the computer
over a certain period of time. All devices that were on the powerline network are listed here along with a
few other parameters. Mini Powerline Adapter devices that are active on the current logical network will
show a transfer rate in the Rate column; devices on other networks, or devices that may no longer exist
are shown with a "?" in the Rate column. The following remote Mini Powerline Adapter devices
information is available from the diagnostics screen:
 Device Alias Name
 Device MAC Address
 Device Password
18
