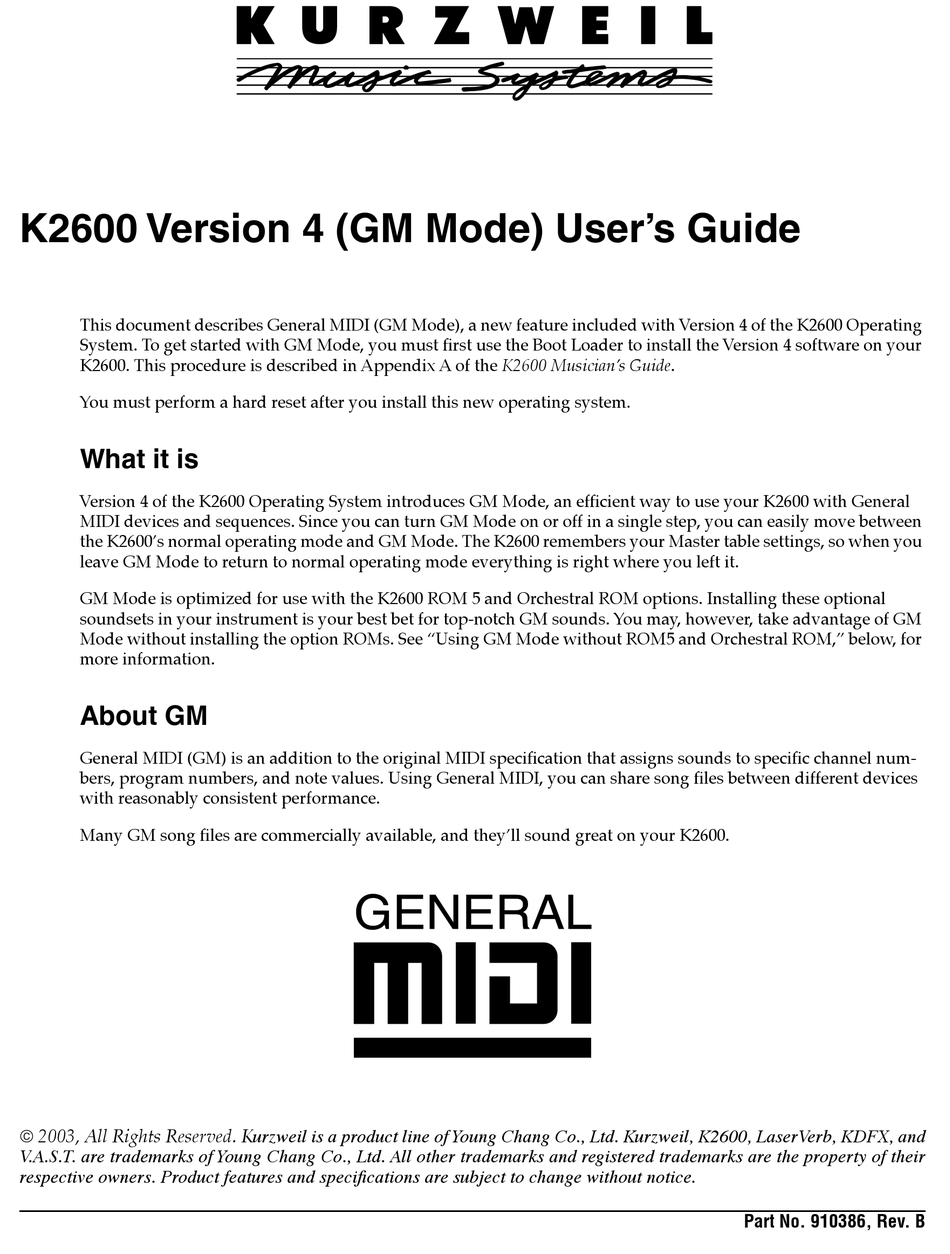

K2600 Version 4 (GM Mode) User's Guide
This document describes General MIDI (GM Mode), a new feature included with Version 4 of the K2600 Operating
System. To get started with GM Mode, you must first use the Boot Loader to install the Version 4 software on your
K2600. This procedure is described in Appendix A of the K2600 Musician's Guide .
You must perform a hard reset after you install this new operating system.
What it is
Version 4 of the K2600 Operating System introduces GM Mode, an efficient way to use your K2600 with General
MIDI devices and sequences. Since you can turn GM Mode on or off in a single step, you can easily move between
the K2600's normal operating mode and GM Mode. The K2600 remembers your Master table settings, so when you
leave GM Mode to return to normal operating mode everything is right where you left it.
GM Mode is optimized for use with the K2600 ROM 5 and Orchestral ROM options. Installing these optional
soundsets in your instrument is your best bet for top-notch GM sounds. You may, however, take advantage of GM
Mode without installing the option ROMs. See "Using GM Mode without ROM5 and Orchestral ROM," below, for
more information.
About GM
General MIDI (GM) is an addition to the original MIDI specification that assigns sounds to specific channel num-
bers, program numbers, and note values. Using General MIDI, you can share song files between different devices
with reasonably consistent performance.
Many GM song files are commercially available, and they'll sound great on your K2600.
 2003, All Rights Reserved. K urzweil is a product line of Young Chang Co., Ltd. Kurzweil, K2600, LaserVerb, KDFX, and
V.A.S.T. are trademarks of Young Chang Co., Ltd. All other trademarks and registered trademarks are the property of their
respective owners. Product features and specifications are subject to change without notice.
Part No. 910386, Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the K2600 V4 GM MODE - REV B and is the answer not in the manual?

Questions and answers

Related Manuals for Kurzweil K2600 V4 GM MODE - REV B

Summary of Contents for Kurzweil K2600 V4 GM MODE - REV B

  • Page 1 Many GM song files are commercially available, and they’ll sound great on your K2600.  2003, All Rights Reserved. K urzweil is a product line of Young Chang Co., Ltd. Kurzweil, K2600, LaserVerb, KDFX, and V.A.S.T. are trademarks of Young Chang Co., Ltd. All other trademarks and registered trademarks are the property of their respective owners.

  • Page 2: Inside Gm Mode

    K2600 Version 4 (GM Mode) User’s Guide Inside GM Mode Inside GM Mode Here’s what happens when you enable GM Mode: • On all channels except channel 10 (which GM uses for drums), you will see only the 128 GM programs.
  • Page 3 K2600 Version 4 (GM Mode) User’s Guide Enabling GM Mode from the Master page Enabling GM Mode from the Master page In the V4.0 K2600 operating system, the first Master page (MAST1) now has a GM soft button: Master|||GM|Samples:8192K|||Memory:485K| Tune||||||: 0ct|||||||||||||||||||||||||| Transpose|:0ST|||||||||||||||||||||||||| KB3Chan|||:1|||||||||||||||||||||||||||| VelTouch||:1|Linear|||||||||||||||||||||...
  • Page 4 K2600 Version 4 (GM Mode) User’s Guide GM Mode in Song Files GM Mode in Song Files The Edit Song:COMMON page now has a GM parameter for each song: EditSong:COMMON||||||||||||||<>Track:1|| Tempo|||||: 120||||| |StartStep|||:1|||||| TimeSig|||:4/|4|||||TempoControl:Song||| EffectChan:1||||||||TriggerChan|:1|||||| ChainTo|||:0|None|||TriggerCtl||:ON||||| TrackDest|:----|----|----|----|GM:On|||| DrumTr ack|:-- --|---- |----|- ---|||| ||||||...

  • Page 5: General Midi Programs

    K2600 Version 4 (GM Mode) User’s Guide General MIDI Programs General MIDI Programs The table below shows the 128 General MIDI programs. The ID numbers shown are the locations that these pro- grams will occupy in GM Mode. In Standard Mode the program numbers will be 400-527. You can create your own GM sets as well, provided that you store the programs at 400-527 and the drum kits at 528-535.

  • Page 6: Gm Drum Kits

    K2600 Version 4 (GM Mode) User’s Guide General MIDI Programs GM Drum Kits The table below lists the drum kits provided with ROM 5 and GM Mode for the K2600. The location for the kits (as shown in columns 1 and 2 of the table) will depend on whether or not GM Mode is enabled. You can also create own GM drum kits and store them at locations 528-535.
  • Page 7 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Grand Piano MWheel Vibrato Glockenspiel MWheel Vibrato MIDI 22 Reverb Wet/Dry level MIDI 22 Reverb Wet/Dry level MIDI 23 Reverb Time MIDI 23 Reverb Time...
  • Page 8 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Perc Organ MIDI 22 Reverb Wet/Dry level Steel Str Guitar MWheel Vibrato MIDI 23 Reverb Time MIDI 22 Reverb Wet/Dry level MIDI 24 HF Dampening MIDI 23 Reverb Time...
  • Page 9 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Pick Bass MWheel Vibrato Contrabass MWheel Vibrato MIDI 22 Reverb Wet/Dry level MIDI 22 Reverb Wet/Dry level MIDI 23 Reverb Time MIDI 23 Reverb Time MIDI 24 HF Dampening...
  • Page 10 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Choir Aahs MWheel Vibrato Brass Section MWheel Vibrato MIDI 22 Reverb Wet/Dry level MIDI 22 Reverb Wet/Dry level MIDI 23 Reverb Time MIDI 23 Reverb Time MIDI 24 HF Dampening...
  • Page 11 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Bassoon MWheel Vibrato Ocarina MWheel Vibrato MIDI 22 Reverb Wet/Dry level MIDI 22 Reverb Wet/Dry level MIDI 23 Reverb Time MIDI 23 Reverb Time MIDI 24 HF Dampening MIDI 24...
  • Page 12 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Fantasia MWheel Vibrato Soundtrack MWheel Vibrato MIDI 22 Reverb Wet/Dry level MIDI 22 Reverb Wet/Dry level MIDI 23 Reverb Time MIDI 23 L/R Mix Reverb MIDI 24 HF Dampening MIDI 24...
  • Page 13 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Shamisen MWheel Vibrato Woodblock MWheel Vibrato MIDI 22 Reverb Wet/Dry level MIDI 22 Reverb Wet/Dry level MIDI 23 Reverb Time MIDI 23 Reverb Time MIDI 24 HF Damping MIDI 24...
  • Page 14 K2600 Version 4 (GM Mode) User’s Guide Standard Mode Controller Assignments Name Ctrl Function Name Ctrl Function Telephone MWheel Vibrato Brush Kit MWheel Vibrato MIDI 22 Reverb Wet/Dry level MIDI 22 Reverb Wet/Dry level MIDI 23 Reverb Time MIDI 23 Reverb Time MIDI 24 HF Damping...
