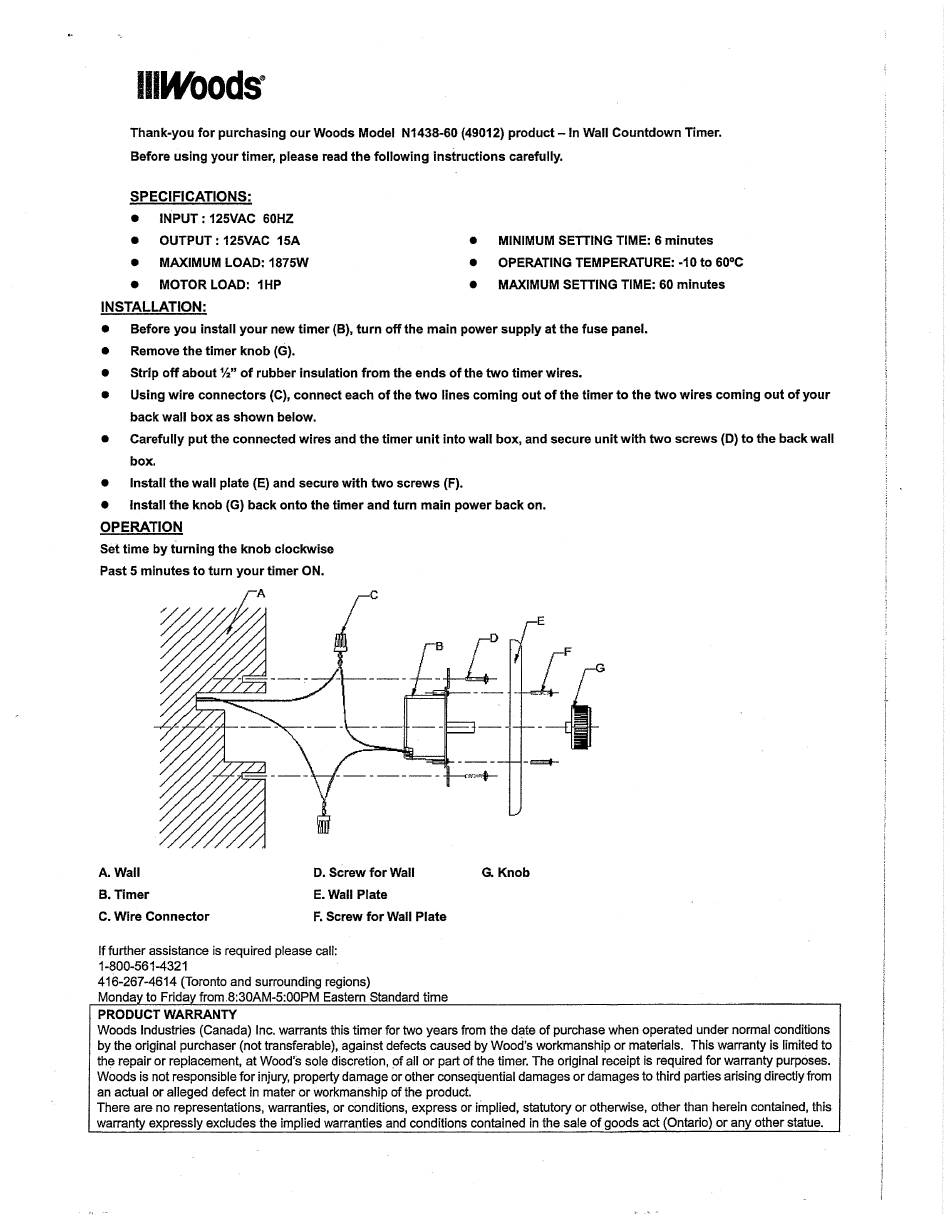

Woods N1438-60 Quick Start Manual

http://waterheatertimer.org/Woods-timers-and-manuals-old.html#countdown
http://waterheatertimer.org/Woods-timers-and-manuals-old.html#countdown
IllWoods
Thank-you for purchasing our Woods Model N1438-60 (49012) product —In Wall Countdown Timer.
Before using your timer, please read the following
SPECIFICATIONS:
INPUT : 125VAC 60HZ
OUTPUT : 125VAC
. MAXIMUM LOAD: 1875W
MOTOR LOAD: 1 HP
INSTALLATION:
Before you install your new timer (B), turn off the main power supply at the fuse panel.
Remove the timer knob (G).
Strip off about %" of rubber insulation
Using wire connectors (C), connect each of the two lines coming out of the timer to the two wires coming out of your
back wall box as shown
Carefully put the connected
box.
Install the wall plate (E) and secure with two screws (F).
Install the knob (G) back onto the timer and turn main power back on.
OPERATION
Set time by turning the knob clockwise
Past 5 minutes to tum your timer ON.
A. Wall
B. Timer
C. Wire Connector
If further assistance is required please call:
1-800-561-4321
416-267-4614 (Toronto and surrounding regions)
Monda to Frida from
PRODUCT WARRANTY
Woods Industries (Canada) Inc. warrants this timer for two years from the date of purchase when operated under normal conditions
by the original purchaser (not transferable), against defects caused by Wood's workmanship or materials. This warranty is limited to
the repair or replacement, at Wood's sole discretion, of all or part of the timer. The original receipt is required for warranty purposes.
Woods is not responsible for injury, property damage or other conseqUentiaIdamages or damages to third parties arising directly from
an actual or alleged defect in mater or workmanship of the product.
There are no representations, warranties, or conditions, express or implied, statutory or otherwise, other than herein contained, this
warranty expressly excludes the implied warranties and conditions contained in the sale of goods act (Ontario) or any other statue.
instructions
15A
from the ends of the two timer wires.
below.
wires and the timer unit into wall box, and secure unit with two screws (D) to the back wall
D. Screw for Wall
E. Wall Plate
F. Screw for Wall Plate
Eastem Standard time
carefully.
MINIMUM SETTING TIME:
•
OPERATING TEMPERATURE:
•
MAXIMUM SETTING TIME:
•
G. Knob
6 minutes
-10 to 600C
60 minutes
