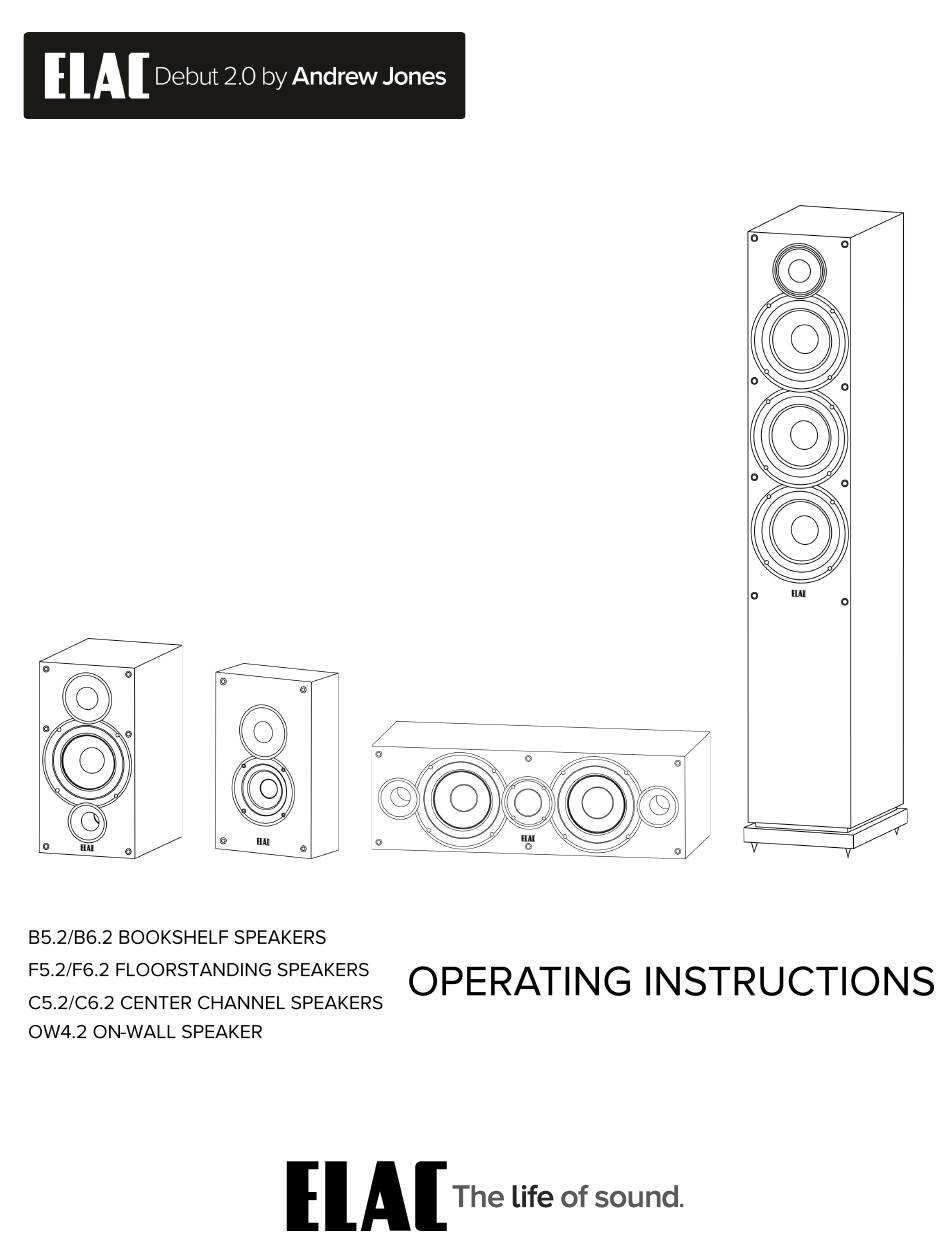

- Page 1 Debut 2.0 by Andrew Jones B5.2/B6.2 BOOKSHELF SPEAKERS F5.2/F6.2 FLOORSTANDING SPEAKERS OPERATING INSTRUCTIONS C5.2/C6.2 CENTER CHANNEL SPEAKERS OW4.2 ON-WALL SPEAKER The Life of sound.
- Page 2 • In combination with certain materials / lacquers / material surfaces, anti-slip feet or spike washers may cause colored imprints on the surfaces. ELAC Debut 2.0 Speakers I www.elac.com I Page 2...
- Page 3 The speaker must recycled in accordance with local legislation. your local government further information on recycling as the device contains valuable raw materials. Disable the speaker(s) before disposal. ELAC Debut 2.0 Speakers I www.elac.com I Page 3...
- Page 4 Philosophy Thank you for purchasing this ELAC product. Since the time we started (1926), ELAC has always striven to achieve the very best. Your new ELAC speakers are built to the highest standards using high-quality components that are carefully constructed to deliver the best-in-class sound quality.
- Page 5 To replace the grill, align the pegs on the grills with the holes on the speaker and press in gently. IMPORTANT! ELAC F5.2/F6.2 Floorstanding Speakers Safety Clip The ELAC F5.2 and F6.2 Floorstanding speakers include a safety clip pre-installed on the back of the cabinet for securing to a wall to prevent tip-over.
- Page 6 Speaker Placement Achieve maximum performance and optimal sound quality from your ELAC Debut speakers with proper speaker placement and set-up. While not all rooms are the same, use the following guidelines to configure the speakers for your particular room. There are no "exact"...
- Page 7 This set up creates the optimum imaging performance. • If you find that your B5.2/B6.2 or F5.2/F6.2 left and right speakers are too far apart, angle (toe in) them towards the listening position to gain a more focused central image .
- Page 8 Surround Sound Setup Whether you use the B5.2/B6.2 bookshelf or the F5.2/F6.2 floorstanding speakers for a 5.1-channel surround set-up, avoid placing the surround speakers forward of your listening position. The surround speakers should be spread apart wider than the front speakers. In addition, elevate the speakers to the same height or slightly higher as the front speakers for the most enveloping sound field.
- Page 9 OR BELOW FIG. 3 Optimal results for the center are obtained by setting the receiver/processor center channel size to small. If you have a choice, set the crossover frequency to 80Hz. ELAC Debut 2.0 Speakers I www.elac.com I Page 9...
- Page 10 We recommend you consult installation professional mounting wall plate to ensure Fig. 1 secure mount. Wall Mounting screws are not provided. Typical Placement for On-Wal Speakers ELAC Debut 2.0 Speakers I www.elac.com I Page 10...
- Page 11 Rated Cabinet Finish Black Brushed Vinyl Black Brushed Vinyl Port Dual Flared Dual Flared Bindin Posts 5-Wa Metal Metal Dimensions xHxD 23.35" x 7.61" x 10.55" 7.87" x 12.76" x 3.94" ELAC Debut 2.0 Speakers I www.elac.com I Page 11...
- Page 12 Limited Liability Warranty Passive Speakers (No Built-in Amplifier) ELAC Americas Inc. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 3 (Three) years from the original date of purchase. During...
- Page 13 ELAC AMERICAS INC. ELAC ELECTROACUSTIC GMBH 11145 KNOTT AVE. SUITES E & F FRAUNHOFERSTRAßE CYPRESS, CA. 90630 24118 KIEL, GERMANY...
