Summary of Contents for Digital Foci Portable Digital Photo Album
- Page 1 Photo Book 8” Portable Digital Photo Album User’s Guide...
- Page 2 ©2009 Digital Foci, Inc. All rights reserved. This publication is intended for sole use by the owner of the associated device. Neither this publication nor any part of this publication may...
- Page 3 Device. Any unauthorized or improper use of Device may cause your warranty to become void. If there is a problem or defect with your Device, please contact Digital Foci, Inc. Disclaimer This limited warranty is the only warranty Digital Foci, Inc. makes for Device. To the...
- Page 4 Caring for Photo Book To keep Photo Book in good condition and working properly, follow these basic guidelines: • Do not drop, jar, bump, shock or expose Photo Book to severe vibration. • Do not operate or store Photo Book in dusty environments. •...
-
Page 5: Table Of Contents
Organizing Your Files to Play in a Specified Order ... 26 4.2. Displaying a Microsoft PowerPoint Presentation ... 26 Frequently Asked Questions & Troubleshooting ... 27 Digital Foci LCD Display Pixel Policy ... 30 Appendix – Technical Specifications ... 31 Regulatory Compliance ... 33 ... -
Page 6: Welcome

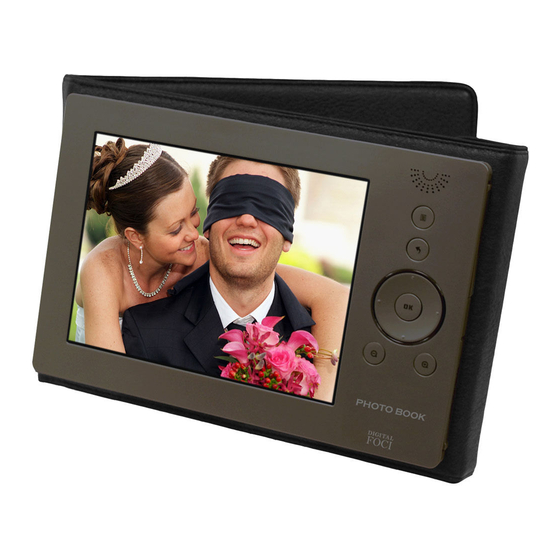

Welcome! Congratulations on purchasing Photo Book – 8” Portable Digital Photo Album. 1.1. Photo Book Features • 8” digital LCD with 800 x 600 resolution • Large 4 GB internal memory holds thousands of digital photos • Built-in memory card slots provide native support for: CF, SD/HC card, MMC, MS/MS Pro, and xD-Picture Card (Supports mini-SD, RS-MMC, MS Duo with adapter.) -
Page 7: Package Contents
New versions of the Photo Book firmware are periodically released with new features and format support to enhance your user experience. Check the Digital Foci website available firmware updates and instructions. Our latest firmware is v1.0.5. Follow this link for firmware information and instructions on how to update this on your Photo Book: http://www.digitalfoci.com/downloads/firmware/PBK/Updating_Photo_Book_Firm... -
Page 8: Getting Started
Getting Started 2.1. Photo Book Overview There are 3 ways to view photos and videos on Photo Book: • Copy photos and videos from your computer to the Photo Book Internal Memory. You can also copy any music files you want to play as the background music. - Page 9 Photo Book (PBK-080) User’s Guide Page 4 Version 1.0.5-R1...
-
Page 10: Device Layout
Photo Book (PBK-080) User’s Guide 2.2. Device Layout Page 5 Version 1.0.5-R1... -
Page 11: Powering Photo Book
To turn on Photo Book, press the Power Button. The Power LED will turn green and the Digital Foci screen will appear while Photo Book initializes and powers To turn off Photo Book, press the Power Button. Photo Book will shut down in about 2 seconds and the LED will turn off. - Page 12 2.3.3. Battery Saving Features Photo Book has two power saving features to conserve battery power. 1. Dimming backlight: The LDC backlight will dim when the device is performing a copy task from memory card or flash drive to Internal Memory. 2.
-
Page 13: Setting Up Photo Book
2.4. Setting Up Photo Book From the Home Screen, press MENU to display the Menu Options. Next, select Setup Icon 2.4.1. Setup Options The following screen shows the main Setup screen. Follow these instructions to select Setup option and to change the settings: 1. - Page 14 2.4.3. Setup Option – Screen Brightness 1. Select Brightness Icon 2. Press LEFT / RIGHT to adjust the value between 0 and 10. The brightness of the screen will be adjusted real-time. 3. When you finish setting the desired brightness, press OK to confirm your setting.
- Page 15 2.4.6. Setup Option – Auto Shutdown Timer 1. Select Auto Shutdown Timer Icon allowed before Photo Book automatically shuts down to conserve battery life. 2. You can set the timer to a value between 5 minutes and 55 minutes. You can also select Off to disable this feature.
-
Page 16: Copying Files From Computer To Photo Book Internal Memory
2.5. Copying Files from Computer to Photo Book Internal Memory 2.5.1. Connecting Photo Book to Your Computer 1. Open the bottom door on the right side of Photo Book to access the USB port of Photo Book. 2. Connect Photo Book to your computer using the included USB mini-B cable. 3. -
Page 17: Accessing Memory Card And Usb Flash Drive On Photo Book
2.6. Accessing Memory Card and USB Flash Drive on Photo Book 2.6.1. Connecting Memory Cards or USB Flash Drive To access the memory card slots and USB port, open the card slot cover on the right side of Photo Book. Insert your memory card in the designated memory card slot with the label side facing towards you as shown below. - Page 18 2.6.2. Viewing Photos and Videos on the Memory Card or USB Flash Drive 1. After a card is inserted or a USB flash drive is connected, the Menu options with the available card or flash drive icons will pop up automatically. Or, you can press MENU to bring up the Menu options.
- Page 19 7. During the copy process, the screen will display the following information: Note: The LCD backlight will dim during the copy process to save battery power. 8. Upon copy completion, you will see the Backup Summary screen which shows the total number of files copied, copy speed, total size of files copied, and free space on the Photo Book Internal Memory.
- Page 20 2.6.4. Copying Selected Files or Albums from Memory Card or USB Flash Drive to Photo Book Internal Memory This section explains how to copy selected files or albums from a memory device to Photo Book Internal Memory. 1. With the selected memory device displayed, navigate to the file or album you want to copy.
-
Page 21: Enjoying Photos And Videos On Photo Book
Enjoying Photos and Videos on Photo Book The following image file formats are supported by Photo Book: File Format Details JPEG Baseline TIFF 1 & 8 bit Grayscale; 8, 16, & 24 bit Color Monochrome, 8 bit Color Standard format Refer to Section 6 Appendix –... -
Page 22: Viewing Photos In Thumbnail View
• Press LEFT / RIGHT / UP / DOWN to move Album Selector cursor and browse through the available photo albums on the Internal Memory. • Press OK to view the Thumbnail View of the selected album. • Press + / – to adjust volume up / down (if music is playing). •... -
Page 23: Viewing Photos In Manual Slideshow Mode
The following screen shows the Thumbnail View. • Press LEFT / RIGHT / UP / DOWN to move the Photo Selector cursor. • Press OK to display the selected photo full screen. • Press + / – to adjust volume up / down (if music is playing). •... - Page 24 3.3.1. Scrolling Through Photos Manually With the photo displayed full screen, press RIGHT / LEFT (or DOWN / UP) to manually scroll to the next / previous photo. Press MENU to show/hide file name and counter information. 3.3.2. Zooming Photos With the photo displayed full screen, you can zoom in and out on the photos by pressing + / –.
-
Page 25: Playing Automatic Photo Slideshow
3.4. Playing Automatic Photo Slideshow From Thumbnail View, you can start an automatic Flip-Page slideshow or Full-Screen slideshow with adjustable time intervals. 1. From Thumbnail View, press MENU to access the MENU option. 2. Select Flip-Page Slideshow Icon In this mode, photos will advance automatically with an elegant Photo Book page-turning effect. -
Page 26: Playing Music On Photo Book
3.5. Playing Music on Photo Book The following music file formats are supported by Photo Book: Audio Sampling Decoder Rate 48 kHz 48 kHz 48 kHz 48 kHz 48 kHz FLAC 48 kHz All available music files in the root location of the memory source will play in random order in the background when you are in Album View and when there is no music file in the selected album. -
Page 27: Viewing Videos On Photo Book
3.6. Viewing Videos on Photo Book The following video file formats are supported by Photo Book: Video Decoder Resolution MJPEG 640x480@30fps MPEG-1 352x288@30fps MPEG-4 720x480@30fps Note: Photo Book does not support Quicktime format (.mov) video files or video files with resolution higher than 640x480. Each video file will be shown with a video icon in Thumbnail View. -
Page 28: Using File Management Features On Photo Book
3.7. Using File Management Features on Photo Book This section explains how to use the Multi-Select, Copy, Paste, and Delete function. Use these functions to: • Copy selection of photo, video, and text files from one Album to another Album •... - Page 29 4. A confirmation message, ‘Copied to clipboard’ will pop up. Press OK to acknowledge. 5. Next, navigate to the desired target location to copy the selected item(s). 6. Press MENU and select Paste Icon 7. When you see the confirmation message, ‘Paste from clipboard?’ press OK to confirm.
- Page 30 3. A confirmation message, ‘Copied to clipboard’ will pop up. Press OK to acknowledge. 4. Next, navigate to the desired target Album to copy the selected item(s). Press OK so that you are in the Thumbnail View of the target Album. 5.
-
Page 31: Tips And Techniques
Tips and Techniques 4.1. Organizing Your Files to Play in a Specified Order Photo Book plays your photos in alphabetical order. If you want to arrange your photos so that they playback in a specific sequence, you can use the computer to rename the files with some kind of sequential naming pattern to match your desired playback sequence. -
Page 32: Frequently Asked Questions & Troubleshooting
Frequently Asked Questions & Troubleshooting What is the optimal resolution of photos to be played back on Photo Book? The recommended resolution for the images is the actual screen resolution of Photo Book, which is 800x600 (SVGA) resolution. Please note that images of higher resolution will be automatically resized for display according to the screen resolution. - Page 33 Photo Book will not recognize my memory card. Check to see that your memory card is inserted in the correct slot and in the correct orientation. Can I play music in the background while viewing photo slideshow? To play music along with your photos slideshow, copy your music (MP3, WMA, or AAC) files to the Photo Book Internal Memory (or memory card).
- Page 34 You will be notified about any important updates on your Photo Book. Technical Support If you have any questions about using your Photo Book, please contact Digital Foci, Inc. technical support at support@digitalfoci.com or call (888) NOW-FOCI / (888-669-3624).
-
Page 35: Digital Foci Lcd Display Pixel Policy
‘off’. The dark pixel anomaly will always be dark and will not show any color. Standard Pixel Policy Digital Foci warrants that any LCD display with an unacceptable number of pixel anomalies will be repaired or replaced. To qualify for repair or replacement under warranty, the number of pixel anomalies on the TFT LCD panel must exceed these industry standards. -
Page 36: Appendix - Technical Specifications
Appendix – Technical Specifications Model no. Display Screen resolution Picture aspect ratio Internal memory Memory card supported USB Host Capability Copy status indicator Image format support Music format support Video format support Auto-rotate image Zoom, pan rotate image Slideshow options Adjustable time intervals Built-in speaker Battery power... - Page 37 *RAW image formats supported: .CR2: 1Ds Mark2, 1IDs, 1Ds Mark3, 1D Mark3, 1D Mark2N, 1D Mark2, 1D, 5D, 5D Mark2, 10D, 20D, 30D, 40D, 50D, 1000D, D30, D60, D400, 300D(Rebel), Canon 350D(Rebel XT), 400D(Rebel Xti), 450D (rebel XSi) .CRW: G1, G2, G3, G5, G6, G9, G10, S30, S40, S45, S50, S60, S70, Pro1 .NEF: D300, D3, D2H, D2Xs, D2X, D1H, D1X, D1, D200, D100, D90, D80, D70s, D70, Nikon D60, D50, D40, D40X, D700, E5700...
-
Page 38: Regulatory Compliance
TV. However, we do not guarantee the absence of interference. If you modify the device in any way, without approval from Digital Foci, Inc., your device may violate FCC regulations. Violation of FCC regulations may cause the FCC to void your rights to use the modified device. - Page 39 3111 E. Via Mondo, E. Rancho Dominguez, California, 90221 USA Copyright 2009 Digital Foci, Inc. All rights reserved.
