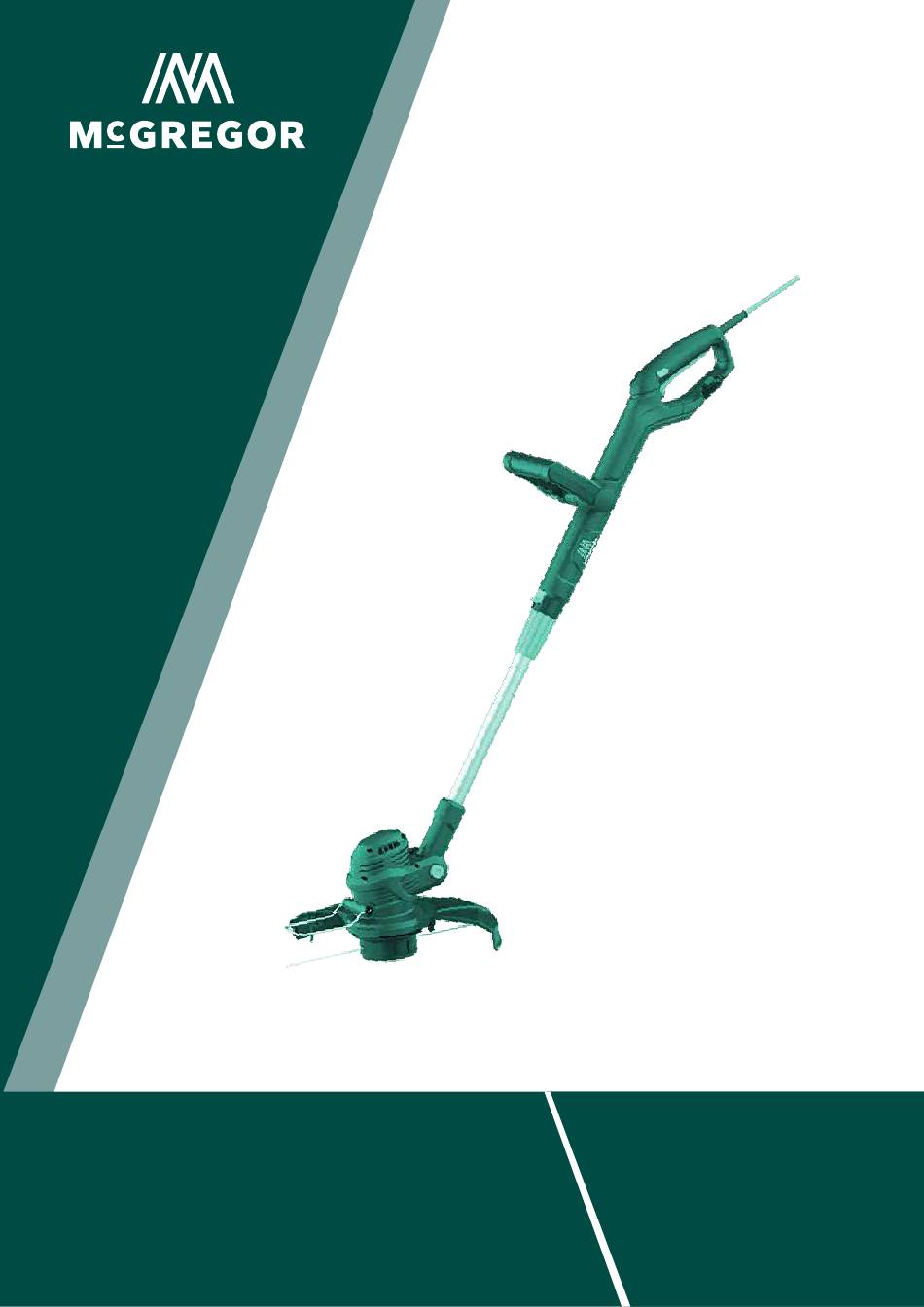

INSTRUCTION

MANUAL

McGregor 350W

Grass Trimmer

5251270 (Model: MCEGT3525)

Version no. Oct 2024

Important - Please read these

instructions fully before starting assembly

AFTER SALES SUPPORT

0345 605 2063

These instructions contain important information that will help

you get the best from your trimmer, ensuring it is assembled

correctly and safely. If you need help or have damaged or

missing parts, call the After Sales Support on 0345 605 2063

Need help?

Do you have a question about the MCEGT3525 and is the answer not in the manual?

Questions and answers

Summary of Contents for McGREGOR MCEGT3525

Page 1 INSTRUCTION MANUAL McGregor 350W Grass Trimmer 5251270 (Model: MCEGT3525) Version no. Oct 2024 Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2063 These instructions contain important information that will help you get the best from your trimmer, ensuring it is assembled correctly and safely.
Page 2 Contents Safety Information ........................... 3 Warning Symbols ........................... 3 Personal Safety ............................5 Operational Safety ..........................7 Maintenance and Storage Safety ......................8 Intended Use ............................9 In the Box ............................... 10 Parts ............................... 10 Assembly..............................11 Unpacking ..............................11 Fitting the safety guard ..........................11 Plant guard ............................
Page 3 Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols The following warning symbols appear throughout this instruction manual and indicate the appropriate safety measures you should take when assembling and operating the trimmer. Read operator’s manual. Wear eye protection.
Page 4 Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols (continued) IMPORTANT! When using this equipment, the following safety precautions must be followed to avoid injuries and damage. • Read all operating instructions carefully and comply with them.
Page 5 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety • Use protective safety equipment where appropriate. Always wear eye and hearing protection. The use of non-slip safety shoes will reduce personal injuries. • Avoid accidental starting. Ensure the switch is in the off-position before plugging in.
Page 6 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) • Always maintain the grass trimmer in good working order. Check for misalignment or binding of moving parts, breakage of parts, or other conditions that would affect its operation.
Page 7 Safety Information Important - Please read these instructions fully before starting assembly Operational Safety • The user remains responsible for any injury to third parties within the working area whilst the trimmer is being used. • Do not expose the appliance to rain. Do not use the appliance in damp or wet conditions.
Page 8 Safety Information Important - Please read these instructions fully before starting assembly Maintenance And Storage Safety • Switch off, remove the plug from the power outlet and ensure that all moving parts have stopped completely before leaving the appliance unattended and before changing, cleaning or inspecting any parts.
Page 9 Safety Information Important - Please read these instructions fully before starting assembly Recommendation The machine should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA. Intended use This grass trimmer is designed for domestic use only: •...
Page 10 In the Box Parts Main Handle Main Handle Safety Guard with Locking Tabs Rotary Button Line Cutting Blade Mains Cable Plant Guard Telescopic Shaft Cutting Line ON/OFF Switch Motor Housing Locking Collar Line Release Cable Strain Relief Locking Knob Telescopic Shaft Button Hook Switch Lock-off...
Page 11 Assembly Unpacking • Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact after sales support.
Page 12 Assembly Plant guard • Set the plant guard in the working position. • If the plant guard is no longer required, it can be pushed up again (park position). Adjusting the front handle • Push down the main handle rotary button and hold it in position. Turn the main handle section to adjust to 0°...
Page 13 Preparation Front handle The front handle can be set to various positions. Set the handle in such a manner that the trimmer head is slightly tilting forwards when in the working position. • Loosen the locking knob. • Move the front handle to desired position. •...
Page 14 Preparation Adjusting to trimming and edging modes 0° 90° The trimmer head angle is adjusted by pressing the head adjustment button and moving the trimmer head to the desired angle. There are 7 snap-in positions between 0° and 90° See figure 1. The trimmer head position is changed by pressing down the main handle rotary button and twisting the main handle section to 0°, 90°...
Page 15 Preparation Adjusting to trimming and edging modes (continued) Set up for in-line edging: • Push the button in the trimmer head and set the angle to 90°. • Push down the main handle rotary button and hold it in position. •...
Page 16 Preparation Adjusting to trimming and edging modes (continued) Adjusting to trimming and edging modes (continued) Set Up for Reach Mode: • Push the button in the trimmer head and set the angle to 90° • Use the trimmer in this horizontal position to reach under obstacles such as furniture and trampolines.
Page 17 Operation Switching on/off WARNING! To operate the grass trimmer, wear suitable clothing, eye and ear protection. Prior to every use, check that the grass trimmer is operative. Do not block the ON/OFF switch or the switch lock-off button. The switch and the button must reliably turn off the motor when you release the switch.
Page 18 Operation Advancing the cutting line This grass trimmer features a line auto-feed system that ensures the cutting lines are automatically lengthened by operating the ON/OFF switch. Switch on to reach full speed and then switch off, wait until the trimmer head has completely stopped and then switch on again.
Page 19 Operation Trimming 30° • Ensure the protective covering is removed from the line cutting blade protection before use. Ensure you wear gloves when removing this covering. • Adjust the trimmer head into the correct position for the trimming operation and make sure the handle is rotated to the 0°...
Page 20 Operation WARNING! • Always fit the guard before using the product. • When cutting longer or high grass, cut this down in 2 to 3 stages. • DO NOT cut long grass in one cut, as this will damage your grass trimmer, and make your warranty invalid.
Page 21 Operation Tips (continued) • For best results, do not cut wet grass because it tends to stick to the trimmer head and guard, prevents proper discharge of grass trimmings, and could cause you to slip and fall. • Do not allow the spool cover to drag on the ground or other surfaces. •...
Page 22 Maintenance Replacing the spool NOTE: Before replacing the spool, make sure the mains plug is disconnected from the unit. • Turn over the trimmer so that the trimming head is facing upwards. • Press together both locking tabs on the spool cover and remove the cover. •...
Page 23 Maintenance Winding the line NOTE: Self-winding is not recommended. If the line is not wound properly it can cause the trimmer feed system to malfunction. For this reason, users are strongly urged to purchase the pre-wound spool. Should you wish to wind the line yourself, the instructions are provided below: •...
Page 24 Maintenance Transportation • Switch the product off and disconnect the plug before transporting it anywhere. • Protect the product against scratching and secure it to avoid damage from impact. After use • Switch the product off, disconnect the power and let it cool down. •...
Page 25 Technical Data Technical Data Table Model MCEGT3525 Rated voltage 220-240V~ 50Hz Rated power 350W Motor speed 10000/min Cutting width 25cm Cutting line dia. 1.6mm Cable length Line feed type Automatic Line length 4.3m*2 Measured sound pressure level (L 80.9 dB(A), K=3dB(A) Measured sound power level (L 91.1dB(A), K=2.11dB(A)
Page 26 Troubleshooting General Troubleshooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist if you cannot solve the problem yourself! Gloves and appropriate protective clothing must be worn when performing these...
Page 27 Getting Help After Sales Support Our dedicated UK based customer helpline is open to assist you with assembly, parts queries and technical support. We are open during office hours. Our experts are here to get you back enjoying your garden in no time. Calling our service does not affect your statutory rights.
Page 28 Version no. Oct 2024 After Sales Support 0345 605 2063...
