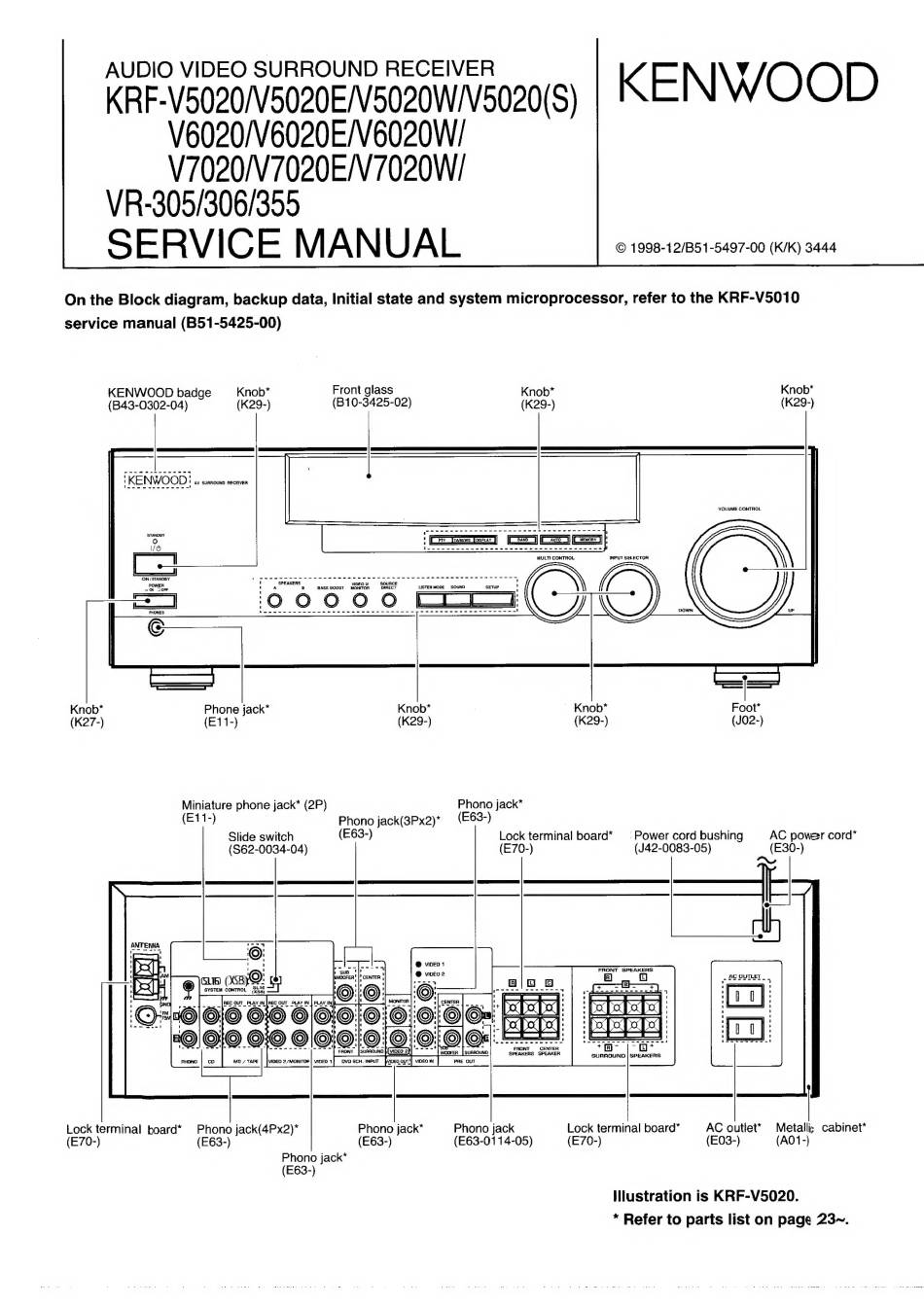

Kenwood KRF-V5020 Service Manual

AUDIO VIDEO SURROUND RECEIVER
KRF-V/5020/V5020E/V5020W/V5020(S)
V6020/V6020E/V6020W)
V'7020/V7020EV7020W/
VR-305/306/355
SERVICE MANUAL
On the Block diagram, backup data, Initial state and system microprocessor, refer to the KRF-V5010
service manual (B51-5425-00)
KENWOOD
© 1998-12/B51-5497-00 (K/K) 3444
Miniature phone jack* (2P) Phono jack*
(E11-) Phono jack(3Px2)* (E63-)
Slide switch E63-)
Lock terminal board* = Power cord bushing AC power cord*
(S62-0034-04) (E70-) (E30-)
(J42-0083-05)
Lock terminal board* Phono jack(4Px2)* Phono jack* Phono jack Lock terminal board" AC outlet* Metallic cabinet*
(E70-) (E63-) (E63-) (E63-01 14-05) (E70-) (E03-) (A01-)
Phono jack*
(E63-)
Illustration is KRF-V5020.
* Refer to parts list on page 23~.
