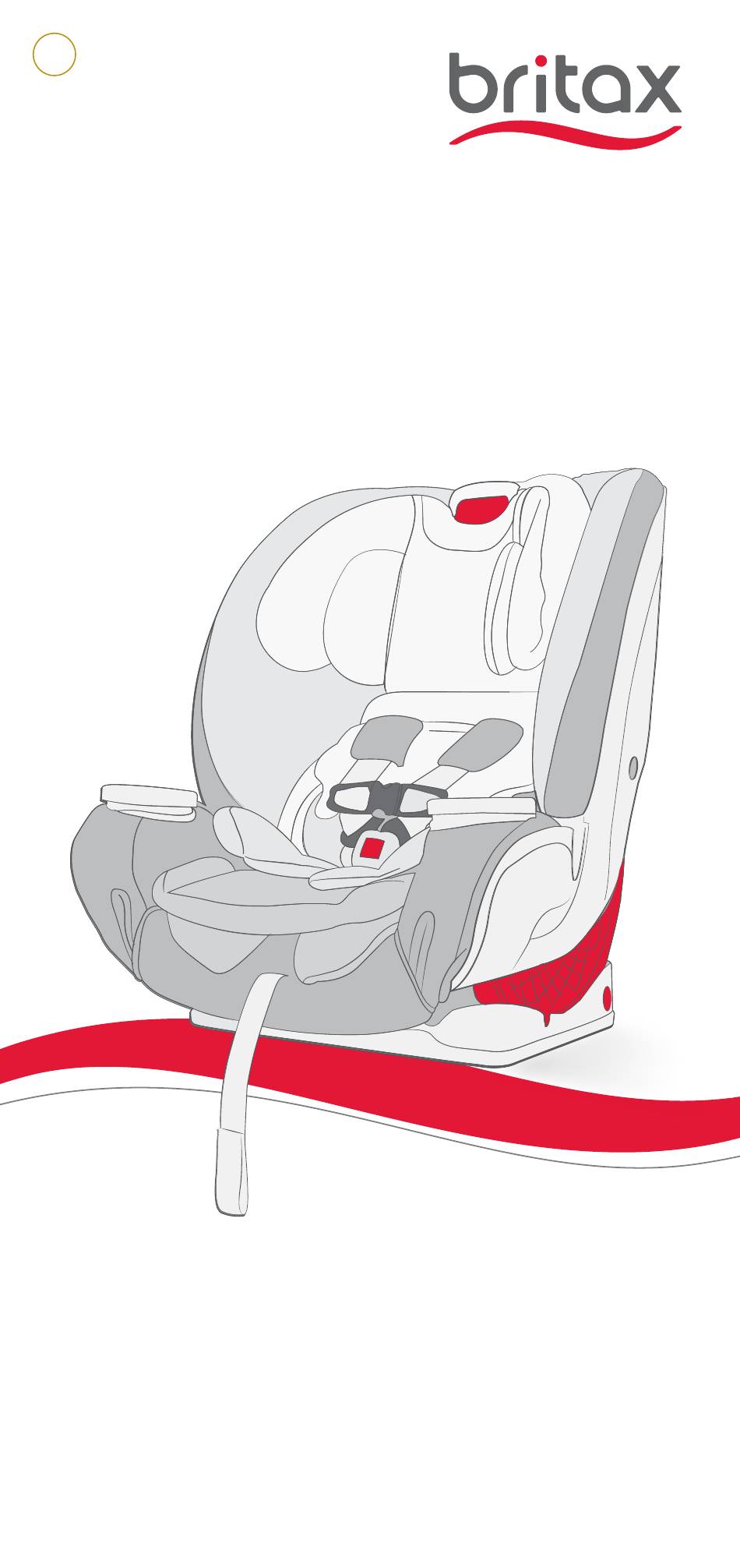

ONE4LIFE
TM
CLICKTIGHT
®
User Guide
Guía del Usuario

Advertisement

loading
Need help?

Need help?

Do you have a question about the S12115900 and is the answer not in the manual?

Questions and answers

Related Manuals for Britax S12115900

Summary of Contents for Britax S12115900

  • Page 1 ONE4LIFE CLICKTIGHT ® User Guide Guía del Usuario...
  • Page 3 Warranty ��������������������������������������������������������������50 ONE4LIFE , BRITAX , and CLICKTIGHT are trademarks owned by Britax ® ® Child Safety, Inc. All rights reserved. ©2022 Britax Child Safety, Inc. This product and its components are subject to change without notice. Printed in USA. P14757200_A:12.22...
  • Page 4 Features Overview Front 1� Harness and Headrest 14� Harness Adjuster Strap Adjuster 15� Lower Connectors 2� Headrest Insert (LATCH component) 3� Comfort Pads 16� Lower Connector Adjuster (LATCH component) 4� Harness Straps 5� Chest Clip 17� Lower Connector Adjuster Release Button 6�...
  • Page 5 Rear 21� Headrest 34� Safecell Impact Protection 22� BOOSTER Mode 35� Top Tether Hook Shoulder Belt Guide 36� FORWARD-Facing Belt Path 23� Carry Handle 24� Top Tether Strap 25� Top Tether Adjuster 26� Shell 27� Recline Indicator for Harnessed Mode 28�...
  • Page 6 Safety Information Warnings WARNING! Failure to follow all warnings and instructions on the restraint system could result in SERIOUS INJURY or DEATH. Carefully read all the instructions in this user guide and on the child restraint before using this product. Keep this user guide in the user guide storage pocket under the seat cover for future use.
  • Page 7 • Ensure the upper harness (shoulder) straps are firmly adjusted so that the child is secure. • The use of non-Britax covers, inserts, toys, accessories or tightening devices is not approved by Britax. Their use could cause this child restraint not to perform as intended in a crash.
  • Page 8 Send your name, address, e-mail address if available and the restraint’s model number and manufacturing date to Britax Child Safety, Inc. P.O. Box 91167 Allentown, PA 18109-9925, or call 1-888-427-4829 or 1-704-409-1699, or register online at us.britax.com/registration.
  • Page 9 Aircraft For aircraft installation the top tether cannot be used. For REAR-facing aircraft installation: 1. Recline this child restraint (see page 15) and place REAR-facing on the aircraft seat. 2. Slide the aircraft lap belt into the REAR-facing belt path over the cover with the CLICKTIGHT in the closed position.
  • Page 10 Child Fit Guidelines Britax strongly recommends that children ride REAR-facing to the highest weight or height specified. NOTE: Infants weighing less than 22 lb (10 kg) MUST use the child restraint REAR-facing. No child restraint can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury and death.
  • Page 11 Vehicle Compatibility Guidelines Vehicle Buckle Positions WARNING! The position of the vehicle belt buckle can adversely affect the stability of the child restraint. If the vehicle buckle lies near the incorrect position ( ) when the vehicle belt is tightened, try fitting the child restraint in another seating position in the vehicle.
  • Page 12 NOTE: This Britax child restraint may not be compatible with every inflatable lap-shoulder belt. See FAQs in the support section of the Britax website (us�britax�com/faqs) for additional instructions.
  • Page 13 Using the Lower Anchors and Tethers for Children (LATCH) Vehicle Seat Head Restraint Vehicle Seat Top Tether Anchors Vehicle Seat Belt Retractor Lap-Shoulder Vehicle Seat Belt Frontal Air Bag LATCH Seat Belt Buckles Lower Anchors The Lower Anchors and Tethers for Children or LATCH, is a system available on this child restraint that offers an alternative to vehicle seat belt installation methods.
  • Page 14 3 in 3 in Acceptable Acceptable Not Acceptable REAR-Facing FORWARD-Facing Overhang Harness Mode Harness Mode BOOSTER Mode Features Harness and Headrest Adjuster The headrest and the harness heights adjust together. Adjusting Headrest and Harness Positions 1. Squeeze the harness and headrest adjuster at the top of the headrest and raise or lower it into desired position.
  • Page 15 2. Open the CLICKTIGHT. Squeeze the CLICKTIGHT release buttons underneath the front cover flap and lift to open. 3. Lift the front of the seat cover off the CLICKTIGHT. 4. Locate the metal bracket on the underside of the CLICKTIGHT. 5.
  • Page 16 Recline Button and Recline Indicator for Harnessed Mode NOTES: • The seat has nine (9) recline positions. • Set the recline position before installing. • The vehicle MUST be on level ground. • A pool noodle or rolled towel should ONLY be used if the child does NOT have head and neck control and you are unable to achieve proper installation REAR-facing with the base flat and parallel to the vehicle seat with...
  • Page 17 REAR-FACING HARNESS INSTALLATION For infants with NO head and neck control: Recline indicator arrow Recline indicator arrow tip can NOT be in the tip must be in solid stripe blue-green or blue section. black sections. For children with head and neck control: Recline indicator arrow Recline indicator arrow tip can NOT be in the...
  • Page 18 BOOSTER MODE INSTALLATION Reclining the Seat in BOOSTER Mode Push the recline button on either side of the base and rotate the child restraint to position “B”. Recline indicator does not need to be used in BOOSTER mode. IMPORTANT: Recline MUST be in position “B”...
  • Page 19 Anti-Rebound Bar (ARB) (For models with anti-rebound bar) Installing the Anti-Rebound Bar WARNING! The anti-rebound bar is not intended for use as a carry handle. Do not use the anti-rebound bar to carry this child seat. IMPORTANT: The anti-rebound bar MUST be removed for FORWARD-facing installation.
  • Page 20 Installation REAR-Facing Installation Harness Mode Britax strongly recommends that children should ride REAR- facing until they exceed the weight or height limits specified. Use REAR-facing only: • with harness straps in closest position below the child’s shoulders, and • with children weighing 5 - 50 lb (2.3 - 22.7 kg), and...
  • Page 21 4� Open the CLICKTIGHT. Squeeze the CLICKTIGHT release buttons underneath the front cover flap and lift to open. 5� Route the vehicle lap- shoulder belt through the REAR-facing belt path marked by blue labels. 6� Ensure the belt is not twisted, then buckle the vehicle seat belt.
  • Page 22 9 Both red CLICKTIGHT release buttons are visible after installation. 9 All connections are secure and vehicle belt is not twisted. 9 Car seat base MUST be flat on vehicle seat and MUST be parallel to vehicle seat. 9 Recline indicator is still within the correct section for REAR-facing, after child is secured.
  • Page 23 6� Ensure that no more than 3 in (7.5 cm) of the base hangs over the front edge of the vehicle seat. 3 in 3 in 7� Slide the lower connector strap into the REAR-facing belt path marked by blue labels. ADJUSTMENT SLOT 8�...
  • Page 24 9 Both red CLICKTIGHT release buttons are visible after installation. 9 All connections are secure and strap is not twisted. 9 Car seat base MUST be flat on vehicle seat and MUST be parallel to vehicle seat. 9 Recline indicator is still within the correct section for REAR-facing, after child is secured.
  • Page 25 5� Route the lap vehicle seat belt through the REAR-facing belt path marked by blue labels. 6� Ensure the belt is not twisted then buckle the vehicle seat belt. 7� Lock and remove slack from vehicle seat belt. NOTE: Make sure that the vehicle seat belt is locked as directed by your vehicle owner’s manual.
  • Page 26 FORWARD-Facing Installation Harness Mode Britax strongly recommends: • children should ride REAR-facing until they exceed the weight or height limits specified. • the top tether be used at ALL times when installing the child restraint FORWARD-facing.
  • Page 27 2� Unhook the top tether hook from the back of the child restraint and place it up and over the seatback. 3� Recline child restraint to the appropriate position. Refer to page 15 to determine appropriate recline position. 4� Place the child restraint FORWARD-facing on the vehicle seat so that the car seat base is flat on the...
  • Page 28 11� Ensure both CLICKTIGHT release buttons are visible. NOTE: If it is difficult to close, you may have locked your vehicle seat belt or removed too much slack. 12� Connect the top tether hook to the vehicle’s top tether anchor (check the vehicle owner’s manual for location).
  • Page 29 Installation with Lower Anchor Connectors and Top Tether (LATCH) Do not install by this method for a child weighing more than 35 pounds (15.9 kilograms). 1� Extend the top tether strap by lifting on the top tether adjuster. 2� Unhook the top tether hook from the back of the child restraint and place it up and over the seatback.
  • Page 30 9� Route the lower connector strap through the FORWARD-facing belt path marked by green labels. 10� Firmly press lower connectors onto their adjacent lower anchors. 11� Ensure the connector strap CLICK is not twisted. Pull the end of the lower connector strap ADJUSTMENT SLOT to remove slack.
  • Page 31 9 Both red CLICKTIGHT release buttons are visible after installation. 9 All connections are secure and strap is not twisted. 9 Car seat base MUST be flat on vehicle seat and MUST be parallel to vehicle seat. 9 Recline indicator is still within the correct section for FORWARD-facing, after securing the child.
  • Page 32 7� Route the lap vehicle belt through the FORWARD- facing belt path marked by green labels. 8� Ensure the belt is not twisted and fasten the seat belt. 9� Push down into the middle of the child restraint with moderate force (approximately 20.5 kg/45 lb), compressing the vehicle seat while...
  • Page 33 BOOSTER Mode Installation IMPORTANT: Britax strongly recommends that children should remain in a child seat with a 5-point harness until reaching the maximum weight or height allowed. Use in...
  • Page 34 1� Refer to page 37 to convert from harness to BOOSTER mode. 2� Adjust the child restraint to position “B” by pushing the red recline button on either side of the base. 3� Extend the top tether strap by lifting on the top tether adjuster.
  • Page 35 8� Place child restraint on the vehicle seat so that the car seat base is flat on the vehicle seat and is parallel to vehicle seat. NOTE: If your vehicle seat back is adjustable, ensure it is in the upright position before placing the child seat on the vehicle seat.
  • Page 36 ADJUSTMENT SLOT 9 Child restraint is in recline position “B”. 9 Child restraint is in a vehicle seat that has a lap-shoulder belt. 9 All connections are secure and strap is not twisted. 9 Car seat base MUST be flat on vehicle seat and MUST be parallel to vehicle seat.
  • Page 37 3� Open the chest clip by squeezing the tabs (A) and pull apart (B). 4� Release the buckle and place the harness straps to the side. 5� Place child in the child restraint. Ensure the child is positioned upright in the child restraint and not slouching.
  • Page 38 Before traveling, verify that the: 9 Recline indicator is still in acceptable range. 9 Harness straps are not twisted. 9 Harness is snug. 9 Buckle is fastened. 9 Chest clip is at the child’s armpit level. 9 Bulky coats, jackets, and/or bulky sports equipment are removed. Booster Mode Warning! Use only IMPORTANT:...
  • Page 39 7� Ensure the shoulder part lays across the center of the child’s chest, above the child’s shoulder and does not contact the child’s neck (A). The lap part of the vehicle belt is routed low across the child’s upper thighs (B). Before traveling, verify that the: 9 Vehicle belt is not twisted.
  • Page 40 3� (A) Open the chest clip. (B) Open the fasteners on the headrest cover and remove the harness straps. 4� Flip up the headrest cover. 5� Release the buckle. 6� Position the harness straps behind the seat pan cover. NOTE: Located under the fasteners near the bottom of the harness straps.
  • Page 41 10� Locate the space in- between the back of the Back of the shell shell and the back-top part of the seat pan. Seat Pan 11� Tuck in the buckle tongues and comfort pads, pushing them with force down into the gap until the chest clip and excess webbing are no longer visible.
  • Page 42 16� Roll the remaining harness adjuster strap. 17� Tuck the remaining harness adjuster strap into the front of the cover. 18� Close the CLICKTIGHT. 19� Flip down the headrest cover back and reattach fasteners. Booster Mode to Harness Mode 1� Flip the headrest cover up. 2�...
  • Page 43 4� Remove buckle tongues from comfort pads. Reattach comfort pads above chest clip. 5� Open the chest clip. 6� Flip the seat pan cover up. Pull the harness strap from underneath the seat pan cover and route the harness straps through the seat pan cover slots and reattach fasteners.
  • Page 44 Removing and Installing Seat Cover NOTE: If removing cover to wash, see Cleaning section on page 49. Removing the Cover Removing the Headrest Cover 1� Loosen the harness. Press the harness release button (A) and pull both harness straps forward (B). 2�...
  • Page 45 Removing the CLICKTIGHT Cover 1� Open the CLICKTIGHT. Unhook the elastic bands connecting the cover to the CLICKTIGHT. 2� Pull the cover up from around the front of the CLICKTIGHT and close the CLICKTIGHT. 3. If applicable, remove infant insert pillow from child restraint. 4.
  • Page 46 3� For select covers only: Unhook the hook and loop fasteners from around the tether straps. 4� Unhook the elastic from the backrest. 5� Pull cover away from the child restraint. Removing the Side Protection Bottom Cover 1� Open the CLICKTIGHT� Unhook elastic from the front of the seat.
  • Page 47 3. Remove the anti-rebound bar. Push the inner red button. Pull the anti- rebound bar away on one PUSH side. Repeat on the other side. 4. Unhook the two small elastic loops from the plastic tabs. 5. Pull the cover away. Installing the Cover Installing the Side Protection Bottom Cover 1�...
  • Page 48 Installing the Side Protection Top Cover 1� Route the elastic up and around the carry handle. 2� For select covers only: Fasten the hook and loop fasteners around the tether straps. 3� Tuck cover into the remainder of the child restraint.
  • Page 49 6� Route the bottom of the harness through the slots and reattach hook and loop fasteners. Installing the Headrest Cover 1� Raise the headrest to the highest position. Tuck the headrest cover under and around the headrest foam. 2� Route the elastic strap around headrest adjuster.
  • Page 50 Installing the Anti-Rebound Bar Cover (For models with anti-rebound bar) 1. Slide the cover on the black portion of the anti-rebound bar. 2. Attach the small elastic loops to the plastic tabs. 3. Install the anti-rebound bar. Insert the anti-rebound bar into the two openings at the front of the seat.
  • Page 51 Refer to product care label DO NOT for wash instructions • Bleach • Iron If care label indicates machine washable, always refer to us.britax.com/ Cover faqs for important care information. Before washing, ensure all the hook and loop fasteners are secured.
  • Page 52 Proof of purchase is required. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components for this product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions.
