SAJ R5-0.7K-S1-15 Quick Installation Manual

Inverter Quick Installation Guide
This installation guide is applicable to the following grid-tied solar inverters:
R5-(0.7K, 1K, 1.5K, 2K, 2.5K, 3K)-S1-15, R5-(3K, 3.6K, 4K, 5K, 6K, 7K, 8K)-S2-15

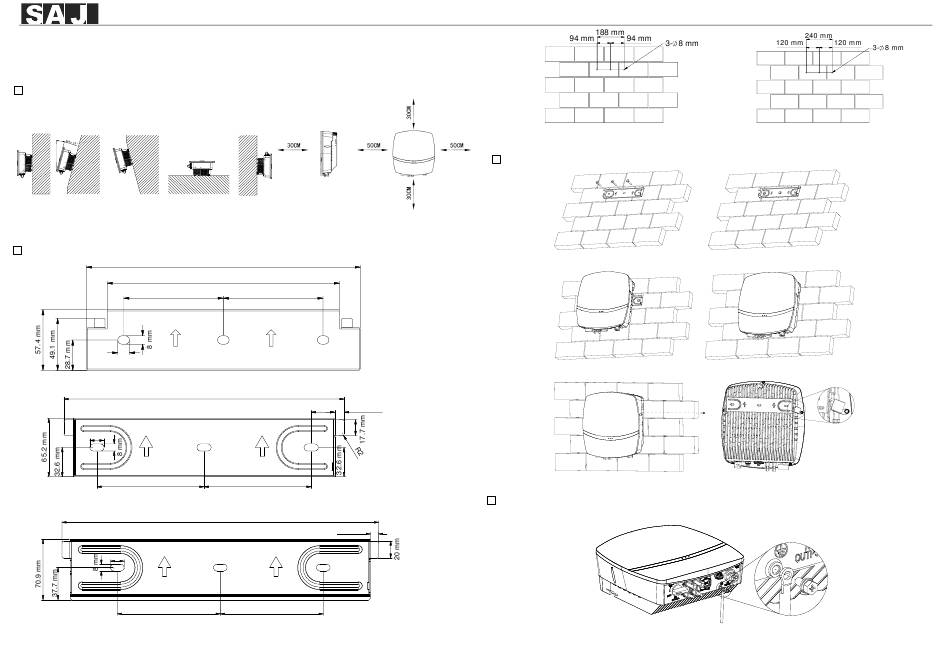

1. Determine the installation method and position.
√ √ ×
×
Fig.1.1 Installation method
2. Mark the drilling holes on the wall with the rear panel and drill three holes on the wall.
94 mm
11 mm
Fig.2.1 Rear panel dimensions of R5-(0.7K-3K)-S1-15
314.1 mm
16 mm
120 mm
Fig.2.2 Rear panel dimensions of R5-(3K-6K)-S2-15
16 mm
120 mm
Fig.2.3 Rear panel dimensions of R5-(7K-8K)-S2-15
V0.2
1
×
Fig.1.2 Installation space requirement
258.4 mm
219 mm
94 mm
26.25 mm
10.8 mm
120 mm
369 mm
9.5 mm
120 mm
Fig.2.4 Drilling holes for R5-(0.7K-3K)-S1-15
3. Secure the rear panel to the wall. Mount, secure, and lock the inverter.
Fig.3.1 Securing the rear panel
Fig.3.2 Mounting the inverter to the rear panel
Fig. 3.3 Securing the inverter with a screw
4. Connect the grounding cable.
The recommended conductor cross-sectional area of the grounding cable is 6-16mm².
Fig.4.1 Connecting the grounding cable
Fig.2.5 Drilling holes for R5-(3K-8K)-S2-15
Fig. 3.4 Locking the inverter (optional)
