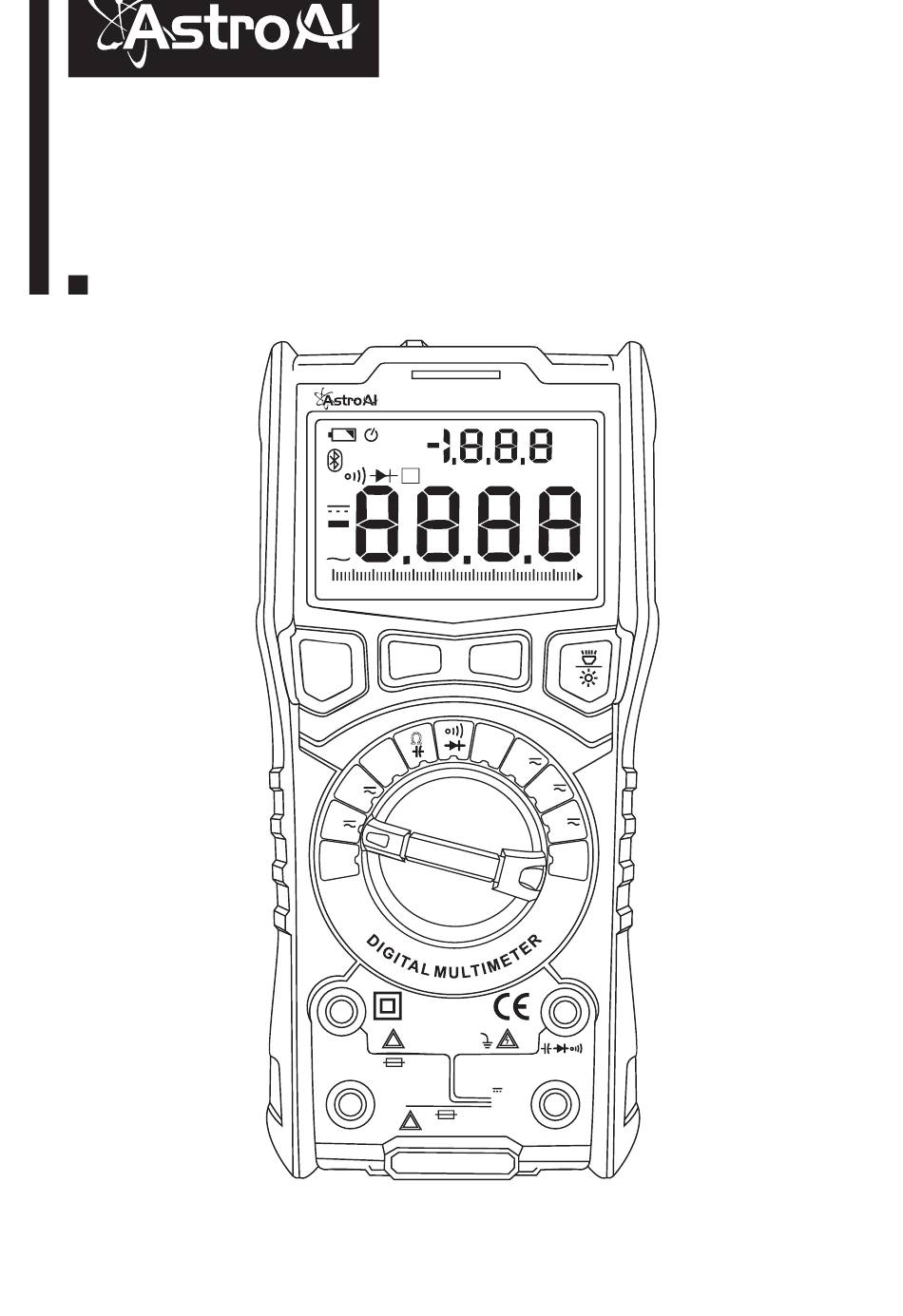

True RMS 6000 Count
Digital Multimeter
Live
MAX MIN
MkΩHz％nμmAVF°C°F
H
DC
AC
0
10
20
30
HOLD
MAX/MIN
FUNC
Ω
℃/℉
Hz%
Hz
mV
Hz
V
OFF
6000 Counts
TRUE RMS
III
1000V
CAT
！
10A
IV
600V
CAT
MAX
MAX
10A/250V
750V〜
1000V
μA
mA
MAX
！
600mA/250V
AstroAI
V1.0
M6KOR
°F°C
kHz%
40
50
60
Hz
μA
Hz
mA
Hz
A
NCV
Live
V
Ω
Hz％Live℃/℉
COM
Advertisement
Related Manuals for AstroAI B08FDVQDM5
Summary of Contents for AstroAI B08FDVQDM5
- Page 1 True RMS 6000 Count Digital Multimeter M6KOR °F°C Live kHz% MAX MIN MkΩHz％nμmAVF°C°F HOLD MAX/MIN FUNC Ω ℃/℉ μA Live 6000 Counts TRUE RMS 1000V ！ 600V Ω Hz％Live℃/℉ 10A/250V 750V〜 1000V μA ！ 600mA/250V AstroAI V1.0...
- Page 2 Voltage, AC/DC Current, Resistance, Audible Continuity, Diode, Frequency, Duty Ratio, Capacitance, NCV Detection, Live Wire Detection and Temperature Testing. Thank you again for choosing AstroAI, if you have any questions or concerns regarding your product, please contact us at support@astroai.com.
- Page 3 ● When servicing the Meter, use only the same model number or identical electrical specifications replacement parts. ● When using the test leads, keep your fingers behind the finger guards. ● Do not apply more than the rated voltage, as marked on the Meter, between the terminals or between any terminal and grounding.
- Page 4 ELECTRICAL SYMBOLS Warning Dangerous Voltage ！ Earth Ground (Alternating Current) DC (Direct Current) Fuse AC and DC Double Insulation Compliance with Low Battery Symbol EU Standards Category III test equipment is suitable for testing and measurements of circuits connected to the CATⅢ...
- Page 5 Test Leads K-Type Thermocouple GETTING TO KNOW YOUR DEVICE ● BUTTONS FUNCTIONS Button Function Use the rotary switch to select a function. Use the ● FUNC Button to further select the function if there are multiple functions in one rotary setting.For example: Switching between AC and DC voltage tests.
- Page 6 ● Backlight: Press this button to turn on/off the screen’s backlight. ● Flashlight: Long Press this button to turn on/off the flashlight. ● SETTING FUNCTION Setting Function NOTE: Use the FUNC Button to further select the function if there are multiple functions in one rotary setting. DC Voltage Test : 0~1000v AC Voltage Test : 0~750v AC/DC Voltage Test: 0~600mv...
- Page 7 AC/DC Current Test : 0~10A AC/DC Current Test : 0~600mA μA AC/DC Current Test : 0~6000uA ℉ Fahrenheit Temperature ℃ Celsius Temperature NCV Detection Live Live Wire Detection ● TERMINALS Plug the red test lead into this terminal for currents between 600mA and 10A. Plug the red test lead into this terminal for currents less than 600mA.
- Page 8 ● OTHER FUNCTIONS Auto Shut Off: ● After 15 of standby, the Meter will automatically turn off. To turn it on again, just rotate the range switch or press a button. Input Indication: ● When turning on or function switching, the corresponding input indicator light will flash to remind the user which terminal is inserted.
- Page 9 ● Turn the rotary dial to the setting. When the voltage is below 600mV, turn the dial to the setting. Press the “FUNC” button to switch between AC/DC voltage. The screen will indicate the setting that the DMM is currently in.
- Page 10 ● When the screen displays “DC” the Meter Ａ is in the DC function, when “AC” is displayed, the Meter is in the AC function. ● Under the settings, connect the red μA test lead to the input terminal and the black test lead to COM terminal.
- Page 11 ● The reading will be displayed on the LCD screen. Ⅳ. MEASURING RESISTANCE Ω ● Turn the rotary dial to the setting. ● Insert the red test lead into the “Input” jack and the black test lead into the “COM” jack. ●...
- Page 12 Ⅴ. MEASURING CAPACITANCE ● Turn the rotary dial to the Ω setting. Press the “FUNC” button to switch to Capacity Test. ● Insert the red test lead into the “Input” jack and the black test lead into the “COM” jack. ●...
- Page 13 Ⅶ. DIODE TEST ● Set the function switch to “ ” range, Press the “FUNC” button to switch to diode Test. ● Connect the black test lead to the “COM” jack and the red test lead to the “INPUT” jack. ●...
- Page 14 ● Insert the negative (-) plug of the K-type thermocouple to the COM jack and the positive (+) plug to the INPUT jack. ● Carefully touch the end of the thermocouple to the object being measured. ● Celsius and Fahrenheit are both displayed. NOTE: Results take time to stabilize as thermal equilibrium is reached with the measuring environment.
- Page 15 Ⅹ. LIVE WIRE DETECTION ● Turn the rotary dial to the setting. Live Press the “FUNC” button to switch to Live Wire Detection and the screen will show “Live”. ● Insert the red test lead into the “Input” jack. Do not insert the black test lead into any terminal.
- Page 16 Maximum ● DC1000V/AC750V Voltage ● mA : F600mA/250V fuse, Fuse 6mmX32mm Protection ● 10A: F10A/250V fuse, 6mmX32mm Sampling ● 3x per second Speed ● 6000 counts display. Automatically displays Display unit according to rotary dial. Overload ● “OL” Displayed Indication ●...
- Page 17 Range error ● The variable value of shunt resistance is large needs to be adjusted or replaced. ● Check whether the fuse is intact. No reading ● Check the test leads for damage. DC VOLTAGE Range Resolution Accuracy 600mV 0.1mV 0.001V ±(0.5% rdg +3 dgts) 0.01V...
- Page 18 ● Input Impedance: 10MΩ ● Overload Protection: 1000V DC/750V AC ● Frequency Range: 40Hz ~ 1kHz ● Response: True RMS DC CURRENT Range Resolution Accuracy 600μA 0.1μA 6000μA 1μA ±(1.2% rdg +3 dgts) 60mA 0.01mA 600mA 0.1mA 0.01A ● Overload Protection: “A/mA”: F600mA/250V fuse “10A”: F10A/250V fuse ●...
- Page 19 ● Overload Protection: “A/mA”: F600mA/250V fuse “10A”: F10A/250V fuse ● Max.Input Current: “A/mA” jack: 600mA “10A” jack: 10A ● Frequency Range: 40Hz ~ 1KHZ ● Response: True RMS (For measurements>5A: duration <10 seconds, interval >15 minutes) RESISTANCE Range Resolution Accuracy 600Ω...
- Page 20 ±5.0% rdg or±6℉ -4℉~ 32℉ ±1.0% rdg or±4℉ ℉ 1℉ 32℉~ 752℉ ±2.0% rdg 752℉~ 1832℉ ● The accuracy does not include the error of the thermocouple probe. CAPACITANCE Range Resolution Accuracy 10nF 0.001nF 100nF 0.01nF 1000nF 0.1nF ±(4.0% rdg +5 dgts) 10μF 0.001μF 100μF...
- Page 21 10kHz 0.001kHz ±(1.0% rdg +3 dgts) 100kHz 0.01kHz 1000kHz 0.1kHz 10MHz 0.001MHz ±(3.0% rdg +3 dgts) 1~99% 0.1% ● Measuring range: 0~ 10MHz ● Voltage range: 0.2~10V AC (the higher the measured frequency, the higher the voltage should be) ● Overload Protection ： 250V NOTE: , Frequency measurement: ●...
- Page 22 If the value of the measured resistance or circuit is less than 30Ω, the buzzer will emit a beep and the green indicator light will Test voltage: illuminate. When the value is between 30Ω~60Ω, the red indicator Overload light will illuminate, and the screen Protection: will display the measured value.If 250V...
- Page 23 ● 1 x K-Type Thermocouple ● 1 x AstroAI 6000 Counts Multimeter 3 YEAR WARRANTY LIMITED WARRANTY FROM ASTROAI Each AstroAI Digital Multimeter will be free from defects in material and workmanship. This warranty does not cover fuses, disposable batteries and damage from neglect,...
- Page 24 Web: .astroai.com E-mail:support@astroai.com...
