ASTROAI USER MANUAL

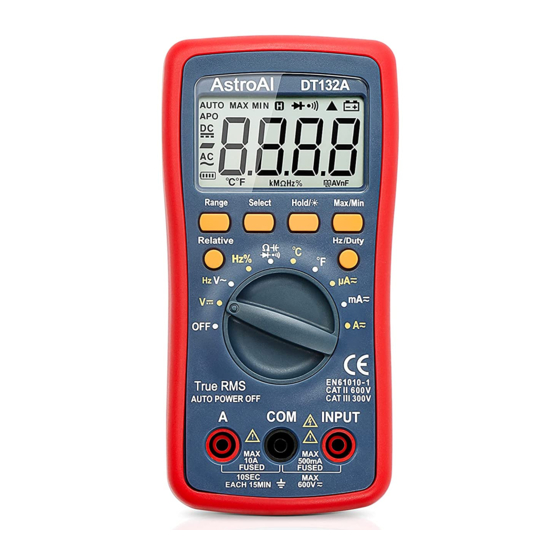

DT132A 4000 Count Auto-Ranging Multimeter
Thank you for purchasing the AstroAI DT132A 4000 Count Auto-Ranging Multimeter. It is a 3 ¾
digit, 3999 counts, auto-ranging digital multimeter. This multimeter is designed to be safely and
accurately used by anyone to measure AC/DC Voltage, AC/DC Current, Resistance Continuity,
Temperature, Frequency, and test Diodes. This manual provides all safety information,
operation instructions, specifications, and maintenance for the meter.
Helpful functions include polarity indication, data hold, relative data measurements, and
overload indication. This digital multimeter has been designed according to EN61010-1
oncoming electronic measuring instruments with an overload category (CAT III 600V) and
pollution degree 2.
Thank you again for choosing AstroAI, if you have any questions or concerns regarding your
product, please contact us at support@astroai.com.
NOTE: Fully read and understand this manual before using this Digital Multimeter.
WARNING: To avoid possible electric shock or personal injury, and to avoid possible damage to
the Meter or to the equipment being tested, adhere to the following rules:
● Before using the Meter, inspect the exterior casing. Do not use the Meter if it is damaged
or if all or part of the exterior casing is removed. Look for cracks or missing plastic. Pay
special attention to the insulation around the connectors.
● Inspect the test leads for damaged insulation or exposed metal. Check the test leads for
continuity.
● Do not apply more than the rated voltage, as marked on the Meter, between the
terminals or between any terminal and grounding.
● The manual rotary switch should be placed in the correct position before measurement
and should NOT be moved during measurement to prevent damage to the Meter.
● When the Meter is working at an effective voltage over 60V in DC or 30V rms in AC,
special care should be taken because there is a danger of electric shock.
● Use the proper terminals, function, and range for your measurements.
● Do not use or store the Meter in a high-temperature environment, do not expose to high
levels of humidity, or near strong magnetic fields. The performance of the Meter may
deteriorate after dampening.
● When using the test leads, keep your fingers behind the finger guards.
● Disconnect circuit power and discharge all high-voltage capacitors before testing
resistance, continuity or diodes.
● Replace the battery as soon as the battery indicator appears. With a low battery, the
Meter might produce false readings that can lead to electric shock and personal injury.
● Remove the connection between the testing leads and the circuit being tested and turn
the Meter power off before opening the Meter case.
