Operating Instructions and Parts Manual
Operating Instructions and Parts Manual
Plunger Pumps
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Description
This plunger pump will pump up to 2.5 GPM
at 2500 PSI. It spins at 3400 RPM in a direct
drive system coupled with a gasoline engine.
The matching fl ange provides convenient
connection to most 3/4" shaft 1.1 - 5.5 HP
engines. The hollow shafted pump includes
a built-in pressure control valve, and
chemical injection system.
RMV 3400 rpm D Version
Model
RMV2G20D
RMV2G23B
RMV2G25D
RMV2.5G20D
RMV2.5G23B
RMV2.5G25D
RMV2.5G30D-EZ
Special Note: Use only AR64545 for the XJ/SJ/BK/RMV Series pumps only: Do NOT change
oil. Use oil only to add if low. This oil is a specially formulated synthetic with special
additives for the demands of the XJ, SJ, BK and RMV pump series. No other oil is factory
approved for these pumps, and could result in pump failure.
Form RMV-OM 807
Max GPM Max PSI
2.0 2000
2.0 2300
2.0 2500
2.5 2000
2.5 2300
2.5 2500
2.5 3000
RMV Series Pumps
RMV Series Pumps

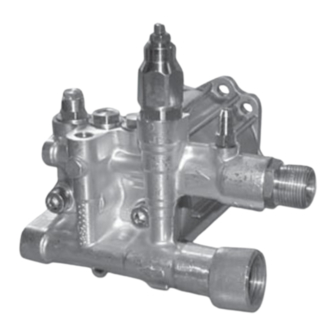

Figure 1 - RMV
