Summary of Contents for dibea UV-10

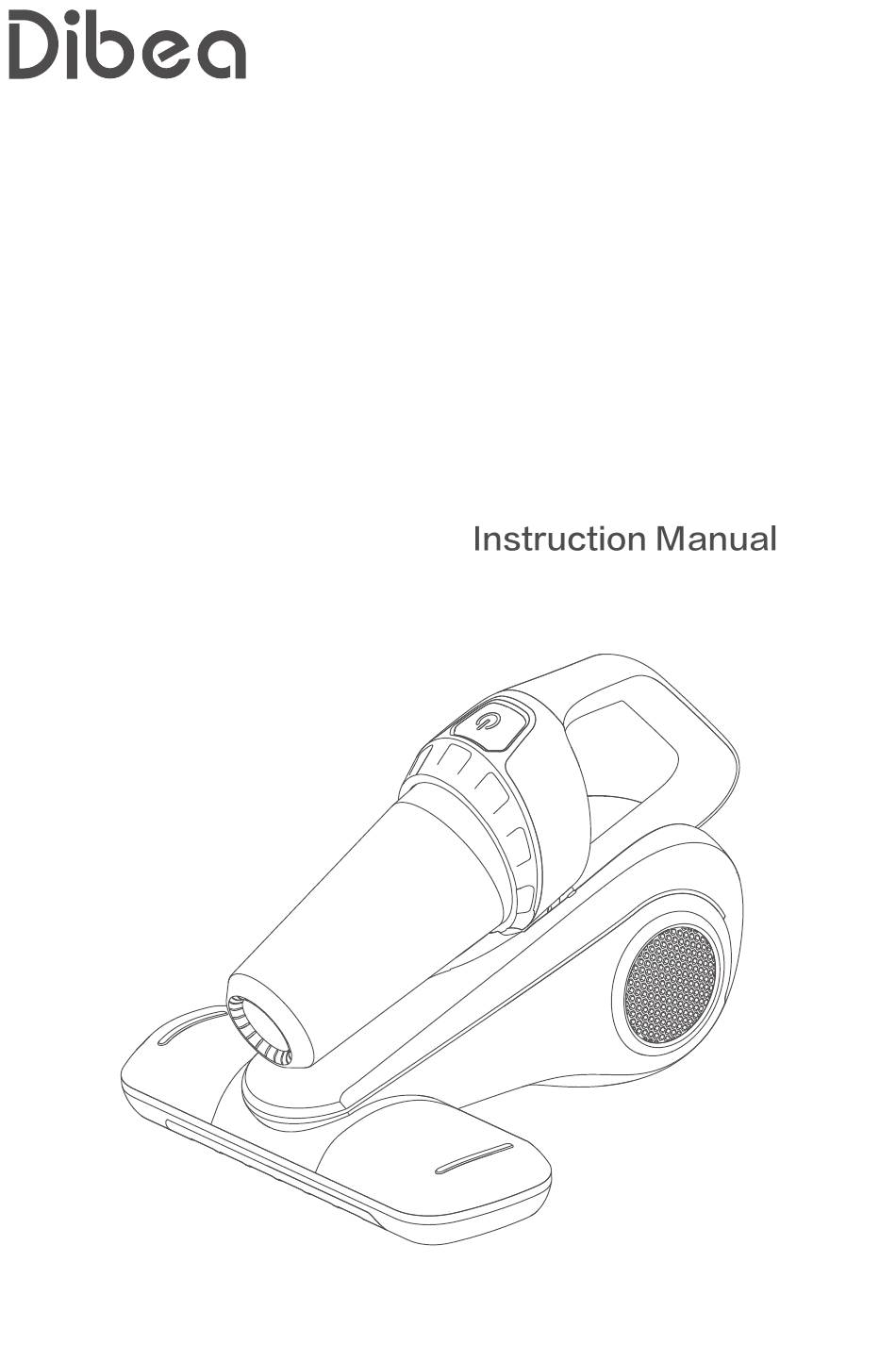

- Page 1 UV-10 Vacuum Cleaner Please read this user manual carefully before using. Keep this manual for further guidance in case.
- Page 2 Table of Contents Table of Contents Table of Contents Table of Contents Special Declaration Safety Instructions Product Features Product Components Preparation before Using Product Operation Product Maintanance Product Specification Troubleshooting...
- Page 3 Before using this product, please read the safety instruction and follow all those regular safety instruction and follow all those regular safety precautions. Dibea will not responsible for any damage caused by self operation or using the accessories that are not provided from factory. Thanks for your understanding.
- Page 4 Do not charge the unit outdoors. Unplug when not in use for extended periods, during transportation and before maintenance or servicing. This product use 220V AC power, use only DIBEA or DIBEA recommended accessories and replacement parts. Using Range Do not use to pick up flammable or combustible materials (lighter fluid, gasoline , kerosene, etc.) or use in areas where they may be present.
- Page 5 Production Feature Production Feature Production Feature Production Feature Production Feature This product is a hand-held vacuum cleaner with ultraviolet disinfection function. It uses advanced intelligent technology to automatically control the ON/OFF of the UV lamp. It is ingenious in design, strong in suction, convenient in operation, safe and reliable.
- Page 6 Product Components Product Components Product Components Product Components ON/OFF Handle Dust Collector Air Outlet UV Light Indicator Suction Port Handle Dust Collector Lock Handle Lock ABS Machine Body Power Cord...
- Page 7 Product Components Infrared Sensor Suction Port UV Light Label Wheel Prepair before Using ation To avoid danger of suffocation, keep away from babies and children. Do not plug in your vacuum until you are familiar with all instructions and operating procedures. To reduce the risk of electric shock, turn power switch off and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.
- Page 8 Operation ON/OFF Button 1. Connect the power cord to the socket, press ON/OFF the ON/OFF botton, and the vacuum cleaner will start to work. 2. Make sure that the distance between the bottom of the machine and the cleaning target is less than 3cm, otherwise the ultraviolet lamp of the vacuum cleaner will stop working.
- Page 9 Operation Button nlet HEPA Filter Cyclonic Filter Dust Collector Take out the filters: Move along the vertical direction of the dust collector. Note: Put in the cyclonic filter first, then the cotton filter & HEPA filter. Always keep the air outlet downward to ensure that the dust in the dust colletor not scattered.
- Page 10 Cleaning and Maintenance Cleaning and Maintenance Cleaning and Maintenance STORAGE Unplug when not in use for extended periods and before maintenance or servicing. Put the product in a dry indoor place, do not put it outdoors or in any places that are not dry.
- Page 11 Cleaning and Maintenance Cleaning host outlet Cleaning host outlet Cleaning host outlet inlet outlet Check the air outlet and air inlet and remove the obstacles before install the handle back to the machine body. Note: Do not remove the filter on the air outlet. You can never put it back! Product Specifications Item...
- Page 12 Troubleshooting Troubleshooting Troubleshooting Possible Causes Problem Solution The roller brush is entangled by Take out the roller brush and The vacuum hair. clean it. won't work Power connection error Check the power cord, press ON. The dust tank is blocked by dust Clean the dust collector.
- Page 13 Proof (both the original and any subsequent) delivery/purchase should be provided before any work can be carried out on your DIBEA appliance. Without this proof, any work carried out will be chargeable, keep your receipt or delivery note. Any parts which are replaced by DIBEA will become the property of DIBEA .
- Page 14 One-stop household cleaning solution provider. Suzhou Dibea Electrical Technology Co.,Ltd. Address: No.19 Fuli Road, Guangfu Town, Wuzhong Economic Development Zone, Suzhou, Jiangsu, China Official website: www.dibea.com Email address: us-support@dibea.com EC REP Wellkang Ltd(www.CE-marking.eu)
