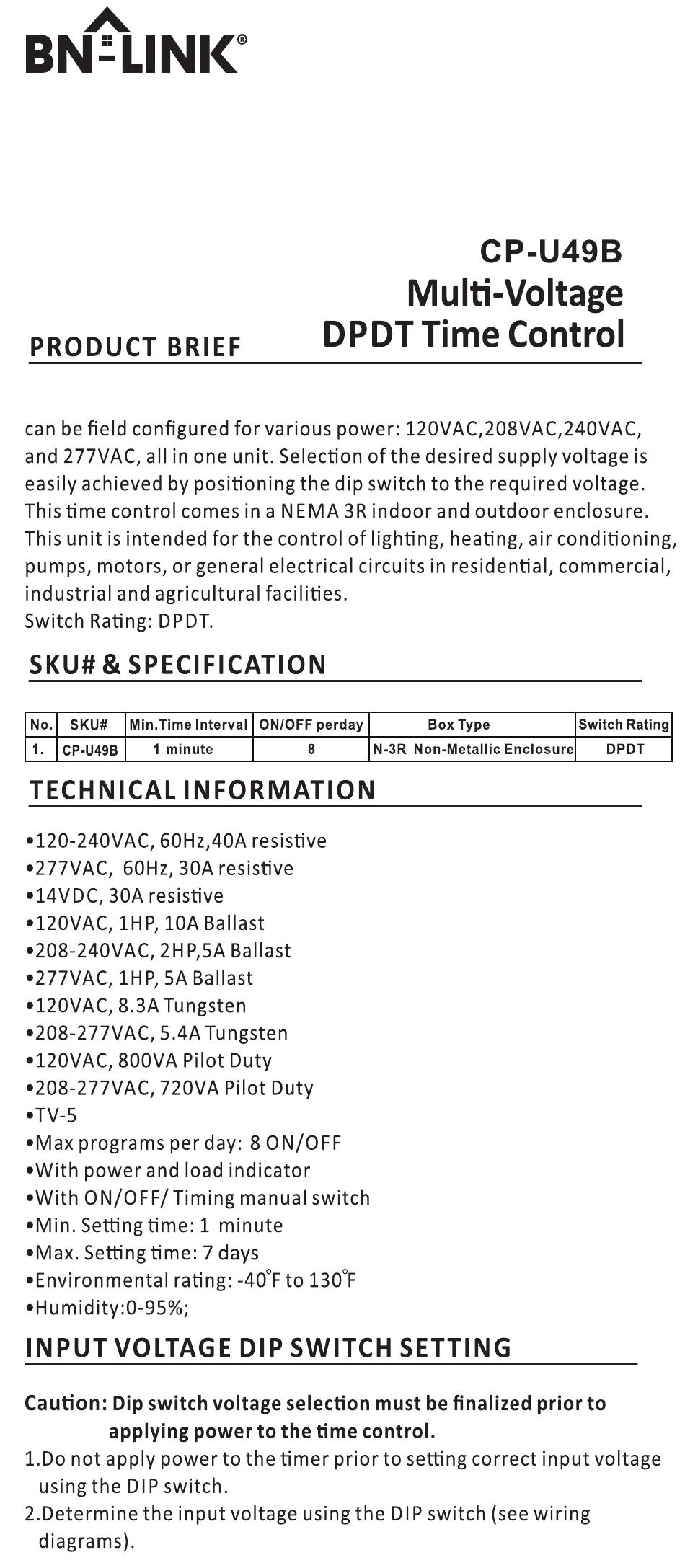

- Page 1 7-Day Digital Appliance Timer NEMA 3R Non-Metallic Enclosure Manual Override 120-227V 40A DPDT This time control is a universal, digital time control which...
- Page 2 1.Reset the timer Press the "Reset" button with the tip of a small non-metallic insulated tool, such as a pencil or toothpick. LCD display will turn on. 2.Set up current day and time Example: if it is 7:30 AM Friday, please follow below steps to set the current day and time.
- Page 3 3.Set programs 3.1 Press the "PROG" button to enter the program setting. Example: if you want to turn on a device every day at 8:05 am and turn it off at 9:00 pm, please follow below steps. 3.2 Press the "WEEK" button to enter the program setting, you will see all the days of the week on the top and "1 ON"...
- Page 4 7.Troubleshooting Timer does not turn on or off. a. Make sure AM and PM are correct on the current time and in the program settings. b. Timer program should be on AUTO setting. c. Make certain that both an ON and OFF times have been specified. d.
