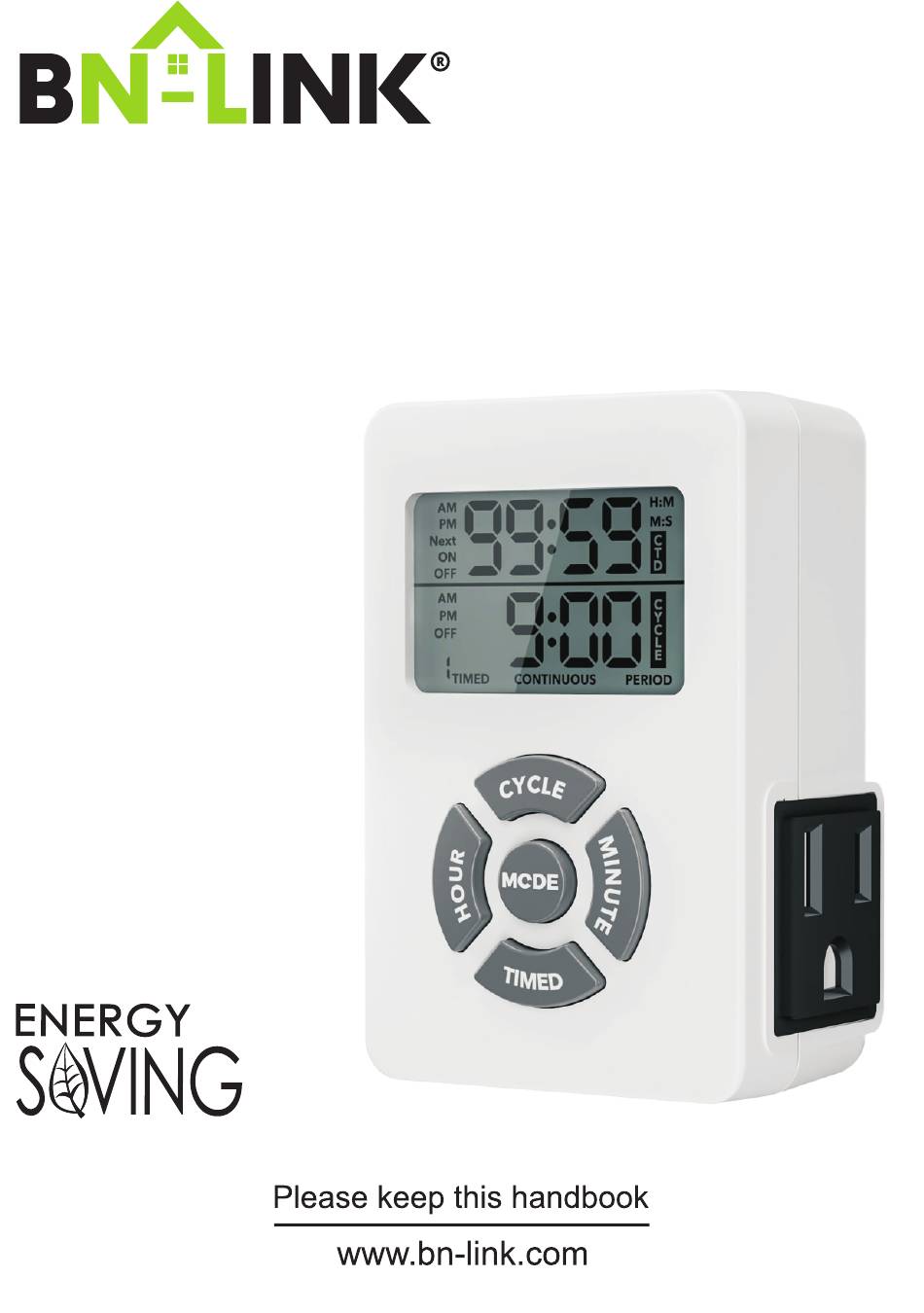

- Page 1 PRODUCT# CP-UIH06-1 Digital Repeat Cycle Timer...
-
Page 2: Product Ratings
PRODUCT RATINGS WARNINGS... -
Page 3: Initial Setup
A. Initial Set Up Part 1- Reset the Timer Press and hold the R button on the side of the timer for 3 seconds. Note: At this stage, no work mode will be displayed or executed. Part 2- Set the Current Time Press and hold the MODE button, then press the HOUR button simultaneously to set the hour . - Page 4 B. Product Functions and Set Up Instructions Function 1-Setting Daily ON-OFF Timing 1.1 Enter the Setting Mode • Press and hold the TIMED button to enter the mode. The top row shows ON The bottom row shows OFF 1.2 Set the ON Time •...
- Page 5 1.6 Clear or Restore Settings • Press the CTD button in any setting interface to clear or restore settings. • Cleared settings will display as "--:--." 1.7 Default Settings • The last saved settings will display upon entering the setting interface. If no settings exist, "--:--" will be displayed.
- Page 6 2.4 Set OFF Time • Press the CYCLE button to switch to the lower row OFF. • Long press the HOUR and MINUTE buttons to set the desired time. 2.5 Return to ON Time • Press the CYCLE button again to return to the upper row ON setting.
- Page 7 3.2 Mode Switching Sequence: 1. TIME INTERFACE (OFF, no functions active) 2. CYCLE TIMED 3. CYCLE CONTINUOUS 4. CYCLE PERIOD 5. TIMED 6. Back to Time Interface (OFF) 3.3 Cycle Timed Mode Requires On-Off timing items & Cycle duration settings Example: ON-OFF Timing: 8:00AM ON～5:00PM OFF Cycle Duration:...
- Page 8 3.4 Cycle Continuous Mode Requries Cycle duration settings Example: 1 minute ON, 2 minutes OFF. Display : Currently in the ON eriod of the cycle, with 1minute remaining; the number changes every minute Current time is 8:20 CONTINUOUS AM, operating in CYCLE CONTINUOUS mode, with the CYCLE indicator flashing...
- Page 9 Press the HOUR button to set the hours and the MINUTE button to set the minutes, with long press for fast adjustment. The default display will show the last saved setting each time you enter. After setting, short press the CYCLE button to complete the setup and start the CYCLE PERIOD.
- Page 10 The CYCLE PERIOD mode will automatically exit 30 hours and 00 minutes after the cycle starts and return to the time display interface（See figure below） 3.6 Timed Mode Requries Cycle duration settings Example: Timed- 8:00AM ON~5:00PM OFF Example Display: Next The timer will turn off at 5:00 PM Operating in TIMED...
- Page 11 Function 4-Countdown Function Activate Countdown • Press and hold the CTD button for 2 seconds in the time interface or any working mode. The numbers blink. Press the HOUR button to set hours, and the MINUTE button Displays the to set minutes. Long current time (without press for fast adjustment the CYCLE character)
- Page 12 Countdown Operation： Example Display 1: After setting the countdown (time not 00:00), short press the CTD button to start the countdown immediately. Countdown remaining time 20 hours, product is ON, "CTD" blinks; the numbers change every Displays the minute current time Example Display 2: Countdown remaining 4 hours, product is OFF,...
- Page 13 Function 5-Always ON Function • Always ON can be used if the product is for regular socket use. • Press and hold the MINUTE button for 2 seconds in time interface or any CYCLE mode. • In CTD mode, first hold the CTD button to exit countdown mode.
- Page 14 C.WARRANTY -14-...
- Page 15 D.CONTACT US -15-...
