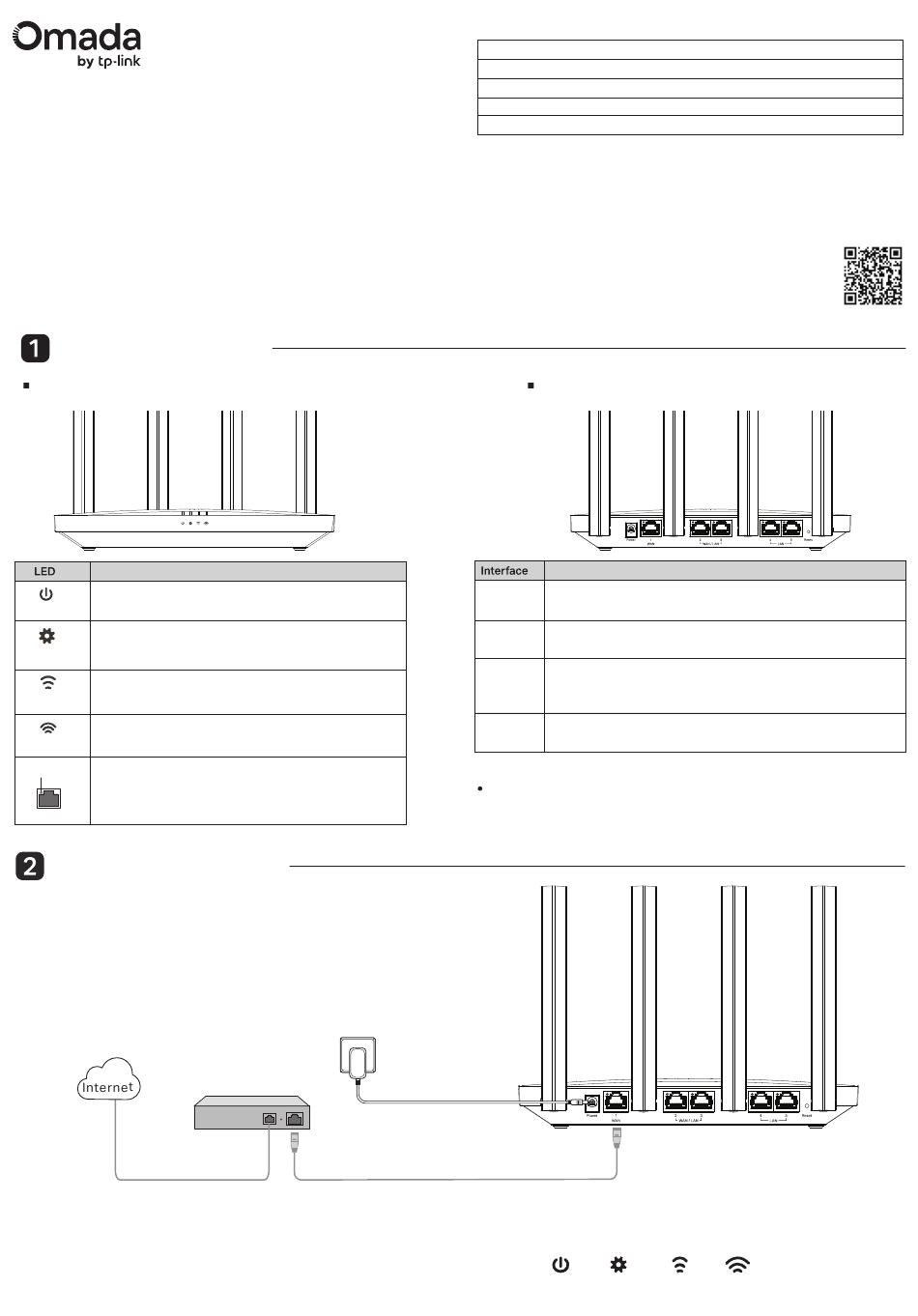

TP-Link Omada ER605W Installation Manual

Installation Guide
AC1200 Gigabit VPN Gateway
Images may differ from the actual product.
©2025 TP-Link 7100000328 REV2.0.2
Hardware Overview
Front Panel
Indication
On: The gateway is powered.
Power
Off: The gateway is powered off.
Flashing Slowly: System is running normally.
Flashing Quickly: The gateway is being reset.
System
On/Off: System is starting up or running abnormally.
On: 2.4 GHz wireless network is enabled.
Off: 2.4 GHz wireless network is disabled.
2.4 GHz Wi-Fi
On: 5 GHz wireless network is enabled.
5 GHz Wi-Fi Off: 5 GHz wireless network is disabled.
On: Running at 1000/100/10 Mbps, but no activity.
Port LED
Flashing: Running at 1000/100/10 Mbps, and transmitting or
receiving data.
Off: No device is connected to the corresponding port.
Hardware Connection
1 Connect the modem to the gateway's WAN Port 1 with
an Ethernet cable.
Note: To connect to the internet via another WAN port (port 2 or port 3),
configure your desired port to WAN, then connect the port to the
internet.
2 Use the charger provided in the packaging to power on
the gateway.
Modem
More Resources
Main Site https://www.omadanetworks.com/
Video Center https://support.omadanetworks.com/video/
Documents https://support.omadanetworks.com/document/
Product Support https://support.omadanetworks.com/product/
Technical Support https://support.omadanetworks.com/contact-support/
Warranty
For details on the warranty period, policy, and procedures,
visit https://support.omadanetworks.com/warranty-services.
Support
For technical support, user guides, and other information,
please visit https://support.omadanetworks.com/, or
simply scan the QR code.
Back Panel
Description
Power
Connect to the power outlet via the provided power adapter.
Socket
WAN
Gigabit WAN port.
(Port 1)
Gigabit WAN/LAN port.
WAN/LAN
By default, these are LAN ports that connect to local PCs or switches.
(Ports 2 & 3)
You can configure them as WAN ports on the management page.
LAN
Gigabit LAN ports.
(Ports 4 & 5)
Reset: Press and hold the button for 5 seconds, the system LED will
flash quickly, indicating the device is being reset to its factory default
settings.
3 Wait until the system LED flashes slowly and the Wi-Fi
LEDs turn solid, indicating the gateway is ready for setup.
Power System
On Flashing Slowly
2.4 GHz 5 GHz
On On
