Turtle Beach TBS-0111-01 Manual
Turtle Beach TBS-0111-01 Manual

Turtle Beach TBS-0111-01 Manual

Tactical audio controller
Hide thumbs Also See for TBS-0111-01:

Advertisement

Quick Links

Xbox One | PS4
| PC
TACTICAL AUDIO CONTROLLER
Elite Pro Tactical Audio Controller for
Xbox One, PS4
and PC

Advertisement

loading
Need help?

Need help?

Do you have a question about the TBS-0111-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Turtle Beach TBS-0111-01

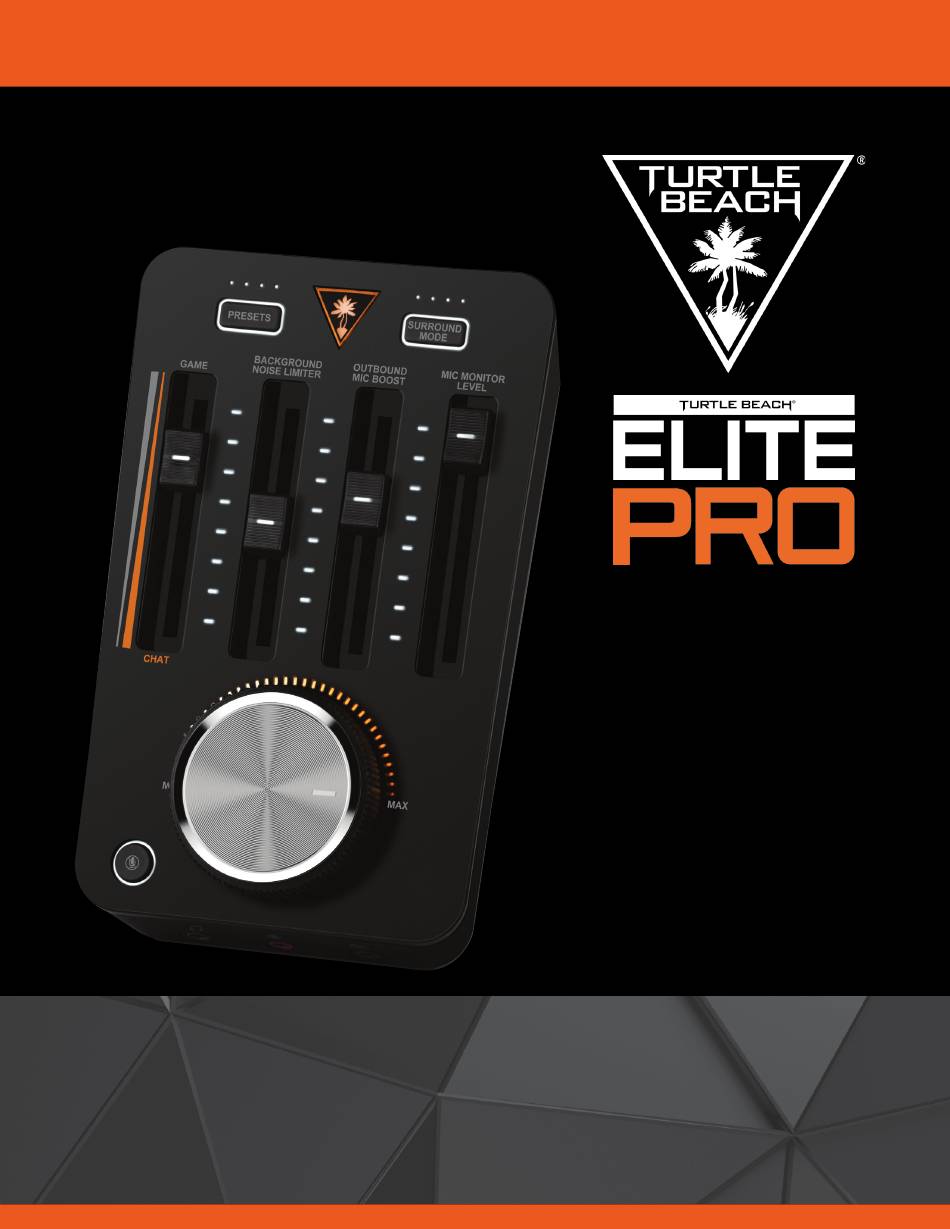

  • Page 1 Xbox One | PS4 | PC ™ TACTICAL AUDIO CONTROLLER Elite Pro Tactical Audio Controller for Xbox One, PS4 and PC ™...
  • Page 2 Table of Contents About the Elite Pro Tactical Audio Controller Standard Setup Xbox One Setup PC Setup Setup ™ Setup ™ Controls & Features Troubleshooting Tips Regulatory Compliance Statements Warranty Information...
  • Page 3 The Elite Pro T.A.C. is the most powerful audio controller designed for e-sports, combining cutting- edge audio technology like DTS Headphone:X 7.1 Surround Sound and Superhuman Hearing with ™ ™ Turtle Beach’s incredibly powerful chat and microphone tuning tools, giving eSports athletes everything they need to win. Video demonstrations at turtlebeach.com/tac Any questions? turtlebeach.com/support...
  • Page 4 Presets: Surround Mode: Adjust the sound of your game audio with Adjust your virtual surroundings Turtle Beach Signature Audio presets with DTS Headphone:X 7.1 Surround Sound modes Game/Chat Balance: Set the perfect balance of Game and Chat Audio so Mic Monitor Level: that you can hear your teammates while focusing on the game.
  • Page 5 Elite Pro Tactical Audio Controller Standard Headset Setup Tournament Noise Cancelling Mic Setup PC Setup Note: Tournament Noise Cancelling Microphone sold separately. The Tournament Noise Cancelling Microphone can only be used with the Tactical Audio Controller. Calibration of the background noise limiter is especially important when using the Noise Cancelling Microphone.
  • Page 6 Elite Pro Tactical Audio Controller Xbox One Setup Go to Table of Contents...
  • Page 7 Elite Pro Tactical Audio Controller PC Setup Note: If you are only being presented with an option for Turtle Beach Elite Chat in your playback devices then double check that the mode switch is set to PC/Mac and not PS.
  • Page 8 Elite Pro Tactical Audio Controller Setup ™ Go to Table of Contents...
  • Page 9 Elite Pro Tactical Audio Controller PS4™Pro and PS4™ (with Optical) Setup Note: If your volume feels quiet or is dropping out, double check that your mode switch is set to PS and you have “Output to Headphones” set to Chat Audio. If this was set to ‘ A ll Audio’ you would be sending both your game and chat sound over the TAC’s USB path rather than the game sound coming separately over the optical cable.
  • Page 10 Elite Pro Tactical Audio Controller PS4™ (without Optical) Setup Note: This setup uses the Digital optical Output of a TV. This audio output may need to be turned on or adjusted in the TV Settings, refer to the User Guide for your particular TV to do this. Go to Table of Contents...
  • Page 11 Working with Turtle Beach to further enhance this technology, DTS has created Surround Sound Modes to reproduce the sonic characteristics of rooms optimized for specific types of content. For each of the DTS Headphone:X Surround Sound modes, ®...
  • Page 12 DTS Headphone:X Surround Modes & Audio Presets I GAME MODE Signature Turtle Beach’s SIGNATURE SOUND: place yourself in the middle of the action and hear your games Sound just as the developers intended. Enter the warzone fully armed: feel your gun’s recoil hit your chest, experience the full force of Shooter explosions as you lead your squad to victory.
  • Page 13 Digital Optical Pass-Through Digital Optical Pass-Through Integrating the TAC with your Audio Receiver/Home Entertainment system is easy to do. The TAC can pass-through audio to the system you already have in place. Just connect your existing Digital Optical Cable to the TAC and use the included Digital Optical Cable to finish the circuit. Now if you want to play a game or watch a movie with friends there are no adjustments needed! DIGITAL OUT (OPTICAL)
  • Page 14 Auxiliary In Auxiliary In When repetitive Game Audio just isn’t cutting it, connect to a phone or tablet to listen to your favorite music through the TAC. The Aux In port will pass all audio through at full volume so make sure to control the level of your music from your mobile device or from the phone or tablet.
  • Page 15 Local Chat and Streaming Local Tournament Setup It can be frustrating dealing with chat lag and the limitations of on-line chat when setting up a local tournament. The TAC has you covered, connect however many TACs together as you need for lag- free high-quality chat.
  • Page 16 Tactical Audio Controller Programmability The TAC uses advanced Multipoint Control Unit (MCU) and Digital Signal Processor (DSP) firmware. From time to time Turtle Beach will release new updates to improve your user experience and even add new features. If you have any suggestions for improvements or new presets please let us know! Customize your audio presets and always make sure your TAC is running on the latest firmware.
  • Page 17 Troubleshooting Tips Elite Pro Tactical Audio Controller Issue Solution 1. Make sure the “Background Noise-Limiter” Fader is NOT at the max setting. This Fader should be in the lower-half when used in a home environment. 2. Make sure the Console switch on the back of the TAC is set to the platform you are gaming on.
  • Page 18 Regulatory Compliance Statements for the Turtle Beach Elite Pro Tactical Audio Controller Model (Elite Pro T.A.C) Federal Communications Commission (FCC) Compliance Notices Class B Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules.
  • Page 19 European Union and European Fair Trade Association (EFTA) Regulatory Compliance Declaration of Conformity Marking by this symbol: Indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards: Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 (T-Mark License).
  • Page 20 WARRANTY SERVICE: In the USA and CANADA Warranty Service is provided by our Turtle Beach USA offices and in all other Countries it is provided by our local International Distributors when available. Refurbished/Recertified products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each vendor’s policy.
  • Page 21 EXCLUSIONS FROM LIMITED WARRANTY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - is modified or tampered with;...

This manual is also suitable for:

Elite pro
