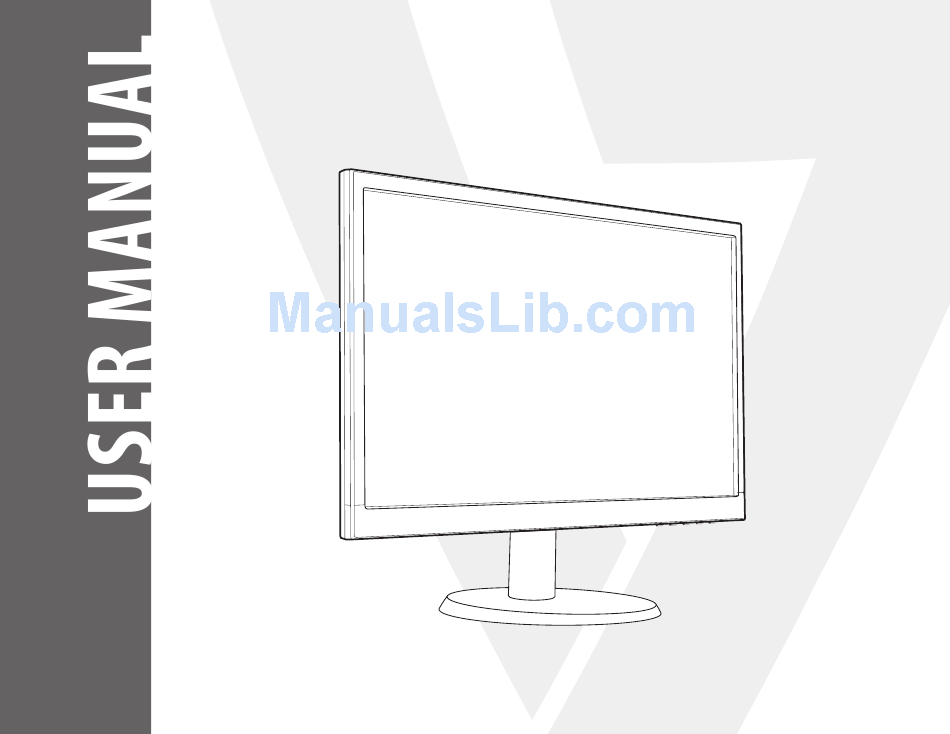

  • Page 1 24" Class Slim HD Widescreen Monitor L238DPH...

  • Page 2: Getting Started

    1 Getting Started Package includes Installation 2 Control Panel/ Back Panel Control Panel Back Panel 3 On Screen Display 4 Technical Specs 5 Care & Maintenance 6 Troubleshooting No Power Power on but no screen image Wrong or Abnormal Colors 7 Safety info &...
  • Page 3 Package includes • AC Power Cord • VGA Cable • Audio cable • Cable holder • Quick start guide AC Power Cord VGA Cable Audio cable Cable holder...

  • Page 4: Installation

    Installation 1. Slide cable holder onto post 2. Screw base into post 3. Connect video cable, Connect power cord, Connect Audio cable HDMI POWER DISPLAYPORT 4. Power on computer and monitor...

  • Page 5: Control Panel

    Control Panel LED Indicator Power On/Off Confirm Select Scroll Up/Increase Scroll Down/Decrease OSD Menu On/Off Back Panel Earphone Output Audio Input VGA Port HDMI Port Power Cable DVI Port Display Port...
  • Page 6 Using On Screen Display (OSD) Functions Display main menu Exit from OSD menu Manual adjust mode select for VGA, DVI, HDMI, DisplayPort, Auto mode Select the desired item when in OSD menu When not in OSD menu, directly enters Contrast/Brightness menu Select the desired item when in OSD menu When not in OSD menu, directly enters Picture mode Recall both of Contrast and Brightness (when not in OSD menu)
  • Page 7 Short Cuts Function from the button(s) To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen. Auto Image Adjust To manually adjust the Contrast, Brightness, DCR, ECO and OD of screen image. Contrast: To adjust the foreground white level of screen image. increase contrast, decrease contrast.
  • Page 8 Short Cuts Function from the button(s) Picture mode: Provides an optimum display environment depending on the contents displayed. It contains 5 user-selectable presets. • Standard is for general windows environment and monitor default setting. • Game optimized for PC game environment •...

  • Page 9: Technical Specification

    Technical Specification LCD Panel 60.4 cm (23.8”) TFT (with LED back light) Energy Star Power VESA DPMS compatible Management Off Mode, < 0.5 W Displayable Full HD 1920 x 1080 max. Resolution Vertical Frequency 60Hz max. Pixel Dimension 0.2745 x 0.2745 mm LCD Display Color 16.7M Tilt...
  • Page 10 Care • Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. • Put your monitor in a well ventilated area. • Do not place any heavy things on top of your monitor •...
  • Page 11 No Power • Make sure A/C power cord is securely inserted to both the AC-INLET socket on the monitor and wall outlet. • Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage. •...

  • Page 12: Safety Precautions

    Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. WARNINGS •...
