1. Prepare tools (for 800W12VDC inverter):
Battery: 80AH 12V (recommended to use a battery system of not less than 80A)
Cables: 1 Sets of 7AWG Cables (provided by the manufacturer)
2.Installation steps

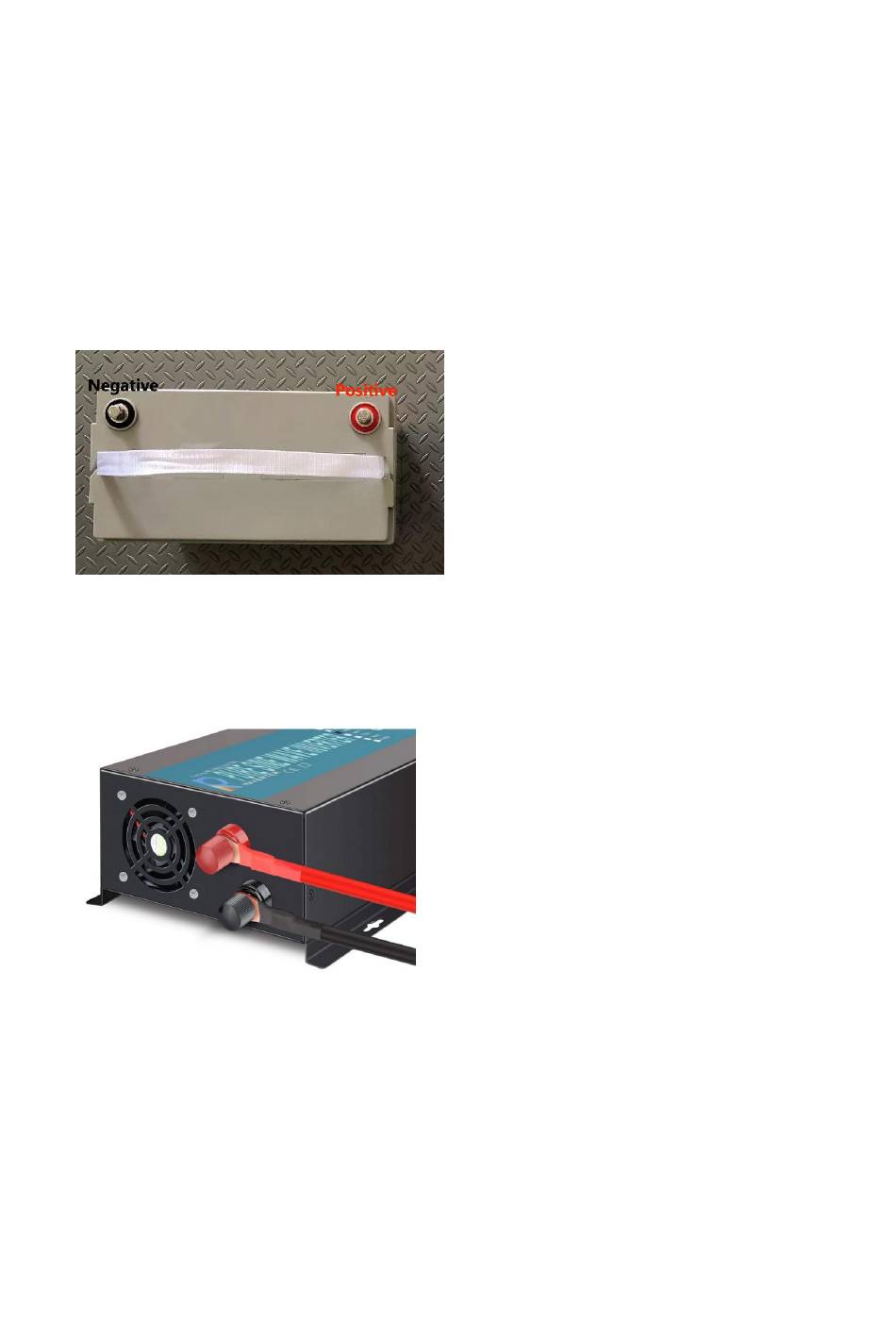

a. Confirm the positive and negative poles of the battery, install the cables and tighten the
screws.
b.Find the positive and negative poles of the inverter input terminals, connect battery+
to inverter +, battery- to inverter - and hen tighten the screws.
Red: positive, black : negative
c.Use a multimeter to confirm the inverter input voltage.Make sure the voltage reaches
about 12V before turning on the inverter
Installation and usage instructions
Advertisement
Related Manuals for WZRELB RBP80012VCRT
Summary of Contents for WZRELB RBP80012VCRT
- Page 1 Installation and usage instructions 1. Prepare tools (for 800W12VDC inverter): Battery: 80AH 12V (recommended to use a battery system of not less than 80A) Cables: 1 Sets of 7AWG Cables (provided by the manufacturer) 2.Installation steps a. Confirm the positive and negative poles of the battery, install the cables and tighten the screws.
- Page 2 d. After turning on the inverter, confirm whether the LED display normally displays the input and output voltages. Notes: a.Please use the standard battery cables which we sent, and the spare fuses sent with the package are just used when the original ones are burned by accident. If any missing parts, please contact with me freely.
- Page 3 4) Please do not overload. Loads are divided into resistive loads and inductive loads .If need the inverter to run the resistive load (like laptop, TV, electric cooker,LED light), please choose the inverter with continuous power higher than the appliance's rated power. If use microwaves,water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If wanna to power up a refrigerator, we suggest you use 10 times higher power inverter...
